Litecraft BeamX.7 User Manual

Led spotlight with rgbw colour mixing
Hide thumbs Also See for BeamX.7:
Table of Contents

Advertisement

Quick Links

Bedienungsanleitung
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BeamX.7 and is the answer not in the manual?

Questions and answers

Related Manuals for Litecraft BeamX.7

Summary of Contents for Litecraft BeamX.7

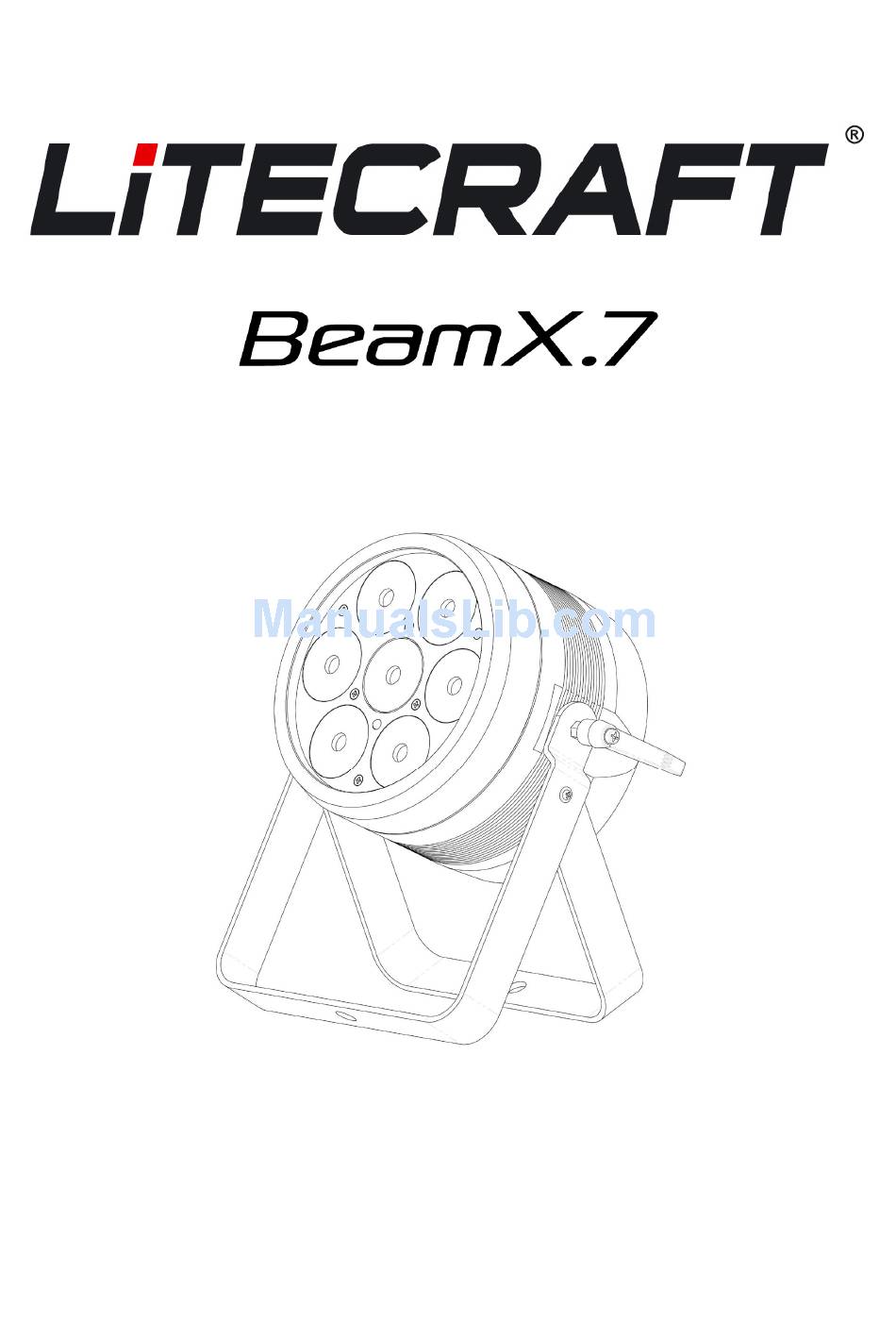

  • Page 1 Bedienungsanleitung User Manual...

  • Page 2: Table Of Contents

    WIRELESS DMX-BETRIEB DISPLAY-MODUS DMX-MODUS PHOTOMETRISCHE DATEN TECHNISCHE SPEZIFIKATIONEN Thank you for purchasing this LITECRAFT product. For your own safety, please read the instruction manual carefully before turn on the product for the first time. CONTENT SAFETY NOTES DESIGNATED USE INSTALLATION...

  • Page 3: Safety Notes

    SAFETY NOTES Each person which is responsible for the installation, the use or service of this unit must be: • qualified • has to follow the instructions in this manual. • WARNING! Be careful when using the device. You risk an electrical shock from high voltage, if you touch the wires! The device has left our company in manufacturer proofed state.

  • Page 4: Designated Use

    DESIGNATED USE This product is a spotlight, which is designed only for professional use on stages, discotheques, theatres, etc. This product is approved for mains connection up to 230 VAC and designed for indoor use. Please avoid any kind of shocks and outer actions during its installation or transportation. •...

  • Page 5: Installation

    INSTALLATION There are specific regulations like DGUV V17/18 (old BGV C1) or country related regulations which need to • attend during the installation. The installation has to be handled by skilled persons only! Suspension device hast to be built and calculated in order to handle up to 10 times its specific load limit over •...

  • Page 6: Electrical Connection

    ELECTRICAL CONNECTION Connection to the mains is only allowed by skilled persons. • Before connecting the fixture to the mains, assure that the specifications are corresponding. • Electrical grounding has to be used in the whole installation! • ATTENTION! Installation has to be approved by an authorized person before first operation! CLEANING AND MAINTENANCE Installer has to take care of all safety and machinery installations are approved by skilled persons at least once •...

  • Page 7: Operation

    OPERATION This device has several DMX- and Stand-Alone-Modes. In DMX-mode, multiple devices can be connected and • controlled by a controller. The device accepts the settings of the DMX-controller, as soon as the corresponding start address is set. Slave mode: •...
  • Page 8 Yoke IR-Sensor C. Locking Screw D. CRMX-Input DMX-Input 5 pin DMX-Output 5 pin G. Safety Attachment Point H. Menu-Button Up-Button Mains-Input Down-Button Mains-Output M. Enter-Button N. LC-Display...

  • Page 9: Wireless Dmx-Mode

    WIRELESS DMX-MODE The unit is equipped with a connector for an optional LumenRadio CRMX Wireless DMX-module. The module is compatible to CRMX transmitter units from LumenRadio and Wireless Solutions transmitter units version G3 and For the use with CRMX the LumenRadio CRMX Wireless DMX-module needs to be plugged to the backside USB- connector and the unit must be set to one of the five DMX-modes.

  • Page 10: Display-Mode

    DISPLAY-MODE display function DEF. SET DEF. SET reset all parameter to factory defaults <***> *** = <NO> <YES> DMX Addr DMX Addr display the DMX-adress <***> (2 Ch = <001-511>) *** = DMX-adress (3 Ch = <001-510>) (4 Ch = <001-509>) (5 Ch = <001-508>) (10 Ch = <001-503>) (default setting = 1)
  • Page 11 ColProgr ColProgr 31 pre-programmed chasers available <**> (deactivation of all pre-programmed ** = chasers by menu Master/Slave!) <00-31> Speed setting speed in 30 steps for the pre- <**> programmed chaser available ** = <00-30> WhiteBal WhiteBal setting white balance <Red> (default setting = <***>...

  • Page 12: Dmx-Mode

    DMX-MODE mode display function 2 channel < 2 Ch> ch1 = color macro mode 000-255 stepless rgb color mix ch2 = master dimmer 000-255 stepless brightness 3 channel < 3 Ch> ch1 = dimmer red mode 000-255 stepless brightness red ch2 = dimmer green 000-255 stepless brightness green ch3 = dimmer blue...
  • Page 13 000-020 mode set on display 021-049 off = dimmer linear 050-099 1 = dimmer delayed 1 100-149 2 = dimmer delayed 2 150-199 3 = dimmer delayed 3 200-255 4 = dimmer delayed 4 ch10= master dimmer 000-255 stepless brightness...

  • Page 14: Beam Specs

    BEAM SPECS 4.690 lx 670 lx 230 lx green 11.050 lx 1.860 lx 273 lx blue 450 lx 70 lx 22 lx white 10.190 lx 1.450 lx 518 lx rgbw 24.580 lx 3.710 lx 1.374 lx TECHNICAL SPECIFICATION voltage: 100-260 V 50-60 Hz •...
