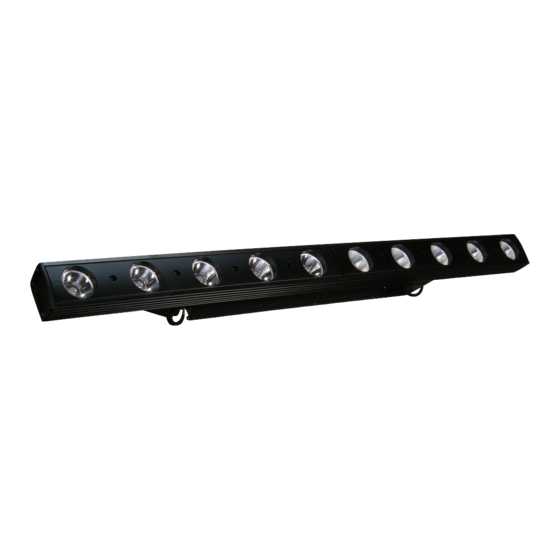

Summary of Contents for Litecraft SUNX.10

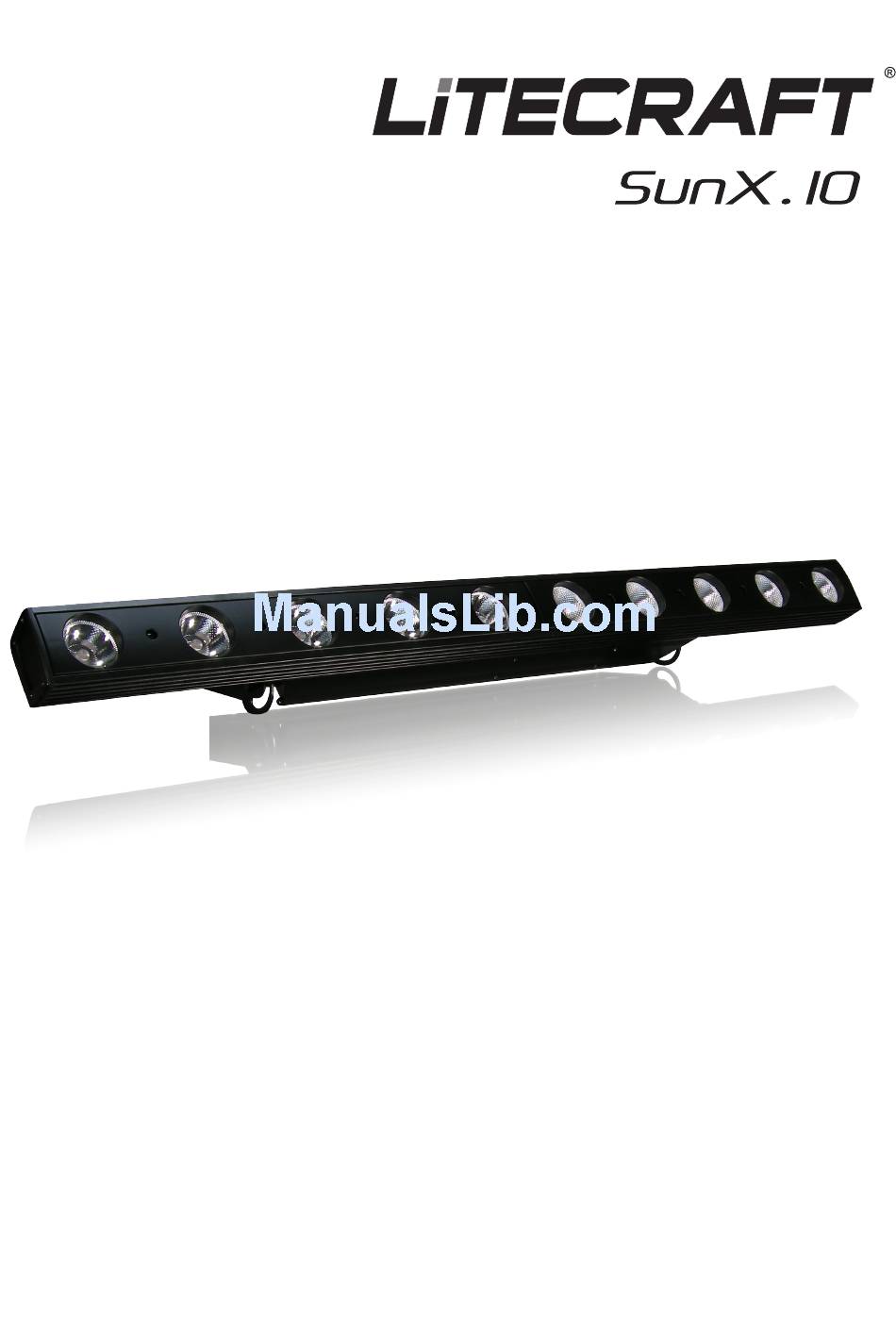

  • Page 1 Bedienungsanleitung User Manual...

  • Page 2: Safety Notes

    RISK TO HEALTH! Never look directly into the light source. Especially epileptics Safety Notes risk an epileptic shock! Disconnect the unit from the AC mains when not in use or when cleaning it. • Defects caused by modifications of the device by unqualified handling or an unqualified person are not covered by the •...

  • Page 3: Installation

    with approved connective can be used. Attach the safety chain to its designated opening and attach it to the truss Installation system or a similar and safe attachment point. Assure to close the fasteners as specified. • To adjust the angle of the fixture open the locking screw, set the fixure in its position and close it by hand.

  • Page 4: Electrical Connection

    Electrical Connection Operation • Connection to the mains is only allowed by skilled persons. • This device has several DMX- and Stand-Alone-Modes. In • Before connecting the fixture to the mains, assure that the- DMX-mode, multiple devices can be connected and controlled specifications are corresponding.
  • Page 5 FUSE MENU ENTER DOWM DMX OU T DMX IN DMX OU T DMX IN POWER I N POWER OUT Yoke Enter-Button Menu-Button Down-Button OLED-Display DMX-Input 3 pin Up-Button DMX-Output 3 pin Locking Screw DMX-Input 5 pin Mains-Input DMX-Output 5 pin Mains-Output...

  • Page 6: Display Mode

    Display-Mode display function LITECRAFT SunX.10 shows the software version direct after SunX.10 - V *.* V *.** switching on the unit *.** = software-version (this messages appears after 3 seconds automaticly) <DMX Adress> <DMX Adress> unit is in slave mode and is controlled by <***>...
  • Page 7 display function DMX Address DMX Address display the DMX-adress <***> <***> (5 Ch = <001-508>) *** = DMX-adress (10 Ch = <001-503>) (15 Ch = <001-498>) (default setting = 1) DMX Channel Channel setting DMX-channel mode <****> **** = (description of modes in next chart) <5 Ch>...
  • Page 8 DMX-Mode mode display function 5 channel mode Channel ch1 = master dimmer < 5 Ch> 000-255 stepless brightness ch2 = flash rate 000-010 no function 011-255 flash rate (s -> f) ch3 = programms 000-010 no function 011-038 programm auto 1 039-066 programm auto 2 067-094 programm auto 3 095-122 programm auto 4...
  • Page 9 mode display function 15 channel mode Channel ch1 = dimmer LED 1 < 15 Ch> 000-255 stepless brightness ch2 = dimmer LED 2 000-255 stepless brightness ch3 = dimmer LED 3 000-255 stepless brightness ch4 = dimmer LED 4 000-255 stepless brightness ch5 = dimmer LED 5 000-255 stepless brightness ch6 = dimmer LED 6...

  • Page 10: Beam Specs

    Beam Specs beam spread chart distance (m) Farbe 10 m Weiß 16.874 lx 1.875 lx 675 lx 345 lx 169 lx beam spread chart distance (m) color 10 m white 57.725 lx 6.414 lx 2.309 lx 1.178 lx 578 lx...

  • Page 11: Technical Specification

    Technical Specification voltage: 100-240 V 50/60 Hz DMX-channels: 5 / 10 / 15 power consumption: 0,5 A @ 230 V fuse: T2 A / 250 V ip rating: IP 20 measurements: 99,2 x 6,9 x 19,6 cm weight: 4,9 kg...
