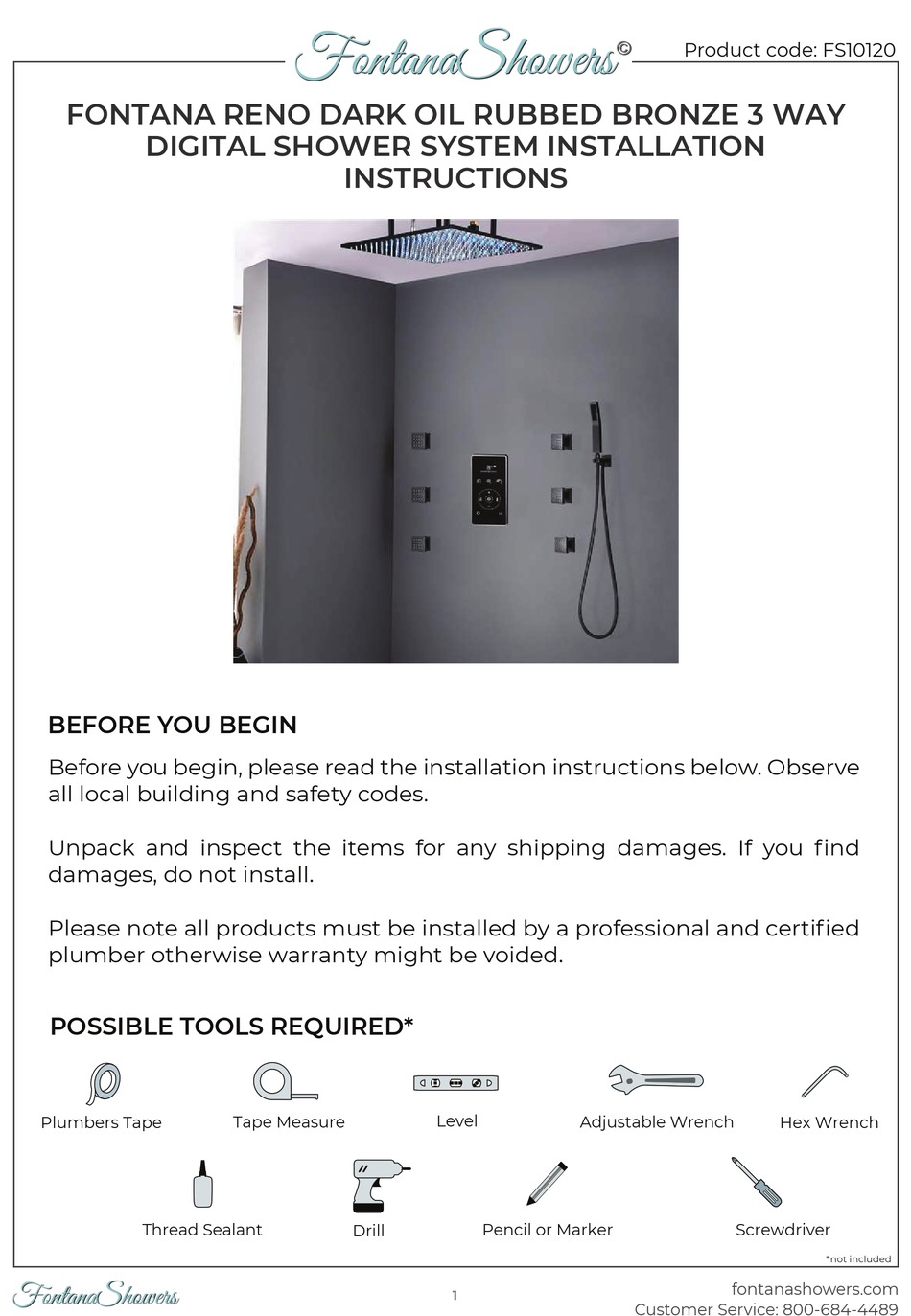

FontanaShowers
FontanaShowers
©
©
Product code: FS10120

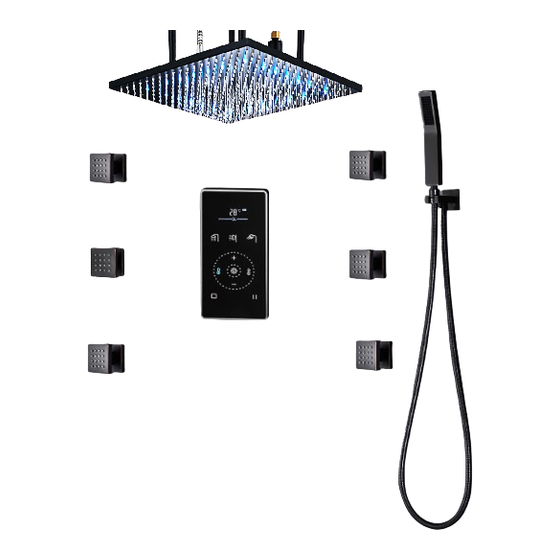

FONTANA RENO DARK OIL RUBBED BRONZE 3 WAY
DIGITAL SHOWER SYSTEM INSTALLATION
INSTRUCTIONS
BEFORE YOU BEGIN
Before you begin, please read the installation instructions below. Observe
all local building and safety codes.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
Please note all products must be installed by a professional and certified
plumber otherwise warranty might be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanashowers.com
FontanaShowers
FontanaShowers
1
Customer Service: 800-684-4489
Advertisement
Related Manuals for Fontana Showers FS10120
Summary of Contents for Fontana Showers FS10120
- Page 1 FontanaShowers FontanaShowers © © Product code: FS10120 FONTANA RENO DARK OIL RUBBED BRONZE 3 WAY DIGITAL SHOWER SYSTEM INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the items for any shipping damages. If you find damages, do not install.
- Page 2 FontanaShowers FontanaShowers © © Shower Head Installations Instruction Shower Head Installations Instruction Parts: Step 1: Mark the 4 drilling positions , then use the Ø6mm drill to drill holes on the wall according to the marked hole position. Step 3: Inset the plug (D) into the hole, hold the fix base (C) use the tapping screw (D) through fix base(C) holes, tighten the tapping screw (D) tighten the top shower fixed bar(E) and the inlet hose (F) with the fix base (C)
- Page 3 FontanaShowers FontanaShowers © © Step 5: Fixed the top shower with the top shower fixed bar (E) , then connect with the inlet hose (F) . 2 Inlets For RainShower are provided in big shower heads so the water disperses equally throughout the showerhead.
- Page 4 FontanaShowers FontanaShowers © © Body Jets Spray Installations Instruction Step 1: Attach the escutcheon to the Step 2: Apply teflon tape to threaded body spray. tail pipe of the body spray Step 3: Press the escutcheon against Step 4: Screw the Body spray tightly the finished wall into the female of water Supply Pressure Balancing Loop:...
- Page 5 FontanaShowers FontanaShowers © © Hand-Held Shower Installations Instructions Step 1 Step 2 Step 3 Hand Shower Outlet Installation • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow. Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting.
- Page 6 FontanaShowers FontanaShowers © © Digital Mixer 3 way Installations Instructions Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
- Page 7 FontanaShowers FontanaShowers © © Step 7 Step 8 Step 9 Step 10 fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
- Page 8 FontanaShowers FontanaShowers © © Step 11 Step 12 Step 13 1. Hand Shower's Mixer Water Outlet 1. Fly-Shuttle Switch 2. Hot Water Inlet 2. Setting 3. Cold Water Inlet 3. Spray Button 4 & 5. The Control Cable 4. LCD Display 6.
- Page 9 FontanaShowers FontanaShowers © © Features Touch Control Panel - With The Touch Control Panel, Easy To Use. Digital Thermostat - Keep Outlet Water TEMP Stable, The TEMP Accuracy Within ±1°C. Overheat Protection - When The Cold Water Cut Off And Leads The Water TEMP Over 49°C, The System Will Stop The Water Outlet In 2 Seconds To Protect The User From Hot Water.
- Page 10 FontanaShowers FontanaShowers © © Hand Shower And Head Shower Switch When The System Is On, Press Spray Button On The Panel To Switch The Water Outlet Way Between The Shower Head, Hand Shower And Body Jet, Connections Are Optional, Can Connect To The Desired Shower Function. When Cursor And Frame Move To The Shower Head Icon, The Water Flows For Hand Shower Head.
- Page 11 FontanaShowers FontanaShowers © © Working Time Setting When System Is On, Keep Pressing Setting Button For 3 Seconds, System Will Enter Into The Working Time Setting Icon Time Will Be Shown On The LCD Panel. Rotating The Fly Shuttle Switch To Adjust The Working Time. The Time Range Is 15-60 Minutes. You Can Hear A Buzzer Sound For Each Adjusting.
- Page 12 FontanaShowers FontanaShowers © © Step 14 (Battery Installation) Step 15 Step 16 Battery Installation 1. Loose The Screws On The Battery Cover And Take It Off. 2. Putting 4 Pcs Rechargeable Batteries Into The Battery Slot Of The Host Box. Attention: When Putting The Battery Into The Host Box, You Need To Identify The Anode And The Cathode.
- Page 13 FontanaShowers FontanaShowers © © Step 17 (Installation Of Control Panel) Step 18 Step 19 Step 20 Installation Of The Control Panel 1. Build The Control Panel Into The Shower Panel Step 1: Open A Hole (6.7" X 3.7") On The Shower Panel, Putting Some Glass Cement Around The Back Of The Control Panel And Fit It In The Hole Of The Shower Panel As The Picture Shows.
- Page 14 FontanaShowers FontanaShowers © © 1. Connect The G1/2" Hot And Cold Water Inlet Pipes To The Host Box, Tighten It And Make Sure Connection Is Well Sealed (As The Picture Showed). 2. Connect The G1/2" Water Inlet Pipe Of The Faucet To The Water Outlet Pipe Of The Host Box, Tighten It And Make Sure Connection Is Well Seated (As The Picture Is Shown).
- Page 15 FontanaShowers FontanaShowers © © Step 5: Make Sure The Control Panel Bracket Is Concave The Wall Surface With 0.5-1mm Difference. Step 6: Connect The Control Cable Between The Host Box And The Control Panel, Put Some Silicon On The Back Case Of The Control Panel And Put It On The Bracket Inside The Wall To Fasten It.
-
Page 16: General Information
FontanaShowers FontanaShowers © © General Information All products manufactured and supplied by Fontana are safe and comply to legislative requirements. Providing they are installed correctly and receive regular maintenance in accordance with these instructions your user experience will not be affected Care &...
