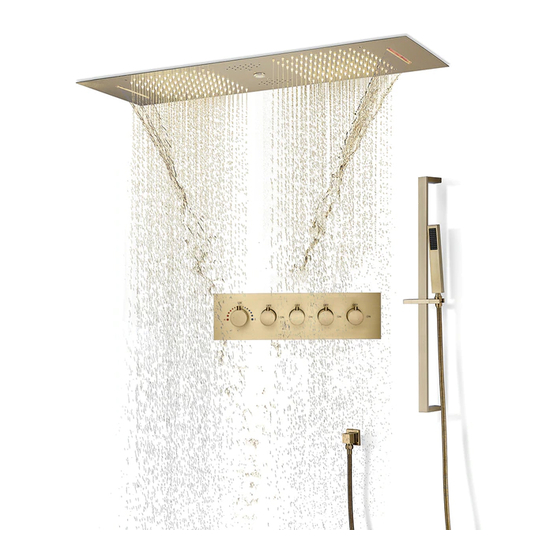

Remote controlled gold thermostatic led musical rainfall shower system with hand shower

Advertisement

ANDRIA REMOTE CONTROLLED GOLD THERMOSTATIC LED
MUSICAL RAINFALL SHOWER SYSTEM WITH HAND SHOWER

PRIOR TO INSTALLATION

Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Thread Sealant
FontanaShowers
FontanaShowers
FontanaShowers
FontanaShowers
INSTALLATION INSTRUCTIONS
Tape Measure
Drill
Level
Adjustable Wrench
Pencil or Marker
1
©
©
Product code: FS145003
Hex Wrench
Screwdriver
fontanashowers.com
Customer Service: 800-684-4489
*not included
