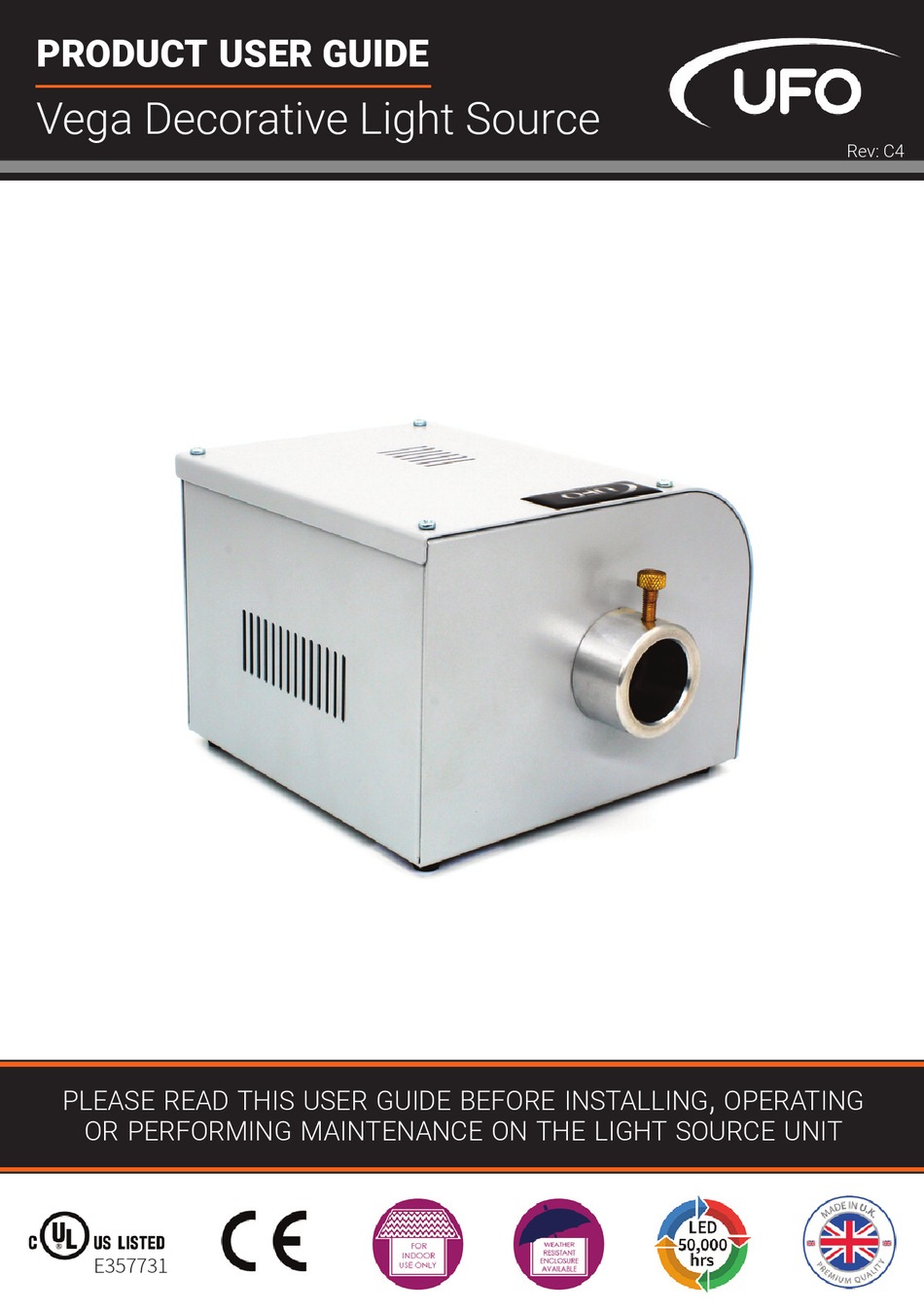

- Page 1 PRODUCT USER GUIDE Vega Decorative Light Source Rev: C4 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE LIGHT SOURCE UNIT E357731...

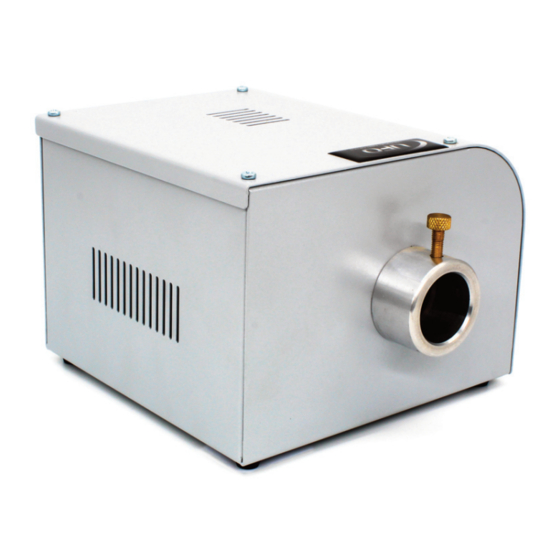

- Page 2 UFO Vega CM / UFO Vega TM UFO Vega MCM / UFO Vega MTM UFO Vega CDMX / UFO Vega TDMX UFO Vega C 0-10V / UFO Vega T 0-10V IMPORTANT This product must be installed in accordance with the applicable installation code, by a person familiar with the construction and operation of the product, and the hazards involved.
-
Page 3: Installation
The driver caters for UK/European/other mains supplies using the relevant power cord supplied. VEGA DMX / 0-10 V VEGA MCM / MTM VEGA CM / TM CONNECTION VEGA CM TM AND MTM MODELS ONLY There are 2 connections required – the fibre port and the mains supply cable. The fibre port should be connected first. - Page 4 TA (male). The pin out details for the plugs are shown below. Either socket may be used as DMX in or DMX out. Note: UFO can supply converters for these light sources to allow them to be interfaced to standard 3 pin XLR connectors or RJ45 connectors.
- Page 5 TA (male). The pin out details for these plugs are shown below. Either socket may be used as 0-10V IN or 0-10V OUT Note: UFO can supply converters for these light sources to allow them to be interfaced to standard 3 pin XLR connectors or RJ45 connectors.
-
Page 6: Operation
VEGA CM TM AND MTM MODELS ONLY The Vega CM (colour wheel) & Vega TM (twinkle wheel) have manual speed control on the decorative motor. On these versions the light output is set to maximum and cannot be dimmed. The Vega MCM & Vega MTM have manual speed control on the decorative motor and also manual dimming control of the LED. - Page 7 Colour wheel Slow to fast rotation clockwise (approx 130189 speed clockwise 0.3 rpm slowest to 7.5 rpm fastest) Colour wheel Fast to slow rotation counter clockwise 190255 speed ctr clkwse (approx 0.3 rpm slowest to 7.5 rpm fastest) UFO LIGHTING...
- Page 8 OPERATION NOTES ON POWERING UP THE VEGA CDMX LIGHT SOURCE 1. If internal DIP switch 10 is OFF, the wheel will find its reference point and stop on colour 1 (white). 2. If internal DIP switch 10 is ON, the wheel will find its reference point then rotate continuously counter clockwise at 7.5 rpm.
- Page 9 2.92V Colour 3 (green) Colour wheel 3.3V Colour 2 (yellow) Colour wheel 3.56V Colour 1 (white) Colour wheel 4.05V Slow to fast clockwise* Colour wheel 6.12V Fast counter clockwise* Note: For twinkle wheel control use the values marked UFO LIGHTING...
-
Page 10: Maintenance
MAINTENANCE MAINTENANCE LOG Date Maintenance Undertaken Note: A record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. VEGA USER GUIDE... -
Page 11: Troubleshooting
Check and increase dimmer manually or by DMX or 010V Poor light settings as appropriate control output on fibre LED driver failure Contact UFO ADDITIONAL PROCEDURES FOR MANUAL DIMMING MODELS Problem Possible Cause(s) Remedy Dimming control at minimum Adjust brightness on dimmer Unit is dead –... - Page 12 Dip switch no. 10 not switched Remove cover and switch dip wheel not switch no. 10 to on turning Driver circuit or motor failure Contact UFO ADDITIONAL PROCEDURES FOR DECORATIVE DMX MODELS Problem Possible Cause(s) Remedy Remove cover and set dip switch no. 10 Dip switch no.
-
Page 13: Technical Specification
[specific models only] LED Life 50,000 hours typical 3000°K 82 (typical) / 4000°K 82 (typical) Colour Temperature 3000°K or 4000°K Material Aluminium Finish Grey Dimensions (L x W x H) / Weight 160mm x 157mm x 120mm / 1.35kg UFO LIGHTING... - Page 14 NOTES VEGA USER GUIDE...
- Page 15 NOTES UFO LIGHTING...
- Page 16 United Kingdom • United States • Germany • Europe • Universal Fibre Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Andreasstraße 20 TD12 4DT Sarasota FL34234 93059 Regensburg Deutschland +44 (0)1890 883416...
