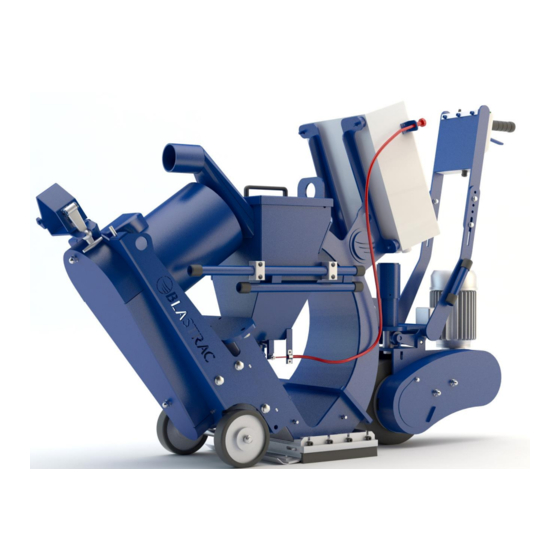

- Page 1 Original instructions OPERATING INSTRUCTIONS 1-10DPS75 MKII VERSION 2.2...
- Page 2 Inspection comments Inspection before initial operation on: __________________________________________ __________________________________________ Date of initial operation: __________________________________________ Serial number & Year of manufacture: __________________________ _____________ Recurring inspections / maintenance log Date / Hour counter Findings Repairs / Cleaning Test *Competent person.
- Page 3 Index Inspection comments 1. Introduction 2. Machine description 3. Safety Work area safety Electrical safety Personal safety Machine safety Maintenance safety Shot / steel blasting safety Dust collector safety Transport safety Signs on the machine 4. Before operation Checkpoints of electrical safety Checkpoints of machine safety Control box Drive control...
-
Page 4: Machine Description
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Blastrac BV offers a course on the use of the machine in order to make the operating and maintenance personnel familiar with all elements of the machine. -
Page 5: Work Area Safety
Any damage to the electric cables and/or electrical components is not permitted. d) If the power supply cable is damaged, it must be replaced immediately. Only use original Blastrac parts. e) The voltage on the identification plate must comply with the power supply. -
Page 6: Machine Safety General
If the length of the brushes is, due to wear, less than 5mm or they are extremely deformed, the brushes have to be replaced. Check the Service Manual for the order numbers. All repair work has to be done by qualified Blastrac personnel, this guarantees a safe and reliable machine. -
Page 7: Maintenance Safety
Dustcollector safety a) Always use a Blastrac dust cleaner to ensure a dust-free operation of the machine and clean air at the workspace. Also the airflow helps to cool the machine and prevents overheating. - Page 8 d) Pay attention that the drive unit does not turn away during lifting of the machine. Hold on to the steering handle until the machine is of the ground. e) When lifting the machine from the ground, always use the lowest lifting speed. The cables must first be tensioned at this speed;...
- Page 9 Signs on the machine The following stickers are placed on the machine. Meanings of these symbols are: Wear a dust mask class FFP3 or ! Danger Hazardous voltage in motor higher. even when solid state controller is OFF. Disconnect main power before servicing motor, controller or associated wiring.
-
Page 10: Before Operation
4. Before operation Before using the machine it is of great importance to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Checkpoints power supply Use only extension cables for extending the main cable that are sized and marked in accordance with ... -
Page 11: Drive Control
1. Ammeter This meter shows the power consumption of the blastmotor in ampere. The ammeter indicates the blast cleaning load onto the surface. (15 amp. Max.) 2. Hour counter Shows the number of actual working hours performed by the blastwheel. Useful for maintaining a proper maintenance schedule. - Page 12 Connecting the drive motor to the traction wheel Make sure the magnetic !WARNING! valve is CLOSED. Use only 1 finger to press the button of the Make sure the Blast quick release pin, and motor is OFF. keep applying pressure. Set the drive speed to Use your other hand to the lowest possible...
-
Page 13: Abrasive Sealing
The abrasive valve Between the abrasive storage hopper and the feed spout there is a valve incorporating a permanent magnet in order to control the abrasive flow towards the blastwheel. Any change in the opening of the magnetic valve causes the amount of abrasive fed to the blastwheel to change. The change in the abrasive fed can be read from the ammeter. -
Page 14: Operation
5. Operation During operating the 1-10DPS, the following additional safety instructions must be followed closely. Before switching on the machine make sure that no-one can be endangered when the machine starts up. Make sure that no vehicles, such as forklift trucks and other equipment run over the electric cable and the dust hose. -
Page 15: Switching Off The Machine
Operation Carry out blasting in parallel tracks in such way that the dust hose and electric cable do not become twisted. The next figure shows the recommended blast paths leading away from the dust collector. Dust collector Dust hose and electric cable Blast cleaning machine Make sure that no vehicles, such as forklifts, trucks and other equipment run over the electric cable and the... - Page 16 The blast pattern Abrasive leaving the blast wheel blades is not thrown in all directions. Scatter is restricted to an angle of about 50°. This is achieved through the use of a control cage which surrounds the impeller. The position of the window in the control cage determines the blast pattern.
-
Page 17: Maintenance
Remove the abrasive out of the abrasive storage hopper. All repair work must to be done by qualified Blastrac personnel, this to guarantee a safe and reliable machine. Any guarantee on the machine is expired when: Non original Blastrac parts have been used ... - Page 18 Screws, bolts etc. that have been removed must be replaced with those of the same quality, strength, material and design. Secure the maintenance area if necessary. Changing the liners Loosen the press bolt of the top liner and remove the cover ( 9 ). ...
- Page 19 Changing the tune-up kit The tune-up kit consists of the blastwheel, the cage and a bolt. (8.1 + 8.2 + 8.3) Use the hardened M8x35 + Spring washer (8.3) which are provided in the tune-up kit. Remove the feed spout ...
-
Page 20: V-Belt Tension
The V-belts The V-belt drives are designed for the installed driving power. To force a higher output through an excessive high tension of the V-belts will result in broken belts, damage to the bearings and causes loss of the total efficiency. - Page 21 6.6 The chain drive A chain drive needs relatively little maintenance when the correct chain is selected, when it is mounted correctly and, in this case of application, is not lubricated. The drive chain is protected by a chain guard. The chain guard prevents excessive contamination and prevents accidents.
- Page 22 The Blastrac blast cleaning machines are designed and built to operate with Blastrac abrasive. Blastrac abrasive has a very high quality and has the rebouncing ability required for the efficient use of the machine. The selection of abrasive is very important since this is the material to carry out the surface treatment.
-
Page 23: Troubleshooting
Abrasive loss on the Incorrect height adjustment of the Adjust the magnetic seals. surface or escaping magnetic seals. abrasive at the blast head Worn magnetic seals. Replace the magnetic seals. Poor abrasive quality. Contact Blastrac. Worn tune-up kit. Replace the tune-up kit. - Page 24 Check and clean the dust hose Ripped or damaged dust hose Replace dust hose Excessive wear in blast Wrong abrasive. Contact Blastrac. housing and rebound plenum The thrown abrasive blasts the housing Incorrect setting of the control cage and not the surface to be blasted. Adjust the blast pattern.
-
Page 25: Technical Data
75 mm Ø Contact Blastrac BV we will assist you with a Suitable filterunit good advice The electrical diagrams of the electrical system are placed inside of the control panel. Design and specifications are subject to change without notice by Blastrac BV... - Page 26 This way the materials can be re-used in an environmentally responsible manner. Despite the fact that this guide is made with care, Blastrac takes no liability for errors in the manual and the possible consequences. We are naturally very interested in your findings and additions.
- Page 27 Headquarter Blastrac Poland Blastrac Italy Blastrac The Netherlands Golina, Dworcowa 47a S.S. 10 Padana Inferiore, 41 Utrechthaven 12 PL – 63-200 Jarocin IT – 29012 Caorso (PC) NL – 3433 PN Nieuwegein Tel – 0048 627 40 41 50 Tel – 0039 0523 81 42 41 Tel –...
