DOREL ASIA

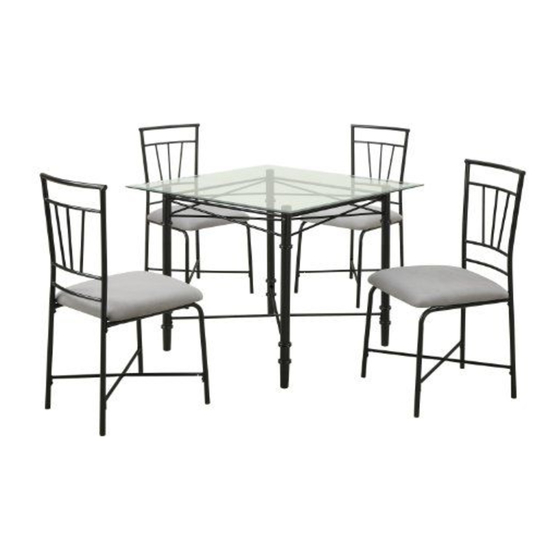

5-PIECE METAL & GLASS
Model No:
DINING SET
DA3108
UPC CODE:
0-65857-16520-3
NOTE:
THIS INSTRUCTION BOOKLET
IMPORTANT
CONTAINS
SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSISTANCE
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PRODUC
E-MAIL:DAS@DOREL.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia DA3108
Summary of Contents for Dorel Asia DA3108
- Page 1 DOREL ASIA 5-PIECE METAL & GLASS Model No: DINING SET DA3108 UPC CODE: 0-65857-16520-3 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
5-PIECE METAL & GLASS DINING SET DA3108 HARDWARE LIST Ø1/4" X 1-1/8'' Ø5/32" X 1-1/8'' HEX SOCKET HEAD BOLT PHILLIPS COUNTERSINK HEAD SCREW 8 PCS 16 PCS Ø1/4" X 1/2'' HEX SOCKET HEAD BOLT RUBBER PAD 40 PCS 4 PCS Ø1/4"... -
Page 4: Parts List
5-PIECE METAL & GLASS DINING SET DA3108 PARTS LIST BACK FRAME LEFT LEG RIGHT LEG 4 PCS 4 PCS 4 PCS SEAT SUPPORT CHAIR TUBE BASE SEAT CUSHION 4 PCS 4 PCS 4 PCS GLASS TOP TABLE LEG APRON 1 PC... - Page 5 5-PIECE METAL & GLASS DINING SET DA3108 STEP 1 Attach left leg (B) and right leg (C) to the back frame (A) with hex socket head bolts (3). Use Allen key (5) to install the bolts. NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following...
- Page 6 5-PIECE METAL & GLASS DINING SET DA3108 STEP 2 Attach seat support (D) to chair legs (B & C) with hex socket head bolts (1). Use Allen key (5) to install the bolts. NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following...
- Page 7 5-PIECE METAL & GLASS DINING SET DA3108 STEP 3 Attach chair tube base (E) to assembled chair frame with hex socket head bolts (3). Use Allen key (5) to install the bolts. NOTE: The mounting brackets on tube base (E) have to be positioned in a way that they follow the angle with the chair legs.
- Page 8 5-PIECE METAL & GLASS DINING SET DA3108 STEP 4 Place seat cushion (F) and the chair frame upside down on a smooth, flat surface. Attach seat cushion (F) to chair frame with Phillips countersink head screws (2). Use a Phillips head screwdriver (not included) to install screws.
- Page 9 5-PIECE METAL & GLASS DINING SET DA3108 STEP 5 Attach aprons (I) to table legs (H) with hex socket head bolts (3 & 6) as shown. Use Allen key (5) to tighten the bolts. NOTE: Do not fully tighten the bolts. Loose bolts will facilitate assembly in the following...
- Page 10 5-PIECE METAL & GLASS DINING SET DA3108 STEP 6 Attach table tube base (J) to table legs (H) with hex socket head bolts (3). Use Allen key (5) to tighten the bolts. NOTE: Tighten all bolts previously installed in steps 5 and 6.
- Page 11 5-PIECE METAL & GLASS DINING SET DA3108 STEP 7 Insert the rubber pads (4) into the holes of the table legs (H). With the help of another person, please the glass top (G) on top of the rubber pads (4).
- Page 12 5-PIECE METAL & GLASS DINING SET DA3108 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 13 MODEL #: DA3108 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
