DOREL ASIA

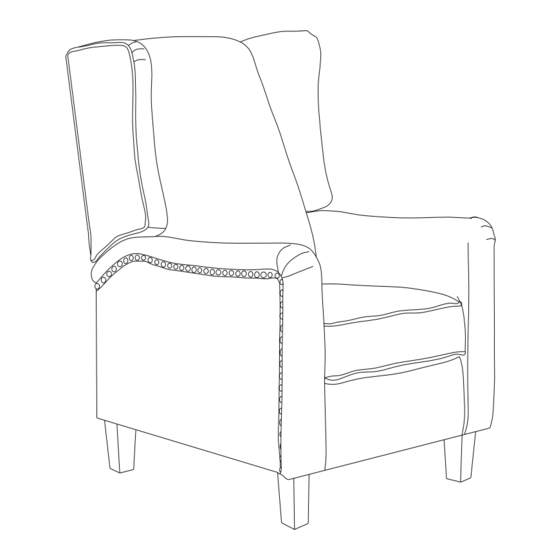

PUSHBACK RECLINER
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
(TAKEN FROM CARTON)
___________________
Date of purchase:
_______ / _______ / _______
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSISTA
E-Mail: das@dorel.com
1-800-295-1980
DO NOT RETURN PRO
E-MAIL:DAS@DOREL.
Model No:
DA7204
UPC CODE:
0-65857-16934-8
NOTE:
Lot number:
Fax #: 514-353-7819
Advertisement
Table of Contents
Related Manuals for Dorel Asia DA7204
Summary of Contents for Dorel Asia DA7204
- Page 1 DOREL ASIA PUSHBACK RECLINER Model No: DA7204 UPC CODE: 0-65857-16934-8 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ___________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Parts List
PUSHBACK RECLINER DA7204 PARTS LIST CHAIR BODY CHAIR BACK LEFT WING 1 PC 1 PC 1 PC RIGHT WING FOOT PLASTIC WASHER 1 PC 4 PCS 4 PCS... - Page 4 PUSHBACK RECLINER DA7204 STEP 1: On a clean smooth surface, gently turn the chair body (A) on its side. Screw feet (E) and plastic washers (F) to chair body (A) by turning clockwise.
- Page 5 PUSHBACK RECLINER DA7204 STEP 2: Attach chair back (B) to chair body (A) by sliding the brackets on the chair back (B) into the glides on chair body (A) as shown. NOTE: Both sides must be inserted in the base at the same time. This step is best...
- Page 6 PUSHBACK RECLINER DA7204 STEP 3: Attach wings (C & D) to chair back (B) by sliding the brackets on the wings (C & D) into the glides on chair back (B) as shown.
- Page 7 PUSHBACK RECLINER DA7204 STEP 4: Place the flap into position using the Velcro strips as shown.
- Page 8 PUSHBACK RECLINER DA7204 NOTE: While holding on to the armrests, push back on the back rest to operate the reclining function.
- Page 9 PUSHBACK RECLINER DA7204 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Dust regularly with a soft, dry cloth to prevent soil build up.
- Page 10 C B D MODEL #: DA7204 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
