User Manual
CBSD Outdoor Small Cell
T99B226
0/27
All product specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T99B226 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Foxconn T99B226

Summary of Contents for Foxconn T99B226

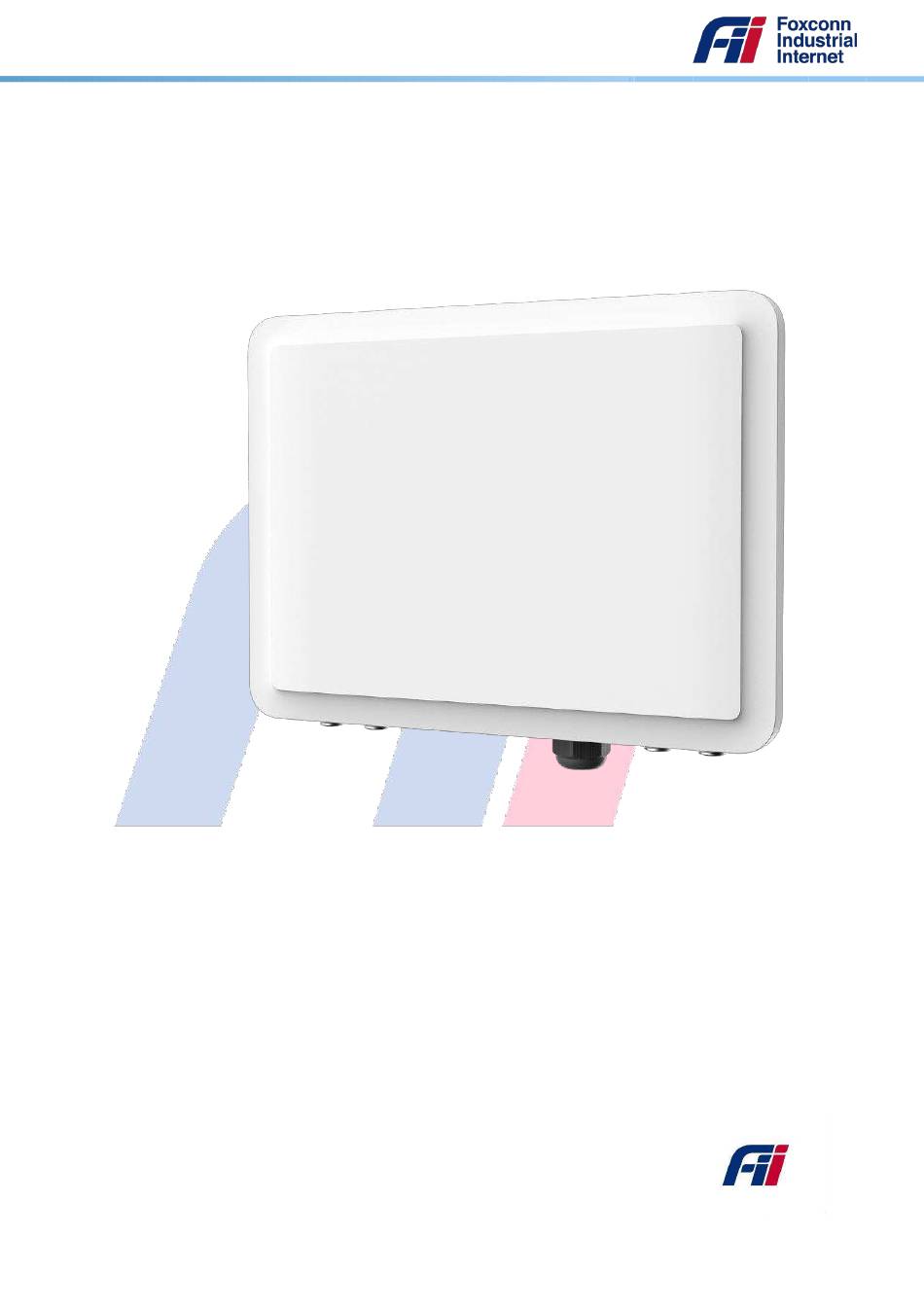

  • Page 1 User Manual CBSD Outdoor Small Cell T99B226 0/27 All product specifications are subject to change without notice...

  • Page 2: Table Of Contents

    Introduction ....................2 HW installation guide and specifications ............3 Private Network Solution ................12 Configuration Overview ................12 Basic Setting ....................13 3.1.1 Advanced Setting ..................14 3.1.2 Cell Configuration ..................14 3.1.2.1 Rem Configuration ..................15 3.1.2.2 Gateway Configuration ................16 3.1.2.3 Sniffer ......................

  • Page 3: Introduction

    (IP65) and can be pole mounted, which makes it suitable to be deployed in a dense factory area, both indoors and outdoors. Figure 1.1 T99B226 overview The LTE CA technology deployed in this outdoor small cell is complied with specification defined by IEEE 3GPP Alliance.

  • Page 4: Hw Installation Guide And Specifications

    This section describes HW overview of the Outdoor Small Cell-T99B226 Connectors and Interfaces As shown below in fig 2.1, T99B226 consists of four N-type cable connectors (LTE antenna #1,2,3,4) on the bottom side of the device for LTE antennas and an ethernet RJ45 port for power.
  • Page 5 Cable routing on Bracket LTE Antenna #1 LTE Antenna #2 LTE Antenna #3 LTE Antenna #4 Figure 2.2 T99B226 cables top view 4/27 All product specifications are subject to change without notice...
  • Page 6 GPS antenna to the device needs to be attached to the pole to ensure the stability of the connection during non-ideal weather conditions. Power for T99B226 is provided by connecting the power to a POE (power on Ethernet) adapter and through the waterproof ethernet cable to the ethernet port next to the antenna ports as shown in fig2.3.
  • Page 7 Assembly Step1: Bracket base and housing assemble: 6/27 All product specifications are subject to change without notice...
  • Page 8 Assembly Step3: Antenna holder assemble: Assembly Step4: Antenna holder and bracket assemble: 7/27 All product specifications are subject to change without notice...
  • Page 9 Assembly Step5: Fix the bracket on pole: Assembly Step6: Assemble Device on bracket: 8/27 All product specifications are subject to change without notice...
  • Page 10 Assembly Step7: Assemble Antenna on antenna holder: 9/27 All product specifications are subject to change without notice...
  • Page 11 Table 1. Product Specifications Specification Description  3550~3700MHz /Band 48 Frequency/Band  +24 dBm/port TX Power  -95 dBm RX Sensitivity  YES (2CA) CA Support  LTE TDD Duplex technique Compute & Storage  FSM9955+FTR8900*2 Main chip  8GB eMMC/ 16Gb DDR3 Flash/ Memory Antenna Interface ...
  • Page 12  -40 ~ 50 ℃ Operation Temperature  2.5 kg Net Weight  287 × 216 × 68 mm Dimension Reliability  MTBF 20 years at room temperature Operating System  Base on Linux with kernel 3.14 ask software Firmware 11/27 All product specifications are subject to change without notice...

  • Page 13: Private Network Solution

    Private Network Solution This outdoor unit (ODU) T99B226 receives data from user equipment (UE), then relay it to a backend server (EPC) and routed to an application server for information processing. Figure 3. CBRS Network Topology Configuration Overview Users can configure Small Cell parameters through the local Ethernet port of the Small Cell. Please use a computer with a browser installed to configure the gateway.

  • Page 14: Basic Setting

    Figure 4. T99B226 Configuration Overview 3.1.1 Basic Setting The Small Cell contains one 10/100mbps Ethernet interfaces. The factory default setting is WAN. The Ethernet port should be configured according to the actual requirements when used for the first time. Click “One Page Settings” -> “Basic Settings” to enter the gateway network configuration, including WAN Configuration and HeMS Configuration.

  • Page 15: Advanced Setting

    Figure 5. Basic Configuration Setting Small Cell will lack the ability to communicate with configuration/fault management portion the EPC and must rely on you to manually configuring the device. 1) Ensure that you have reserved a static IP inside of the network with IT and installed all the necessary software for EPC.

  • Page 16: Rem Configuration

    radius: 500 ft. Figure 6. Small Cell radiation overlap cells within in rage of each other to the same frequency as this will cause interference as shown in figure. 6) UL_EARFCN_List – Specify the uplink Radio Frequency Channel Number for two RF card. 7) ULDLMode –...

  • Page 17: Gateway Configuration

    3.1.2.3 Gateway Configuration The Small Cell needs to be in constant contact with the EPC via an inform method. This inform method carries with it connection information, configuration options and general Small Cell data. When the small cell needs to make a configuration change or status check the small cell need to update the EPC.

  • Page 18: Alarm

    [ENB] veMmeReadyGet: primary ePC not ready: EPC needs to be restarted or shareRan configuration is incorrect (see section 3.3.3) Alarm As shown in the figure below, the small cell raises an alarm when there is an internal problem that interferes with the small cell being able to complete its normal function. The small cell will indicate there is an issued by flashing a red waring light where the LED is labeled status.

  • Page 19: Warranty And Compliance

    Warranty and compliance The T99B226 Small Cell comes with a 5-year limited hardware warranty. • 3GPP: 3GPP E-UTLA Release 9 IEEE • IEEE 802.3u 100Base Ethernet IEEE 802.3ab Gigabit Ethernet Others • Outdoor Rating IP65 Safety UL (Optional) Part 96...

  • Page 20: Frequently Asked Questions

    Frequently Asked Questions This chapter provides answers to common questions about your CBSD Outdoor Small Cell. (Also see Troubleshooting.) The chapter covers the following topics: • Why can’t my device connect to the CBSD Outdoor Small Cell? Ethernet PHY detection failed •...
  • Page 21 Why ca ’t y device co ect to the CBSD Outdoor S all Cell? If you are experiencing problems connecting to the CBSD Outdoor Small Cell, try the following suggestions: 1. Try manually power cycle HeNB 2. After step1 for 3 times, if the situation still exist, call service center, and replace the HeNB How is setting to Connect to HeMS? Get i to H e M“...
  • Page 22 How can check the fault record? Path is De i e.FaultMg t. Figure 1Fault Management - 1 Change Reporting mechanism. Edit Device.FaultMgmt.SupportedAlarm.{i}.ReportingMechanism Indicates the reporting mechanism setting of the alarm. Enumeration of:  0 Expedited (The device inserts the alarm into the FaultMgmt.ExpeditedEvent.{i}. table and the FaultMgmt.ExpeditedEvent.{i}.
  • Page 23  1 Queued (The device inserts the alarm into the FaultMgmt.QueuedEvent.{i}. table and the FaultMgmt.QueuedEvent.{i}. table. Passively notify HeMS of the alarm event.)  2 Logged (The device inserts the alarm into the FaultMgmt.HistoryEvent.{i}. table. Dose not notify HeMS of the alarm event.) ...
  • Page 24 Sample Set How can setup the Security Management? SeGW Configuration Device.Services.FAPService.1.FAPControl.LTE.Gateway. 23/27 All product specifications are subject to change without notice...
  • Page 25 Figure 3SeGW Configuration Enable/Disable tunnel Device.Services.FAPService.CellConfig.LTE.Tunnel.1.Enable  Set to true to enable tunnel with SeGW  Set to false to disable tunnel with SeGW After setting changed, please reboot to take effect. Figure 4Enable/Disable Tunnel Tunnel Crypto Configuration Device.FAP.Tunnel.CryptoProfile.1 Currently support configuration includes – ...

  • Page 26: Troubleshooting

    Troubleshooting This chapter provides suggestions for troubleshooting problems that might arise when you are using your mobile router. The chapter covers the following topics: • RF detection failed • Ethernet interface link down • Software fault • System resource is overloaded •...
  • Page 27 RF detection failed To check and try following step: 1. Try manually power cycle HeNB 2. After step1 for 3 times, if the situation still exist, call service center, and replace the HeNB Ethernet interface link down To check and try following step: 1.
  • Page 28 DNS resolution failed To check and try following step: 1. Check uplink router whether the internet connection is ok 2. reboot HeNB 3. long press push button for 10 seconds, and release the push button, wait HeNB boot up 27/27 All product specifications are subject to change without notice...
  • Page 29 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 30 Professional installation instruction Please be advised that due to the unique function supplied by this product, device is intended use with our interactive entertainment software and licensed third-party only. The product will be distributed through controlled distribution channel and installed by trained professional and will not be sold directly to the general public through retail store.
