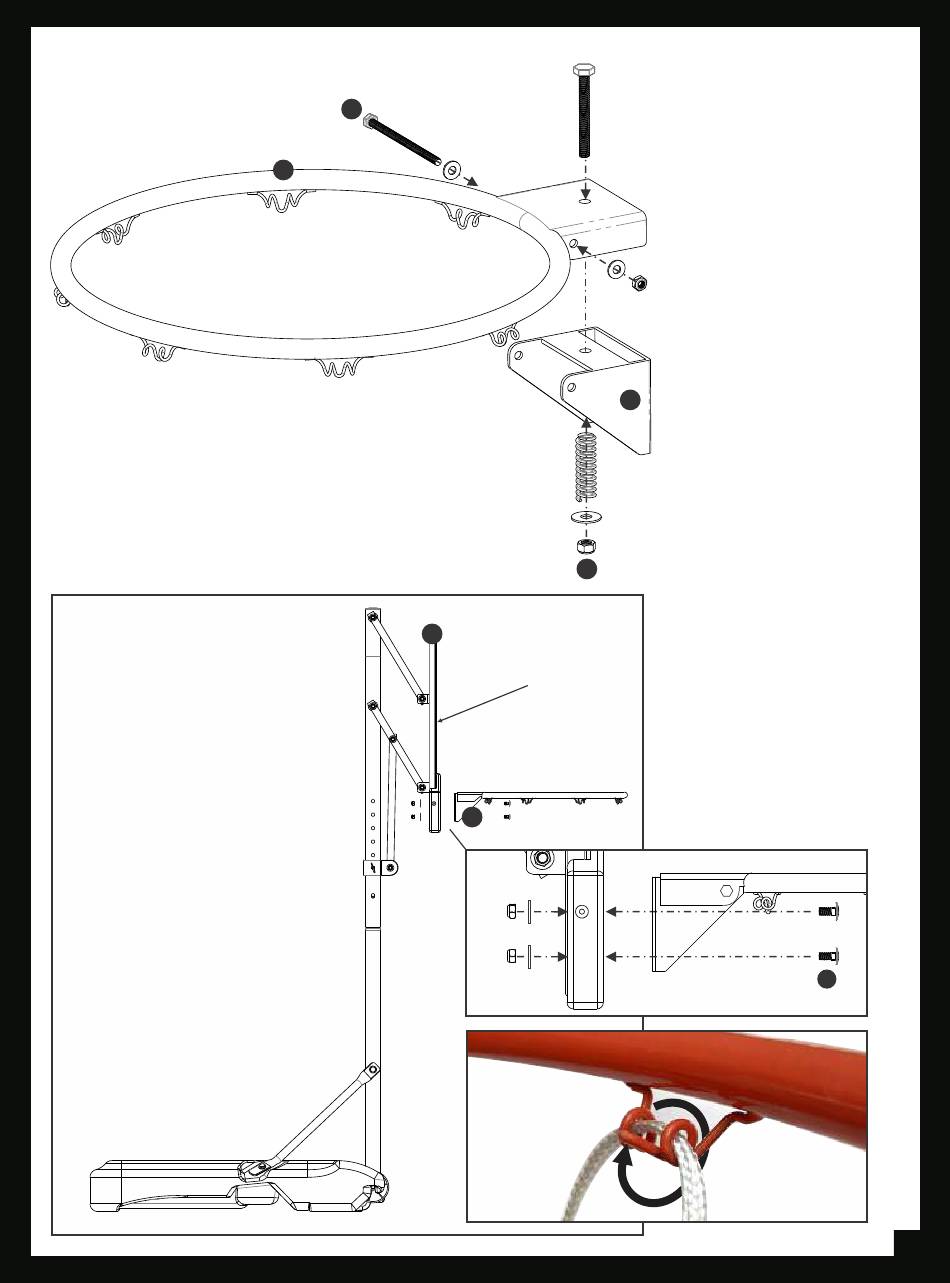

STEP D: ASSEMBLE THE RIM
STEP E: ATTACHING THE RIM & NET
H
13
12
14
I
REMOVE
PROTECTIVE
FILM
14
1. Connect the Rim (13) to the Rim
Plate (14) using Hardware Set (H).
2. Attach the Spring using Hardware
Set (I) by threading the Bolt
through the Rim (13) and Rim
Plate (14). Then slide the Spring
over the bolt and secure with the
Washer and M8 Nut.
3. Adjusting Rim Spring Tension:
- Tightening the Nut increases the
Rim's spring tension and will
make the rim recoil quicker / be
more responsive.
- Loosening the Nut decreases the
Rim's spring tension and will
make the rim recoil slower / be
less responsive.
1. Remove the protective film from
the front surface of the
Backboard (12)
2. Attach the Rim Plate (14) to the
Backboard (12) using Hardware
Set (J).
3. Loop the long ends of the net
over and around the rim hooks.
4. Finally: Check all Hardware is
fully secured and tightened
before play.
