Quickplay BALLER MINI HOOP SYSTEM Quick Start Manual page 5

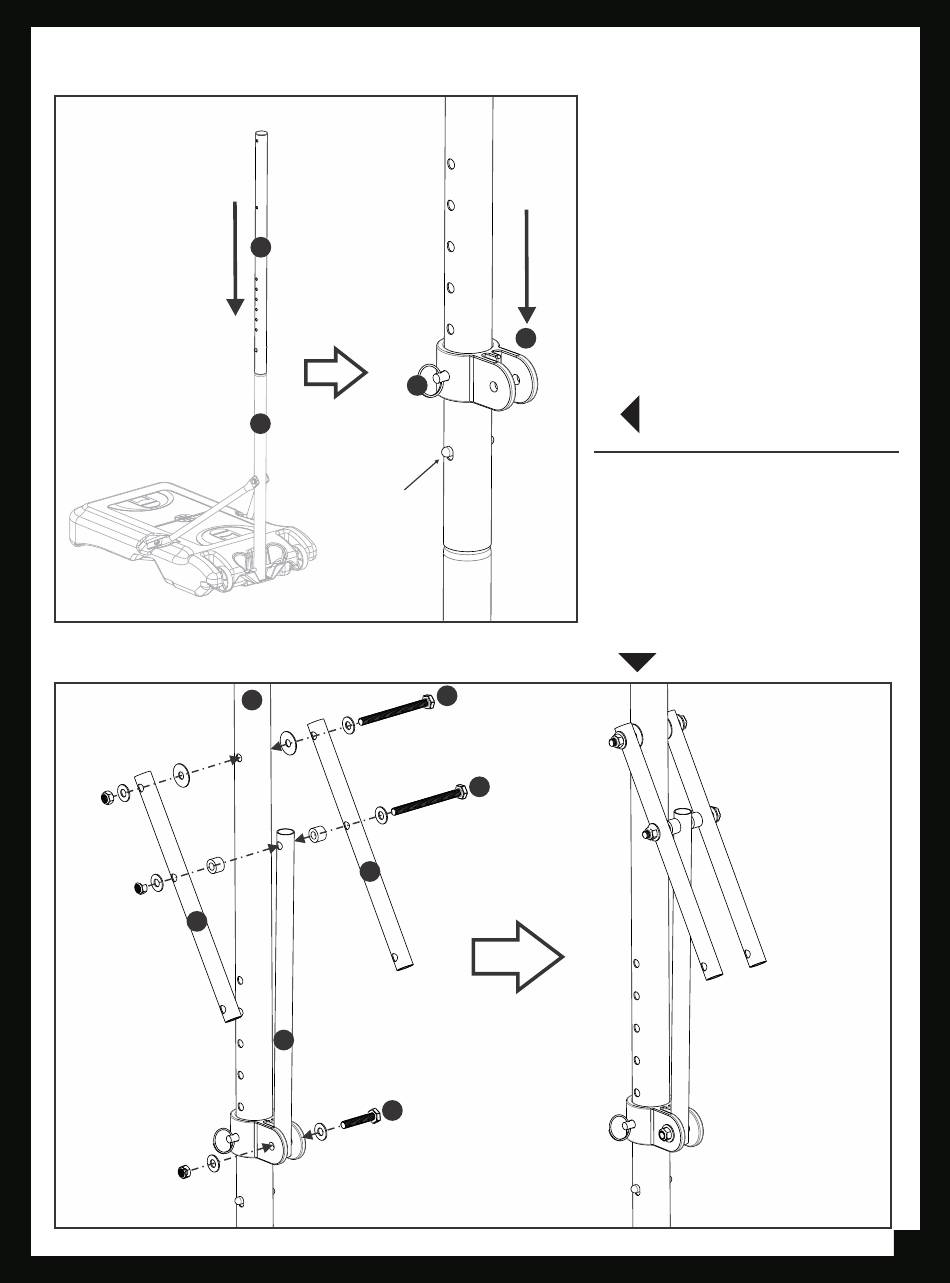

STEP B: ASSEMBLE THE HEIGHT ADJUSTMENT SYSTEM
10
7
C
4
SPRING
BUTTON
7
10
9
D
IMPORTANT: Ensure to have filled the
base with water / sand before continuing.
1. Connect the Upper post (7) onto the
Lower Post (4) and locate with the
integrated spring buttons. NOTE: Do not
add the Middle Post (14) at this time. This
part can be added at the end of the
assembly process if required.
2. Slide the Height Adjust Collar (8) onto the
8
Upper Post (7) and locate in the lowest
hole with the Height Adjustment Pin,
hardware set (C).
3. Attach the Height Adjust Collar (8) to the
Height Adjust Pole (9) with hardware
set (D).
4. Attach the x2 Lower Backboard Support
Poles (10) to the Upper Post (7) with
hardware set (E).
5. Attach the Lower Backboard Support
Poles (10) to the Height Adjust Pole (9)
with hardware set (F).
E
F
5
