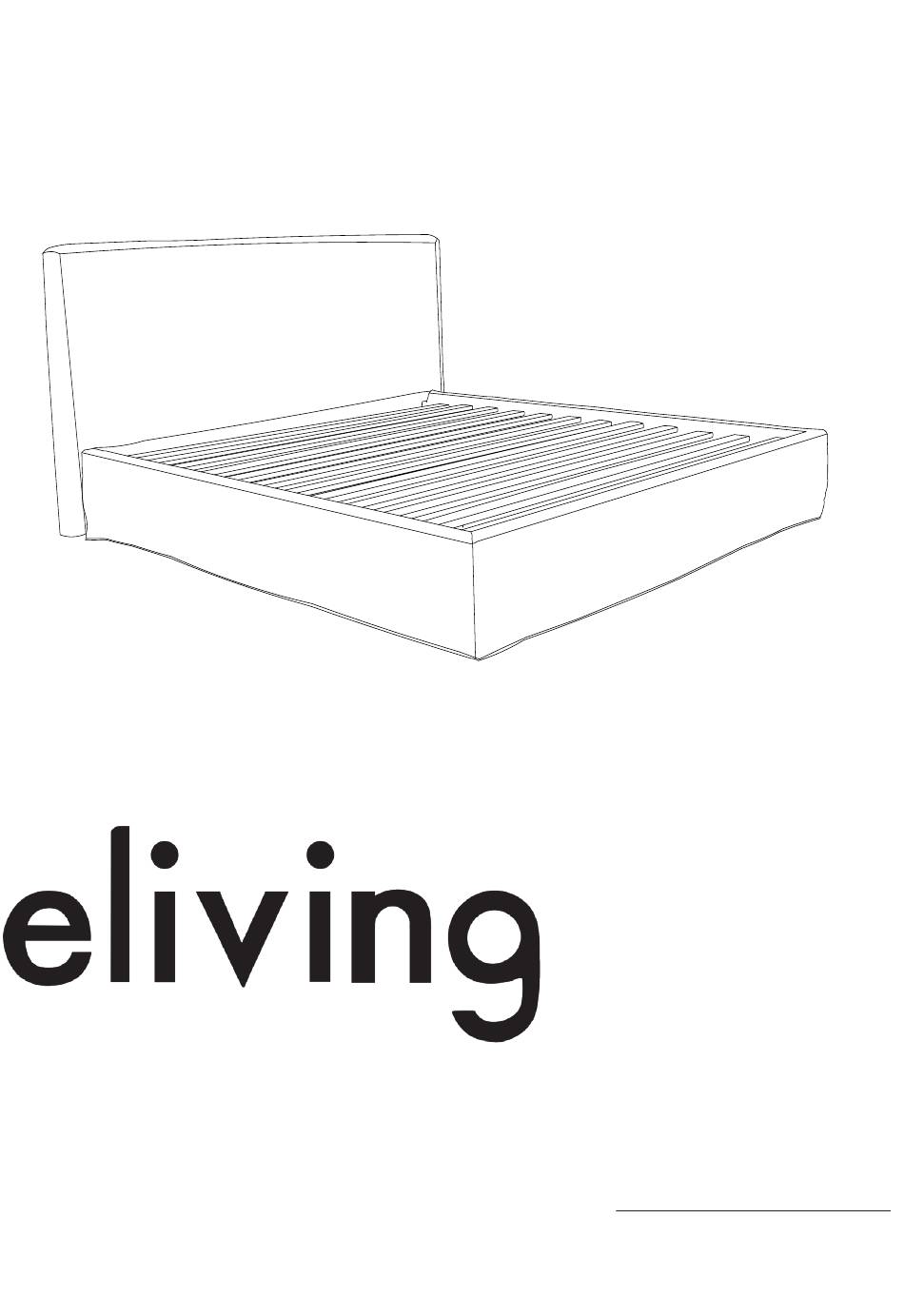

Assembly Instructions
Hyla Series
Product Code

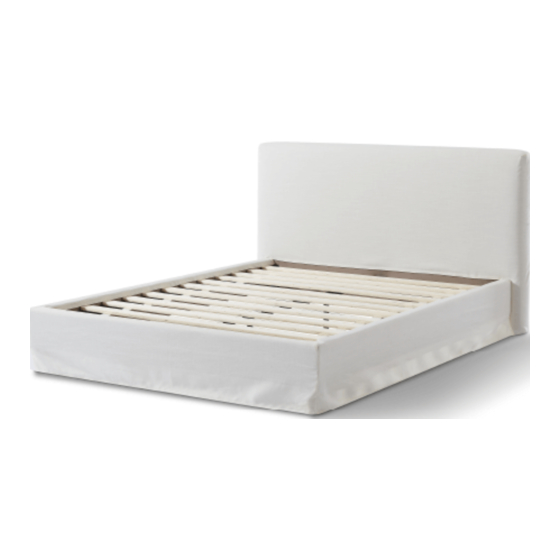

Hyla bed frame
Dimensions (W x H x D)
180.5cm X104cm X222cm
Important
Please read through instruction carefully
before assembly and keep for future reference.
For our full catalogue of assembly instructions,
visit: elivingfurniture.com.au/assembly.
Advertisement
Related Manuals for eliving FURNITURE Hyla Series
Summary of Contents for eliving FURNITURE Hyla Series
- Page 1 Assembly Instructions Hyla Series Product Code Important Hyla bed frame Please read through instruction carefully before assembly and keep for future reference. Dimensions (W x H x D) For our full catalogue of assembly instructions, 180.5cm X104cm X222cm visit: elivingfurniture.com.au/assembly.
- Page 2 Important Tips and Maintenance Keep children and animals Never place liquids or anything Never use ammonia based To avoid fading, keep furniture away from working area as damp upon furniture as it cleaning products as it will out of direct sunlight. smaller parts may cause chok- will mark.
- Page 3 So your relationship is strong. But is it flat-packfurniture strong? Unless you’re an aerospace engineer, assembling furniture can be slightly stressful. We recommend meditating quietly, pouring yourself a herbal tea (or slightly less herbal wine) and tackling things one step at a time. If you feel a passive aggressive remark coming on, try a compliment instead.
- Page 4 Component Hardware Please check you have all the fittings part or tools are listed in below. No. A No. B No. C No. D No. E Quantity: 1 Pc Quantity: 24 Pcs Quantity: 8 Pcs Quantity: 2 Pcs Quantity: 2 Pcs Self-tapping Screw Screw Allen Key...
- Page 5 Component Panels & Part List Please check you have all the panels are listed below. CNT 1/2 : CNT 2/2 : ........Rail ........x1 Headboard Slat ........x12 ....... x1 Hardware package ........x 1 4. Slip cover pack ........
- Page 6 STEP 1 No. D No. F No. E Quantity: 2 Pcs Quantity: 2 Pcs Quantity: 2 Pcs Front legs Hide legs Central legs H30mm H12mm H22.5mm STEP 2 No. G No. A No. B Quantity: 1 Pc Quantity: 24 Pcs Quantity: 4 Pcs Screw Allen Key...
- Page 7 STEP 3 No. C Quantity: 8 Pcs Self-tapping Screw M5x35mm STEP 4 Put the slip cover on the sides of the bed frame, and stick it by velcro which stitched on the cover. Hyla bed frame 6...
- Page 8 Hyla bed frame 7...
- Page 9 elivingfurniture.com.au Great job. You're done! Don’t forget to share how it looks in your space and tag us on Instagram. @elivingfurniture.com.au...
