eliving FURNITURE MUZI Series Assembly Instruction Manual
Hide thumbs
Also See for MUZI Series:
- Assembly instruction manual (18 pages) ,
- Assembly instructions manual (11 pages) ,
- Assembly instruction manual (12 pages)
Related Manuals for eliving FURNITURE MUZI Series
Summary of Contents for eliving FURNITURE MUZI Series

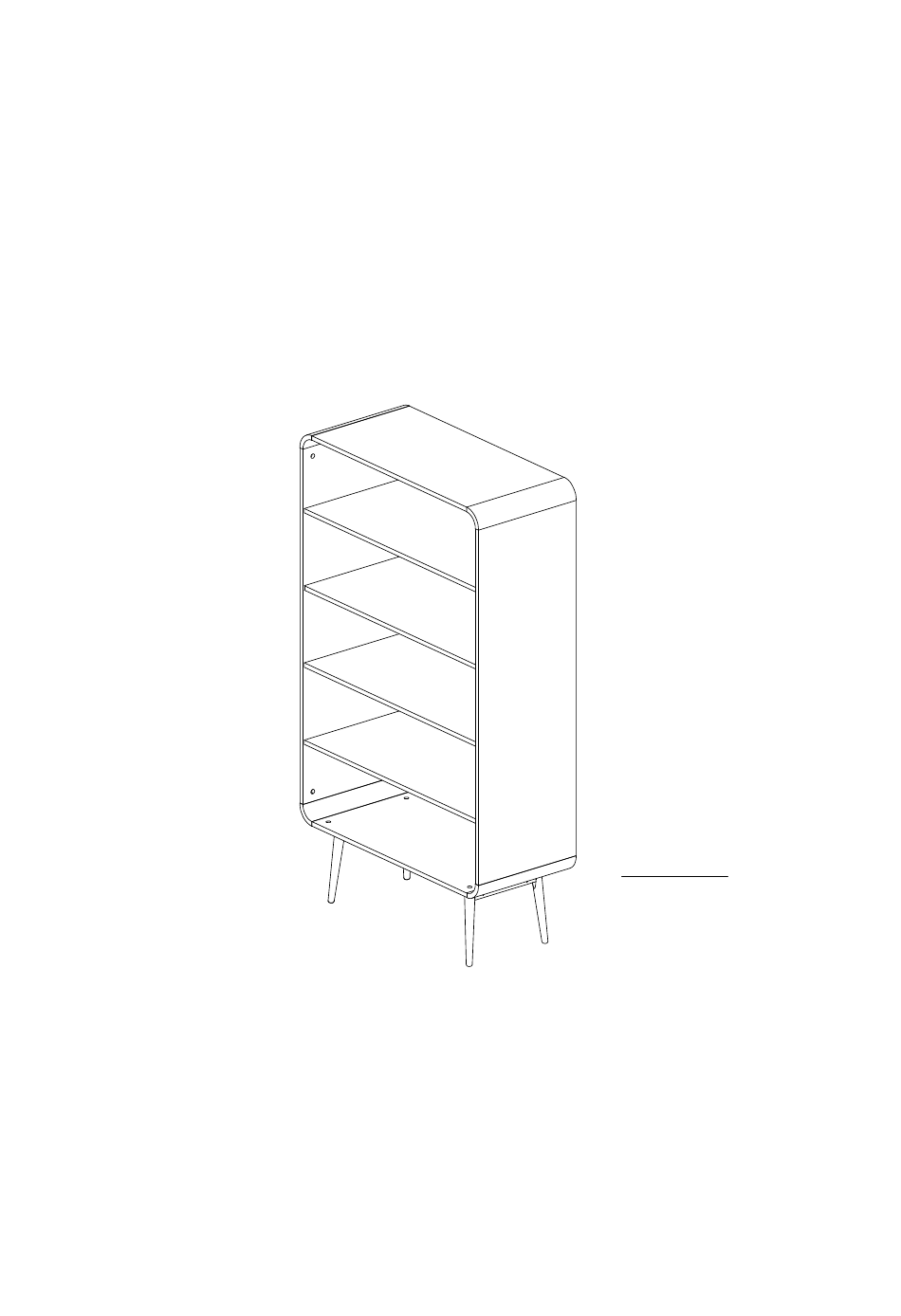

- Page 1 *Please Keep For Future Reference Only. MUZI SERIES ASSEMBLY INSTRUCTION Dimensions Width:900mm Depth:400mm Height:1600mm MUZI DISPLAY SHELF IMPORTANT:- PLEASE READ THESE INSTRUCTION CAREFULLY BEFORE STARTING ASSEMBLY. MZI-DS1640-WOK / PAGE 1...
- Page 2 IMPORTANT TIPS AND MAINTENANCE iii)To avoid dulling,do not iv)Never use ammonia cleaning i)Keep children and animal away ii)Never put the liquid on the place directly to the sunlight. product,because it will damage to avoid choking hazard. furniture. the finish. vi)Two person required. v)Use a dry cloth to wipe vii)Put a soft mat on the floor to clean the surface.
- Page 3 COMPONENTS:- Please check you have all the panels are listed below. PANELS PART LIST 4pcs 5 ARC EDGE BOTTOM PANEL 2pcs 2pcs SIDE PANEL 2pcs 4pcs BRACE PANEL SHELF PANEL 2pcs TOP PANEL BACK PANEL MZI-DS1640-WOK / PAGE 3...
- Page 4 STEP 1 HARDWARE NEEDED: 8PCS 4PCS STEP 2 HARDWARE NEEDED: 8PCS MZI-DS1640-WOK / PAGE 4...
- Page 5 STEP 3 HARDWARE NEEDED: 4PCS 4PCS 2PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL STEP 4 HARDWARE NEEDED: 4PCS 4PCS 2PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL MZI-DS1640-WOK / PAGE 5...
- Page 6 STEP 5 STEP 5 HARDWARE NEEDED: 16PCS STEP 6 4&5 MZI-DS1640-WOK / PAGE 6...
- Page 7 STEP 7 HARDWARE NEEDED: 16PCS 16PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL STEP 8 HARDWARE NEEDED: 8PCS 8PCS 22PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL MZI-DS1640-WOK / PAGE 7...
- Page 8 HARDWARE NEEDED: STEP 9 16PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL STEP 10 MZI-DS1640-WOK / PAGE 8...
- Page 9 STEP 11 HARDWARE NEEDED: 3 PCS STEP 12 MZI-DS1640-WOK / PAGE 9...
- Page 10 STEP 13 STEP 14 MZI-DS1640-WOK / PAGE 10...
- Page 11 STEP 15 HARDWARE NEEDED: 2SETS STEP 16 MZI-DS1640-WOK / PAGE 11...
