eliving FURNITURE MUZI Series Assembly Instruction Manual
Hide thumbs
Also See for MUZI Series:
- Assembly instruction manual (18 pages) ,
- Assembly instructions manual (11 pages) ,
- Assembly instruction manual (18 pages)
Related Manuals for eliving FURNITURE MUZI Series
Summary of Contents for eliving FURNITURE MUZI Series

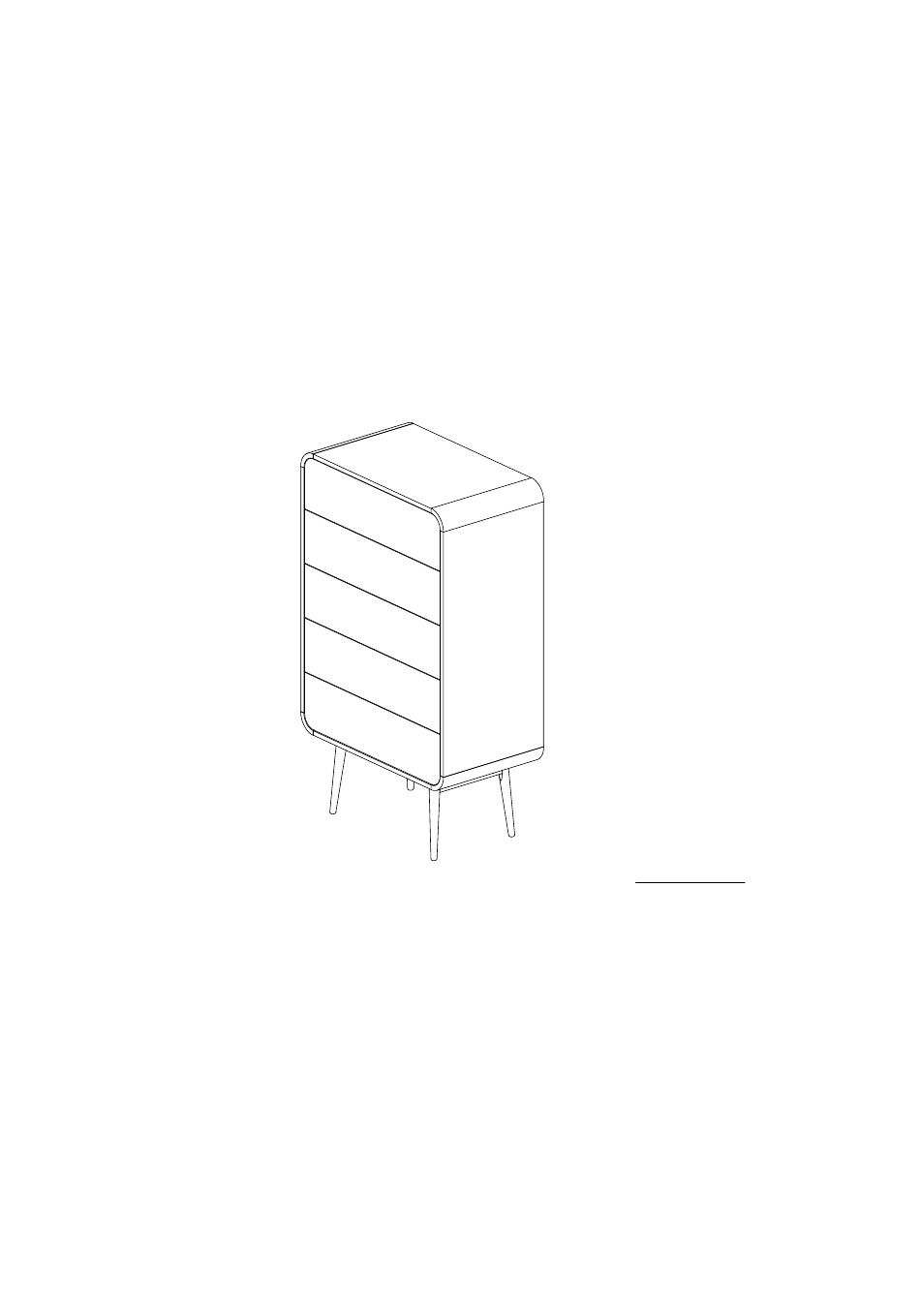

- Page 1 *Please Keep For Future Reference Only. MUZI SERIES ASSEMBLY INSTRUCTION Dimensions Width:700mm Depth:400mm Height:1200mm MUZI 5 DRAWER TALLBOY IMPORTANT:- PLEASE READ THESE INSTRUCTION CAREFULLY BEFORE STARTING ASSEMBLY. MUZI-TB7040-WOK / PAGE 1...
- Page 2 IMPORTANT TIPS AND MAINTENANCE iii)To avoid dulling,do not iv)Never use ammonia cleaning i)Keep children and animal away ii)Never put the liquid on the place directly to the sunlight. product,because it will damage to avoid choking hazard. furniture. the finish. vi)Two person required. v)Use a dry cloth to wipe vii)Put a soft mat on the floor to clean the surface.
- Page 3 COMPONENTS:- Please check you have all the panels are listed below. PANELS PARTLIST 4pcs ARC EDGE DRAWER FRONT 1 2pcs 3pcs DRAWER FRONT 2 2pcs BRACE PANEL DRAWER FRONT 3 5pcs TOP PANEL DRAWER SIDE_L 5pcs BOTTOM PANEL DRAWER SIDE_R 5pcs SIDE PANEL_L DRAWER BACK...
- Page 4 STEP 1 HARDWARE NEEDED: 8PCS 4PCS STEP 2 HARDWARE NEEDED: 8PCS MUZI-TB7040-WOK / PAGE 4...
- Page 5 STEP 3 HARDWARE NEEDED: 4PCS 4PCS 2PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL STEP 4 HARDWARE NEEDED: 4PCS 4PCS 2PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL MUZI-TB7040-WOK / PAGE 5...
- Page 6 STEP 5 HARDWARE NEEDED: 16PCS STEP 6 4&5 MUZI-TB7040-WOK / PAGE 6...
- Page 7 STEP 7 HARDWARE NEEDED: 8PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL STEP 8 HARDWARE NEEDED: 4PCS 4PCS 4PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL MUZI-TB7040-WOK / PAGE 7...
- Page 8 STEP 9 HARDWARE NEEDED: 4PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL HARDWARE NEEDED: STEP 10 4PCS 4PCS 2PCS 5SETS PUSH SWITCH 10PCS Ⅰ Ⅱ ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL MUZI-TB7040-WOK / PAGE 8...
- Page 9 STEP 11 6&7 6&7 STEP 12 6&7 MUZI-TB7040-WOK / PAGE 9...
- Page 10 STEP 13 HARDWARE NEEDED: 1PCS 6&7 STEP 14 6&7 MUZI-TB7040-WOK / PAGE 10...
- Page 11 STEP 15 HARDWARE NEEDED: 10PCS 20PCS 6&7 Second Hole Last Third Hole SCREW MUST BE INSERTED IN THE SECOND HOLE ON THE DRAWER RUNNER MUZI-TB7040-WOK / PAGE 11...
- Page 12 STEP 16 HARDWARE NEEDED: 20PCS 13&14 ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL DRAWERX5 STEP 17 HARDWARE NEEDED: 20PCS 10PCS 13&14 Third Hole Last Hole DRAWERX5 MUZI-TB7040-WOK / PAGE 12...
- Page 13 STEP 18 HARDWARE NEEDED: 20PCS 5Sets 10&11&12 10&11&12 10&11&12 STEP 19 HARDWARE NEEDED: 10PCS DRAWERX5 MUZI-TB7040-WOK / PAGE 13...
- Page 14 STEP 20 HARDWARE NEEDED: 20PCS 13&14 DRAWERX5 STEP 21 DRAWERX5 MUZI-TB7040-WOK / PAGE 14...
- Page 15 STEP 22 DRAWERX5 STEP 23 10&11&12 13&14 10&11&12 10&11&12 DRAWERX5 MUZI-TB7040-WOK / PAGE 15...
- Page 16 STEP 24 DRAWERX5 HARDWARE NEEDED: STEP 25 6 PCS 6 PCS MUZI-TB7040-WOK / PAGE 16...
- Page 17 STEP 26 HARDWARE NEEDED: 2SETS MUZI-TB7040-WOK / PAGE 16...
