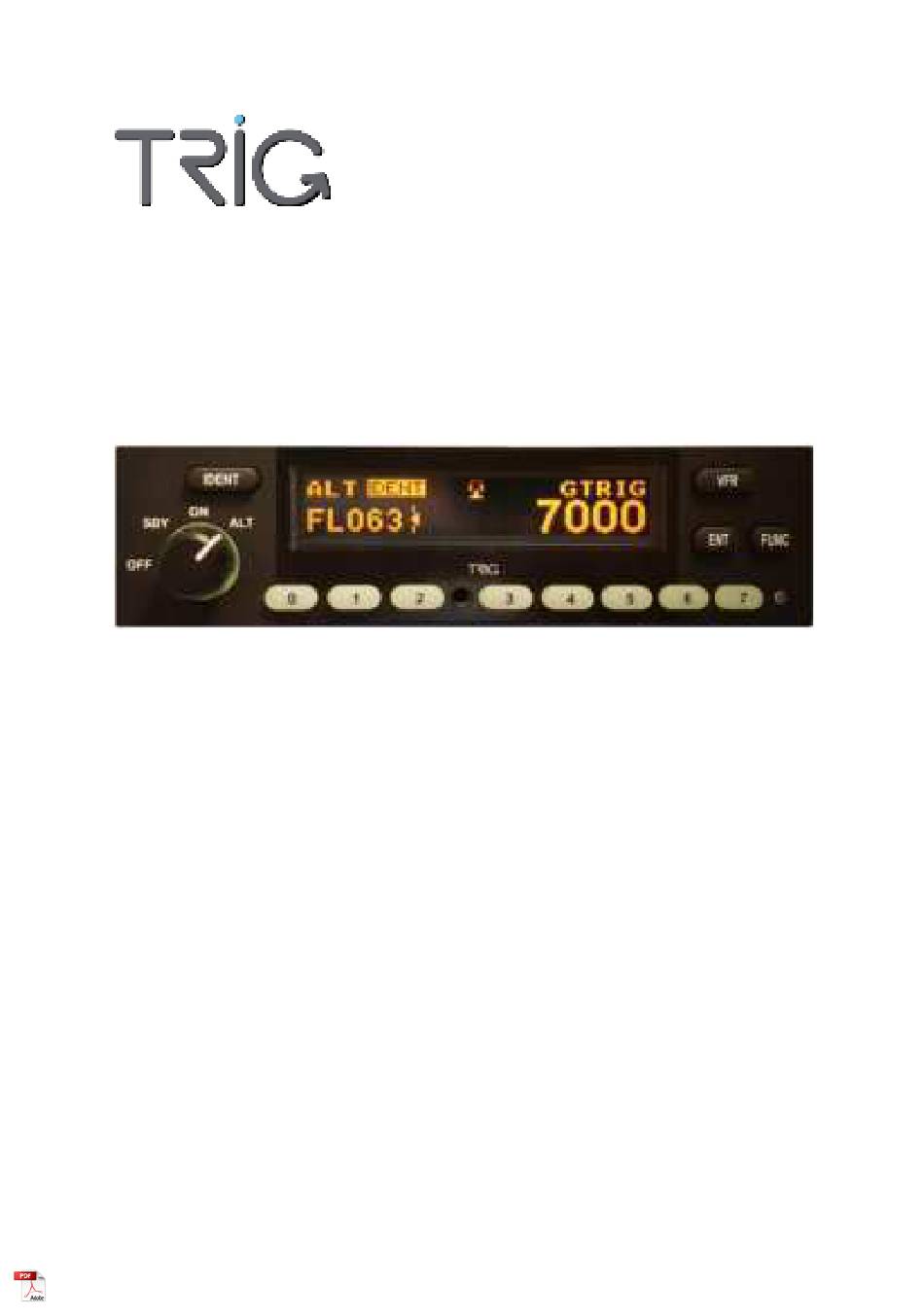

- Page 1 TT32 and TT32G Transponder Operating Manual 01846-00-AB 17 June 2021 Trig Avionics Europe B.V. Hardwareweg 3 3821 BL Amersfoort Netherlands © Copyright 2021 DRAFT COPY...
- Page 2 This page intentionally left blank DRAFT COPY...
- Page 3 Front Panel Display The display shows the operating mode of the transponder, the reported pressure altitude, and the current squawk code and Flight ID. The reply indicator is active when the transponder replies to interrogations. The pressure altitude is displayed as a Flight Level, which is the pressure altitude in hundreds of feet.
- Page 4 FUNC Pressing the FUNC button provides access to flight ID setup, flight timer, stopwatch, ADS-B monitor (depending on installation) and altitude monitor functions, in that order. Pressing the VFR button sets the transponder to the pre-programmed conspicuity code. Pressing the button again restores the previous squawk code.
- Page 5 Flight Timer The Flight Timer records the time for which the transponder has been powered on and operating in flight mode – either ON or ALT. Press the FUNC button to display the Flight Timer. Timer The stopwatch can be used as a convenient timer. Press the FUNC button to display the stopwatch.
- Page 6 Low Temperature Operation The TT32 and TT32G are certified to operate correctly down to -20C, but at low temperatures the display may be impaired. On a cold day you may need to wait for the cockpit to warm up to ensure normal operation.
