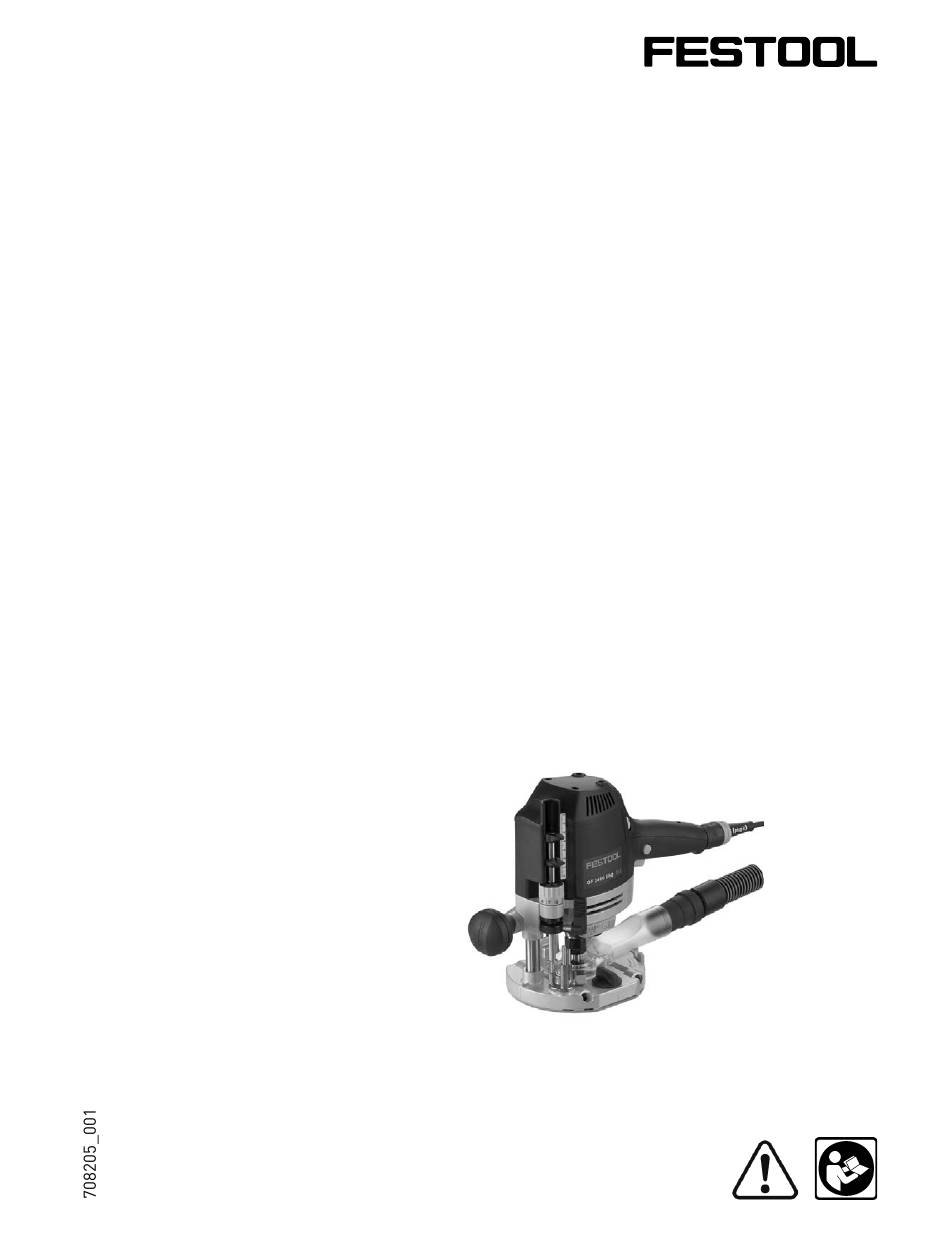

Instruction manual - Router
Page 6
IMPORTANT: Read and understand all instructions before using.
Guide d'utilisation - Défonceuse
Page 15
IMPORTANT: Lire et comprendre toutes les instructions avant de
démarrer les travaux.
Manual de instrucciones - Fresadora
Pagina 25
IMPORTANTE: Lea y comprende todas las instrucciones antes de
usar.

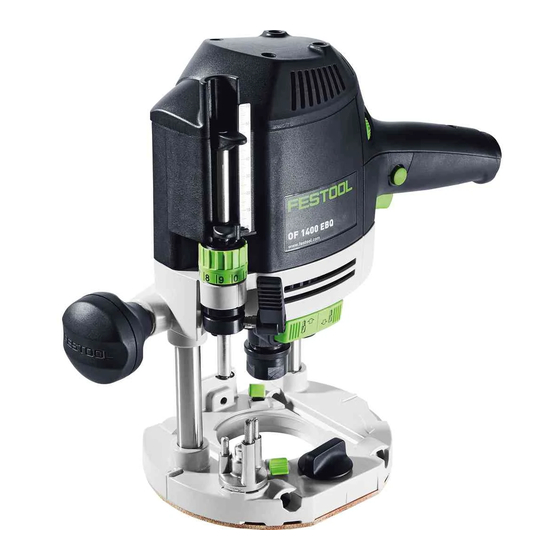

Instruction manual
Guide d'utilisation
Manual de instrucciones
OF 1400 EQ
DISTRIBUTED BY:
Pro Wood Finishes
14622 Southlawn Lane
Rockville MD 20850
Ph: (301) 424-3033

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OF 1400 EQ and is the answer not in the manual?

Questions and answers

Related Manuals for Festool OF 1400 EQ

Summary of Contents for Festool OF 1400 EQ

  • Page 1 Page 15 IMPORTANT: Lire et comprendre toutes les instructions avant de démarrer les travaux. Manual de instrucciones - Fresadora Pagina 25 IMPORTANTE: Lea y comprende todas las instrucciones antes de usar. Instruction manual Guide d’utilisation Manual de instrucciones OF 1400 EQ...

  • Page 3: Table Of Contents

    Table of contents Safety instructions Read all safety warnings, instruc- About this manual ..........6 tions, illustrations and specifi cations provided Safety instructions .......... 6 with this power tool. Failure to follow all instruc- Technical data ..........8 tions listed below may result in electric shock, fi re Symbols ............
  • Page 4 (RCD) protected supply. Use of an RCD reduces must be repaired. the risk of electric shock. c) Disconnect the plug from the power source and/or the battery pack from the power tool 3) Personal safety before making any adjustments, changing ac- cessories, or storing power tools.

  • Page 5: Technical Data

    Aluminium and plasterboard No load speed 10000 - 22500 min can also be processed with corresponding cutters such as are listed in the Festool catalogues. Quick height adjustment 2-3/4" (70 mm) Fine height adjustment 5/16" (8 mm) Festool electric power tools should Router diameter, max.

  • Page 6: Switching The Machine On And Off

    The table below shows you the correct cable diameter as a function of the cable length for Speed regulation: the router OF 1400 EQ. Use only U.L. and CSA listed Using the electronic speed control (1.1) the motor extension cables. Never use two extension cables speed can be continuously adjusted from 10000 together.

  • Page 7: Chips Extraction

    See-through plastic material gives good view of rotating tool. You can connect a Festool extractor with an extractor hose diameter of 36 mm or 27 mm to the extractor con- nector (4.6). We recommend a diameter of 36 mm because it minimises the risk of blockages.

  • Page 8: Clamping Collet Changing

    Note: the spindle lock only blocks the motor spin- Sensing stop min. height max. height dle in one direction of rotation at any one time. 1-13/16" 2-5/16" Therefore when the nut is undone or tightened, the (47 mm) 60 mm wrench does not need to be offset but can be moved 2-1/16"...

  • Page 9: Support Of The Workpieces

    this, undo screws (9.9) and tighten again after completing the adjustments. – Slide the extractor hood (9.10) from behind until it latches into place on the side stop. You can connect an extractor hose with a diameter of 27 mm or 36 mm to the extractor connector (9.11). Support of the workpieces Ensure that your workpieces are securely fi...

  • Page 10: Copy Cutting

    – Screw the height-adjustable support (10.5) of The distance Y between the workpiece and template the router table’s threaded bore in such a way is calculated by Y = 1/2 (Ø copying ring - Ø cutter) that the underside of the router table is parallel 12.1 to the surface of the workpiece.

  • Page 11: Accessories, Tools

    Place one Systainer on the top of the other Festool accessories and tools! (Fig. 14 A). Festool offers a wide range of accessories for the • Turn the T-loc [14.1] to the position routers, e.g. to make wooden joints or drill rows (Fig.
