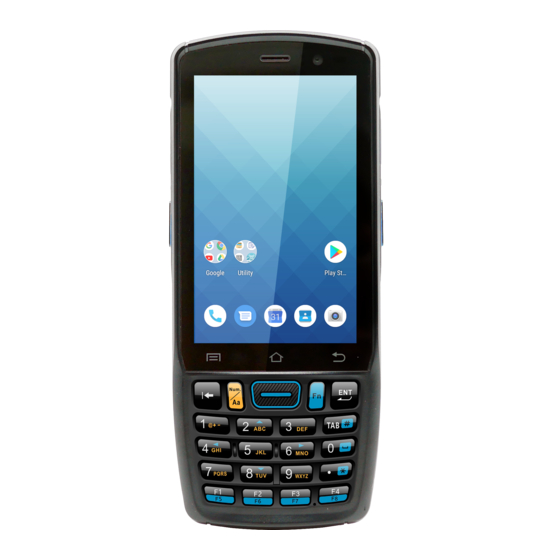

Unitech EA320 User Manual
Industrial pda
Hide thumbs
Also See for EA320:
- Quick start manual (2 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Unitech EA320
Summary of Contents for Unitech EA320
- Page 1 - EA320 - User's Manual Version 1.0 © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 2 Version 2020/8/13 first published version © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 3: Preface
–Connect the equipment into an outlet on a circuit different from that to © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 4 Use of other accessories may not ensure compliance with FCC RF exposure guidelines. European Conformity Statement unitech Electronics co., Ltd herewith declares that the unitech product is in compliance with the essential requirements and all other provisions of the RED 2014/53/EU directive.
- Page 5 ICNIRP exposure guidelines. CE Mark Warning © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 6 Waste electrical and electronic equipment (WEEE) unitech has set up a policy and process to meet the 2012/19/EU concerning electronic waste disposal. For more detailed information of the electronic waste disposal of the products you have purchased from unitech directly or via unitech’s resellers, you shall either...
- Page 7 MSS operations. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 8 Laser Information The unitech product is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 60825-1. Class II and Class 2 products are not considered to be hazardous. The unitech product contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.
- Page 9 © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 10 It may not be functional anymore. Please only use the original battery from unitech. Using a third party battery can damage our products. Please note that when such damage occurs, it is not covered by unitech’s warranty policy.
- Page 11 © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 12 Please remove the power adapter when the battery is fully recharged. The bundled power adapter that comes with your unitech product is not meant to be used outdoors. An adapter exposed to water or rain, or a very humid environment can cause damage to both the adapter and the product.
- Page 13 To prevent possible hearing damage, do not listen at high volume levels for long periods. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 14 Worldwide Support unitech’s professional support team is available to quickly answer questions or assist with technical-related issues. Should an equipment problem occur, please contact the nearest unitech regional service representative. For complete contact information please visit the Web sites listed below: Taipei, Taiwan –...
- Page 15 The warranty period is varied from each country. Please consult with your supplier or unitech local office for actual length of warranty period to your purchased product. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user.
-
Page 16: Table Of Contents
2.13 Split Screen ..................33 © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 17 3.4 StageGO....................42 3.5 MoboLink....................44 © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 18: Regulatory Compliance Statements
EA320 User’s Manual Chapter 1 - Overview 1.1 Package Please make sure the following contents are in the EA320 gift box. If something is missing or damaged, please contact your unitech representative. The standard package contents EA320 Terminal ... -
Page 19: Product Detail
Hand strap holes Battery Cover Lock © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 20 Volume Keys Function Key Scanner Trigger © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 21: Specifications
CE, RED, CCC, NCC, RoHs compliance © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 22 Drop Specification Environmental Sealing IP65 © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 23 ES SE UK NO CH TR © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 24: Getting Started
© 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 25 Charge the terminal using the USB charging cable or the cradle. Connect the type C USB cable to the USB port on EA320 and the other end of the USB cable please connect to AC power adapter into the electrical outlet on the USB plug.
- Page 26 EA320 User’s Manual 1.4.3 Turning on the terminal for the first time It is recommended to fully charge EA320 before first use. You can now start up your device to set up the languages, WLAN setting, and date and time.
- Page 27 (Micro SD card) Card The EA320 has 1 x TF (Micro SD) card slot and 2 x Nano SIM card slots inside the battery compartment. Gently press the card into the card slot accordingly. Please do not push or press SIM and TF (Micro SD) cards.
- Page 28 EA320 User’s Manual 1.4.6 Battery Status The EA320 provides battery info for users to check the battery status, history view and also set up users preferences. On the main screen, scroll up the screen to reach the APP menus, and tap Settings and then tap Battery.
- Page 29 After the device connected to your PC with USB type C cable provided, you could drag the top part of the screen down for the USB options. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
-
Page 30: Keypads And Function Buttons
Alphanumeric numeric and Back key keys alphabetic entry modes Enter key Scan Key Function key TAB key Programmable keys © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. -
Page 31: Chapter 2 - Installation & Operation
Scroll up and down here to check more scanned data. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 32 The saved data is stored in File Manager. (Please see 3.2 File Manager © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 33: Hf Setting
Tap Connection Preferences to enable NFC Make sure that both devices are unlocked and have NFC turned on. Also make sure that the NFC antenna area of EA320 and the other devices NFC area are close to one another. Slightly moving the phones until a connection is made. -
Page 34: Wwan Setting
Settings and then tap Network & internet. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 35 To choose different network type, please tap Preferred network type. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 36: Wlan Setting
To see available networks, turn WLAN ON. And tap to choose the available networks. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 37 © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 38: Pan Setting
ON to choose the available device. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 39: Gps Setting
Tap ON/OFF for the permission to use your location information. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 40: Pc Setting
EA320 User’s Manual 2.8 PC Setting Connect EA320 to your computer with the USB type C cable. Your computer will recognize it is USB charging. Slide down from top, the system will show as follow picture. © 2020 unitech Electronics Co., Ltd. All rights reserved. -
Page 41: Camera Setting
Or scroll the screen from down to top to reach the APPS, and tap Camera. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 42 For the first time turn on, the screen will show a brief introduction about camera settings. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 43 2.9.1.1 Scene Mode Setting 2.9.1.2 Camera filter effects © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 44 EA320 User’s Manual 2.9.1.3 Settings © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 45 Once tap the record button, it will start recording. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 46: Performing A Hardware Reset
Long press and hold Power button around 10 seconds to restart the device. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 47: Performing Factory Data Reset
Settings and then tap System. Tap Reset options. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 48 © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 49: Screenshot
To take a screenshot, long press power button until you see the pop up window and tap Screenshot. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 50: Split Screen
For another APP to show on the bottom half of the screen, simply tap on the APP thumbnail. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 51 APPs to expand the app that you would like to keep in full screen. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 52: Remap Key
Settings and go to System, then tap Remap Key. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 53 Please press any key to remap to perform different functions or applications. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 54: Chapter 3 - Introduction To Applications
Scroll up and down here to check more scanned data. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 55 Scanner trigger keys Scan key © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 56 For more options and settings, please tap © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 57: File Manager
: Folder arrangement : Folder Information © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 58: Software Update
/ export / Reset. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 59: Stagego
EA320 User’s Manual 3.4 StageGO StageGO is a configuration staging solution for unitech mobile devices. StageGO helps IT admins to use the 1-click auto configure feature to set up and initialize a device quickly. Devices configure themselves by using configuration scripts and barcodes prepared by the IT admins, the StageGO app, currently available for Android devices, uses unitech devices’... - Page 60 APPS, and tap StageGO. © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 61: Mobolink
EA320 User’s Manual 3.5 MoboLink MoboLink is a software platform that helps unitech customers to remote manage their purchased devices and applications. The core of the MoboLink platform provides functionalities in the MDM (Mobile Device Management) and MAM (Mobile Application Management) domains, and then further extends into other management functions such as alert notification management and account management. - Page 62 MoboLink user’s guide. ( http://mobolink.tw.ute.com/support © 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
