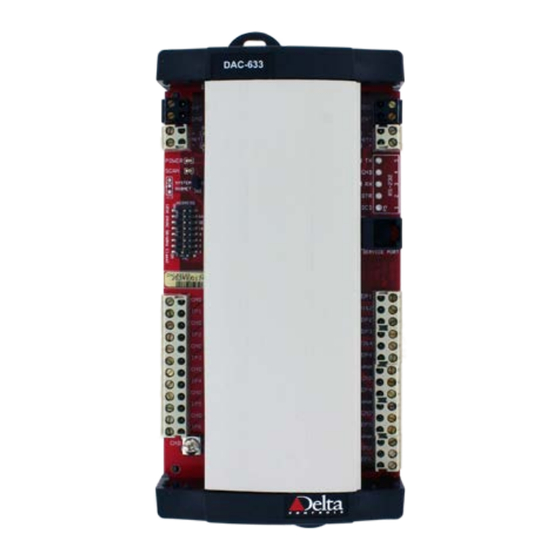

The DAC-633 Delta Application Controller is a Native BACnet
Application Controller that communicates on an RS-485 LAN
using the MS/TP BACnet protocol. The controller is designed
for a wide range of applications with small local I/O
requirements. Both firmware and controller databases are
loadable over the network.
With 6 inputs, 3 analog outputs and 3 binary triac outputs, the
DAC-633 is suitable for controlling various packaged units and
other equipment with small I/O requirements. As the controller
is completely programmable, GCL programs and BACnet
objects can be tailored to the specific application.
Important Information
ORCAview OWS and controller firmware must all be of the same version number to be
compatible. When upgrading any of these products from older versions (i.e. 3.22 or 3.30), you
must upgrade all the remaining products. Exception: UL 864 model, DAC-633-UL864 can be
used with V3.33 and V3.40 firmware.
Package Contents
Product: DAC-633 (Rev. 3.2)
DAC-633 (Rev. 3.2) Installation Guide
Related Documents
Delta Controls Wiring Guidelines
ORCAview Operator Guide
ORCAview Technical Reference Manual
Release Notes for related Firmware
I
NSTALLATION
UL 864 DAC-633 Installation Guide
Updated November 17, 2015
G
UIDE
Document Edition 1.5
Document Edition 1.5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta DAC-633
Summary of Contents for Delta DAC-633

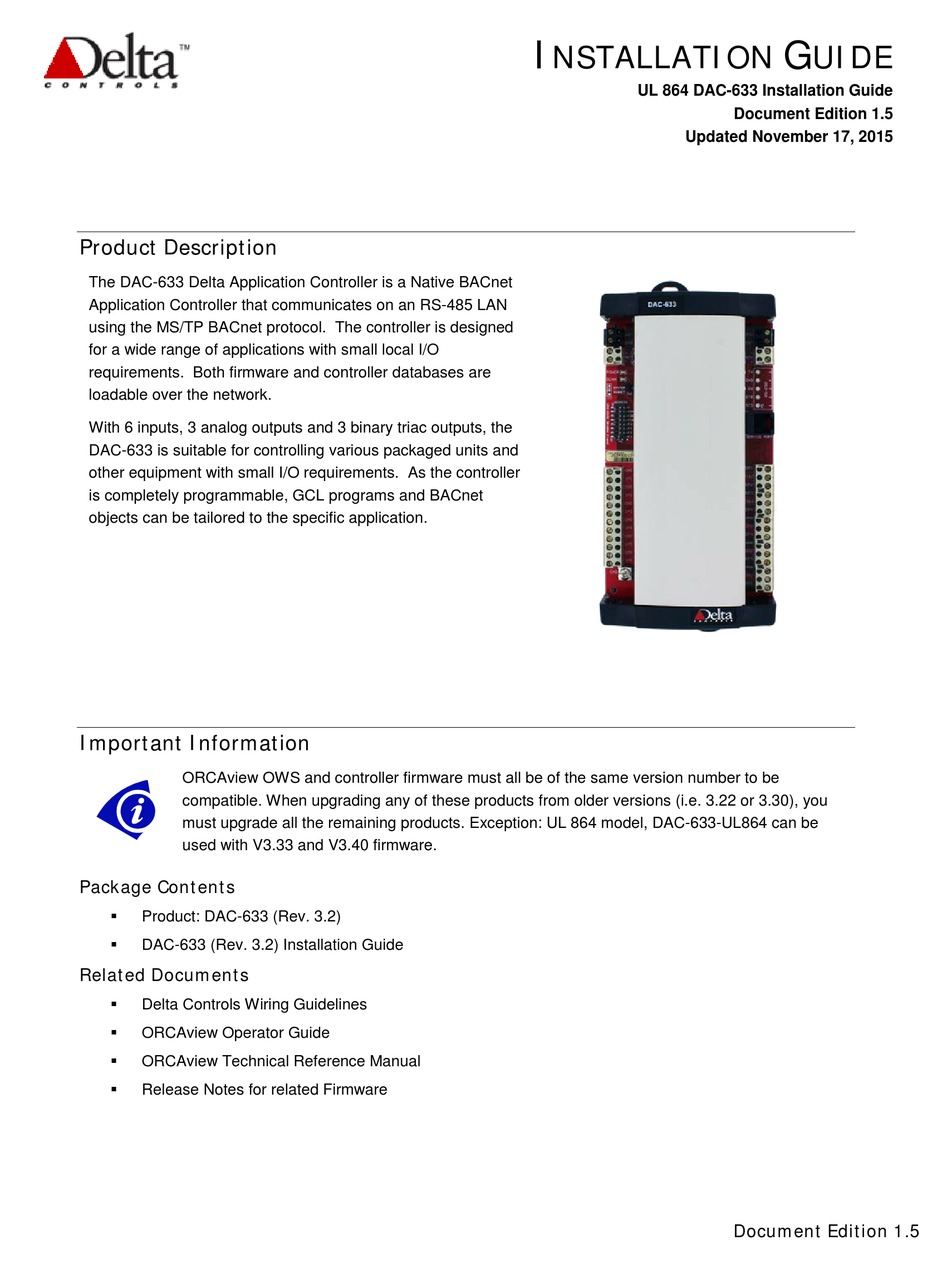

- Page 1 ORCAview OWS and controller firmware must all be of the same version number to be compatible. When upgrading any of these products from older versions (i.e. 3.22 or 3.30), you must upgrade all the remaining products. Exception: UL 864 model, DAC-633-UL864 can be used with V3.33 and V3.40 firmware.
- Page 2 Wiring to and from the device shall be through power-limited circuits. Use only Core Components transformer, Model No. 120-024-100-2TF-CB, by Lectro Components Inc. to power the device. (Delta Part # 440008) Use only UL Listed Class 2 Power Supplies for auxiliary field devices.
- Page 3 Document Edition 1.5 Mounting The DAC-633 includes a plastic enclosure that can be quickly mounted with two screws (not provided). This controller should be mounted in an appropriate location within packaged equipment or another enclosure that meets code requirements. Page 3 of 12...
-
Page 4: Board Layout
Delta Controls Board Layout Page 4 of 12... -
Page 5: Controller Configuration
Document Edition 1.5 Controller Configuration Derived Network Addressing The DNA jumper comes ON by default. This allows the controller to automatically configure a BACnet controller address. This should NOT be removed unless you are assigning a BACnet controller number through software. -
Page 6: Wiring General
Delta Controls Wiring General All wiring must conform to NEC and local codes and regulations. Use earth ground isolating step-down Class 2 transformers. Do not use autotransformers. Determine supply transformer rating by summing total VA of product and output loads. -
Page 7: Network Communication
Document Edition 1.5 Network Communication The controller communicates on an RS-485 LAN using the BACnet MS/TP protocol. Refer to Delta Controls Wiring Guidelines for further details. MS/TP (RS-485) Wiring For detailed information on MS/TP and LINKnet wiring refer to Delta Controls Wiring Guidelines. -
Page 8: Input And Output Wiring
Delta Controls Input and Output Wiring Inputs and outputs on the DAC-633 controller follow the same general wiring requirements as other Delta Controls products. Recommended cable types should be used as listed below. Refer to the Delta Controls Wiring Guidelines for more details. - Page 9 Document Edition 1.5 Indicators Function Description Power Controller Power This yellow LED turns on to indicate that the controller has power Indicator applied. Scan CPU Scan Indicator This red LED flashes at a rate relative to the CPU scan rate. Network MS/TP (RS485) The green LED flashes to indicate when the controller is...
-
Page 10: Product Specifications
Maximum of 6 LINKnet controllers including up to two DFM controllers Service RJ-11 Jack Port Used with Delta Controls service tool devices (for example, CON-768) Inputs 6 Universal Inputs (10 bit), jumper configurable for the following input types: 0-5 VDC ... -
Page 11: Ce Declaration Of Conformity
17850 56 Avenue Surrey, British Columbia Canada V3S 1C7 Declares that the product (s): Product Name: Delta Application Controller Model Numbers: DSC-633, DAC-633 Product Options: Conforms to the following Product Specifications: EN 61000-6-3:2001 Light Industrial / Residential Emission Requirements EN 55022:1997... - Page 12 Cet appareil numérique de la Classe B Respecte toutes les exigences du Règlement sur le matérial brouiller du Canada. This product conforms to the following UL requirements: UL916: Energy Management Equipment UL864*: Control Units and Accessories for Fire Alarm Systems, 9 Edition * - Applicable to DAC-633-UL864 model only Page 12 of 12...
