3.
To complete the next step:

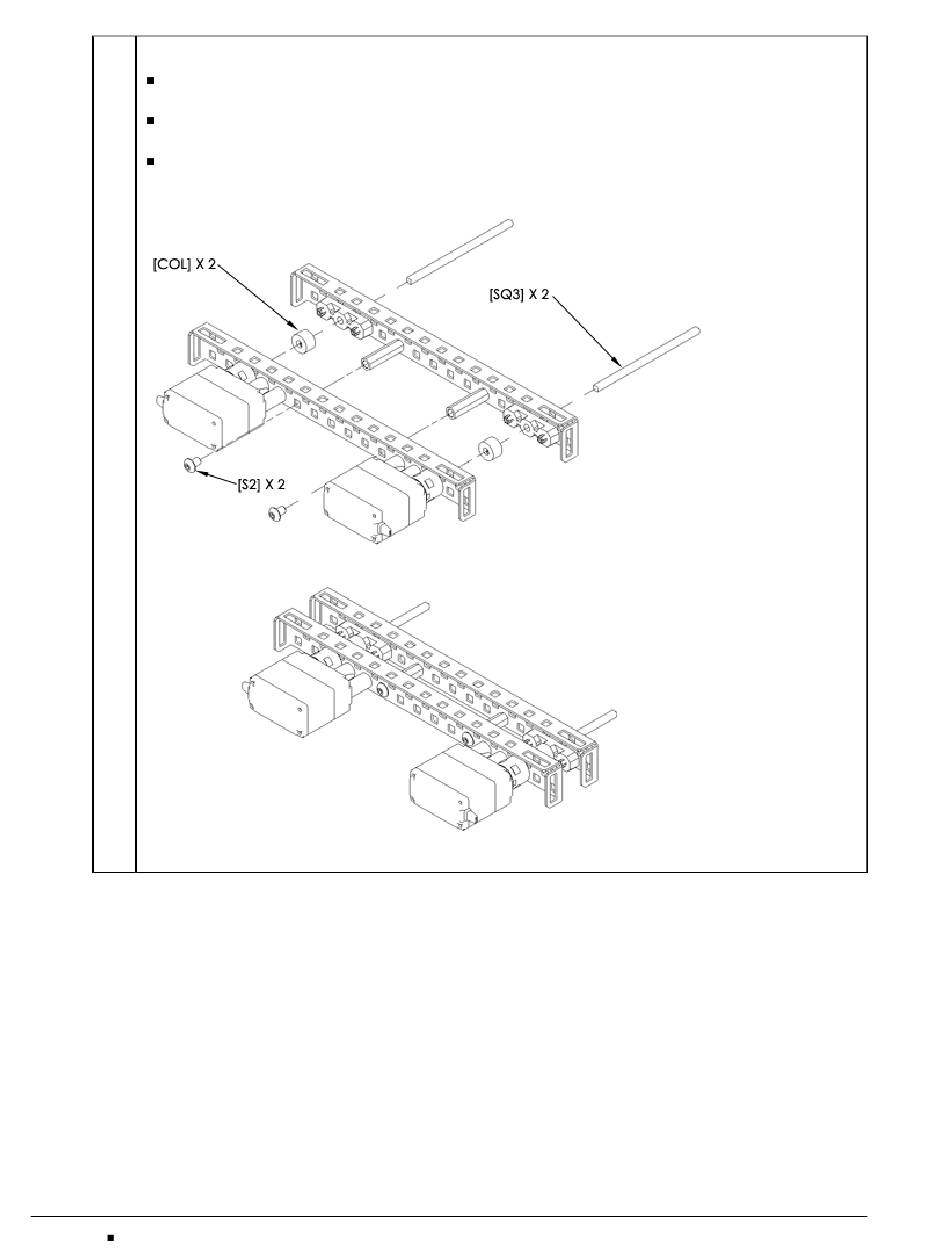

Orient the two assemblies and connect them by inserting #8-32 x 1/4" Screws [S2] into
the end of the Beams.
Insert a 3" Shaft [SQ3] into each motor, adding a Collar [COL] to the shaft as you insert it
through the two rails.
When you have seated the shaft into the motor, slide the collar against the Bearing Flat
and tighten. The collar prevents the shaft from coming out of the motor.
86
Autodesk's VEX Robotics Unit 1: Introduction to VEX and Robotics
