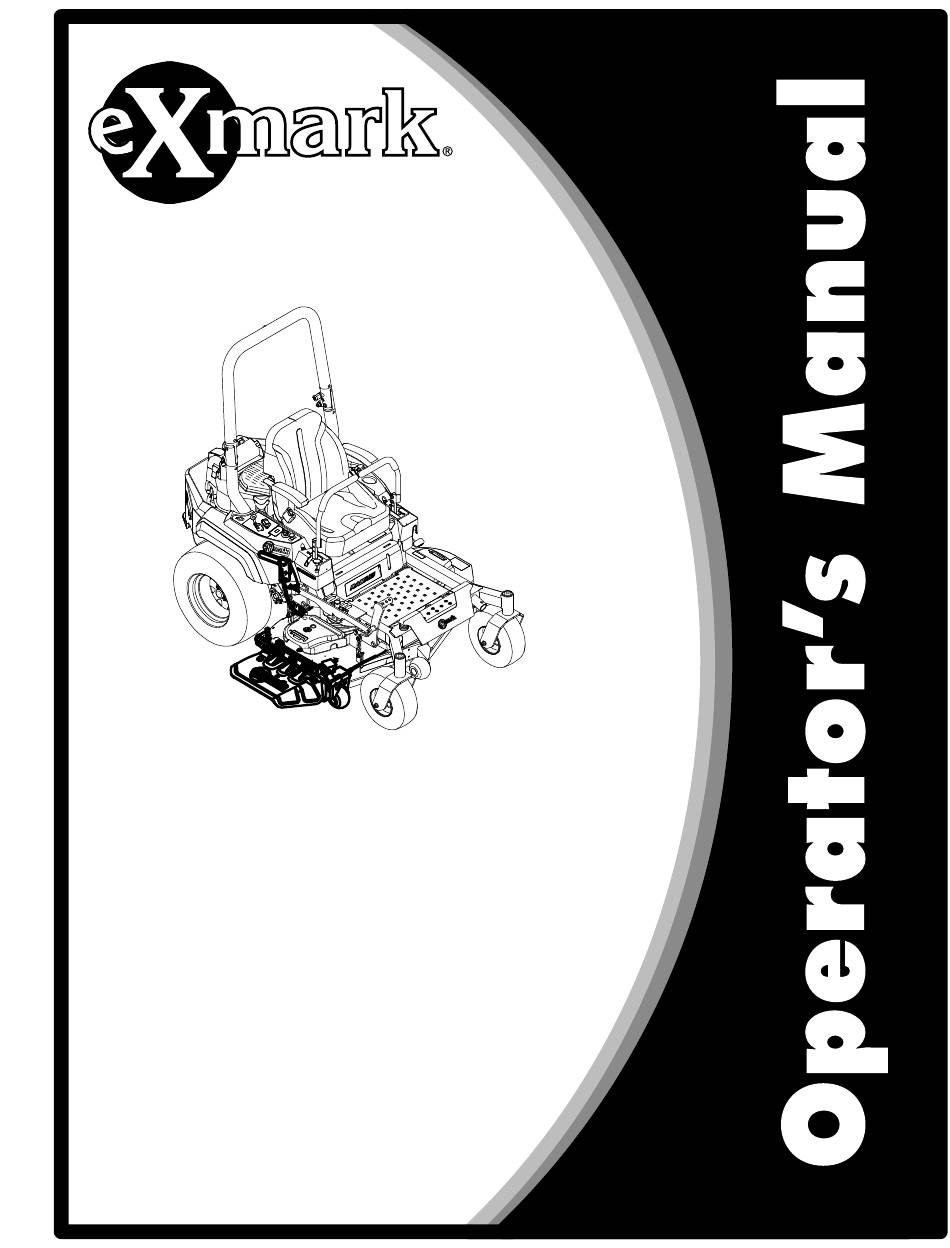

- Page 1 135-2532 OPERATOR CONTROLLED DISCHARGE-HAND For Pioneer Models Serial Nos. 920,000 & Higher For Radius Models Serial Nos. 400,000,000 & Higher Part No. 4503-668 Rev. A...
- Page 2 State of California to cause cancer, birth defects, or reproductive harm. Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously.
-
Page 3: Introduction
All Exmark parts are thoroughly tested and inspected before leaving the factory, however, attention is required on your part if you are to obtain the fullest measure of satisfaction and performance. -
Page 4: Table Of Contents
Contents Introduction ............3 Safety ..............5 Safety Alert Symbol ......... 5 Safe Operating Practices ........5 Safety and Instructional Decals ....... 7 Setup ..............8 Preparing the Operator Controlled Discharge Accessory for Installation .... 8 Installing Operator Controlled Discharge Accessory............ -
Page 5: Safety
DANGER: Indicates an imminently hazardous perform the job. Only use on machines approved situation which, if not avoided, Will result in death or by Exmark. serious injury. • Wear appropriate clothing including safety glasses, WARNING: Indicates a potentially hazardous slip-resistant footwear, and hearing protection. - Page 6 Unauthorized modifications to the original equipment or failure to use original Exmark – Before checking, cleaning or working on the parts could lead to serious injury or death. mower.
-
Page 7: Safety And Instructional Decals
Exmark equipment dealer or labels. distributor or from Exmark Mfg. Co. Inc. • Replace all worn, damaged, or missing safety • Safety signs may be affixed by peeling off the signs. -
Page 8: Setup
Figure 2 When using the Operator Controlled Discharge accessory, Exmark recommends the original 1. Latch position mower discharge deflector to remain installed on 2. Mounting pin the unit and in the flipped up position. There 3. - Page 9 Setup g036880 Figure 4 g036929 Figure 3 1. Handle bracket assembly 2. 3/8-16 x 1 inch self-tapping screws 1. Clevis pin 3. RH frame holes 2. 3/8-16 x 1 inch self-tapping screws 3. Mounting bracket Flip up the existing discharge deflector. 4.
-
Page 10: Adjusting The Operator Controlled Discharge Accessory
Setup Remove and retain the mounting pin bracket and its hardware from the Operator Controlled Discharge accessory assembly. Install the spacer bracket between the Operator Controlled Discharge accessory assembly and the mounting pin bracket using the hardware retained in the previous step and two 3/8-16 x 1 inch carriage bolts and 3/8 inch nyloc nuts as shown in Figure 5. -
Page 11: Product Overview
Product Overview Product Overview the deck creating a gap at the front, use the steps below to install a shim. If the gate link frame has complete contact all around the discharge opening, the shim is not necessary. It can remain in the storage position for potential later use on other mower decks. -
Page 12: Operation
Operation Operation Opening the Discharge Gate Push the handle downward to open the gate. Use the discharge gate to temporarily stop or deflect grass clippings away from sidewalks, parking lots, patios, or anywhere grass clippings are not desired to be discharged. The handle allows the discharge gate to be held in any position from fully closed to fully open. - Page 13 Operation front and rear deck lift shafts, and replace the floorpan Remove the hairpin and clevis pin from the handle assembly. Remove the handle assembly by sliding the handle assembly upward and out of the mounting bracket. The mounting bracket and support does not have to be removed from the machine.
-
Page 14: Maintenance
Maintenance Maintenance Note: Determine the left and right sides of the machine from the normal operating position. WARNING While maintenance or adjustments are being made, someone could start the engine. Accidental starting of the engine could seriously injure you or other bystanders. Remove the key from the ignition switch, engage parking brake, and pull the wire(s) off the spark plug(s) before you do any maintenance. -
Page 15: Discharge Gate Adjustment
Maintenance g020059 Figure 14 1. Cable nuts g220333 2. Linkage cover (shown hidden for clarity) Figure 13 3. Lock nut 1. Pivot bolt and nut 4. Pivot adjuster 5. Discharge deflector 6. Gate pivot Discharge Gate Adjustment 7. Cotter pin •... - Page 16 Maintenance Place the handle in the closed position, refer to Opening the Discharge Gate in the Operation section. Unlock the Operator Controlled Discharge accessory assembly and pivot it away from the mower deck. Adjust the cable nuts located behind and under the linkage cover (see Figure 14).
-
Page 17: Troubleshooting
Important: It is essential that all operator safety mechanisms be connected and in proper operating condition prior to mower use. The following table lists some of the common causes of trouble. If assistance is needed, contact your Exmark Service Dealer. Problem Possible Cause Corrective Action Discharge gate does not open and/or close. - Page 18 Notes:...
- Page 19 Service Record Date: Description of Work Done: Service Done By:...
- Page 20 Place Model No. and Serial No. Date Purchased Label Here (Included in the Literature Pack) or Fill in Below Model No. Serial No. ©2017 Exmark Mfg. Co., Inc. Part No. 4503-668 Rev. A Industrial Park Box 808 (402) 223-6375 Beatrice, NE 68310 Fax (402) 223-5489...
