Miboxer B8 Manual

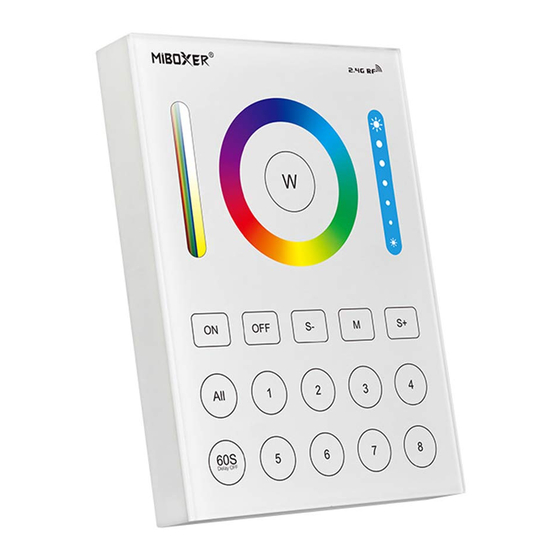

8-zone panel remote
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Subordinate New Brand

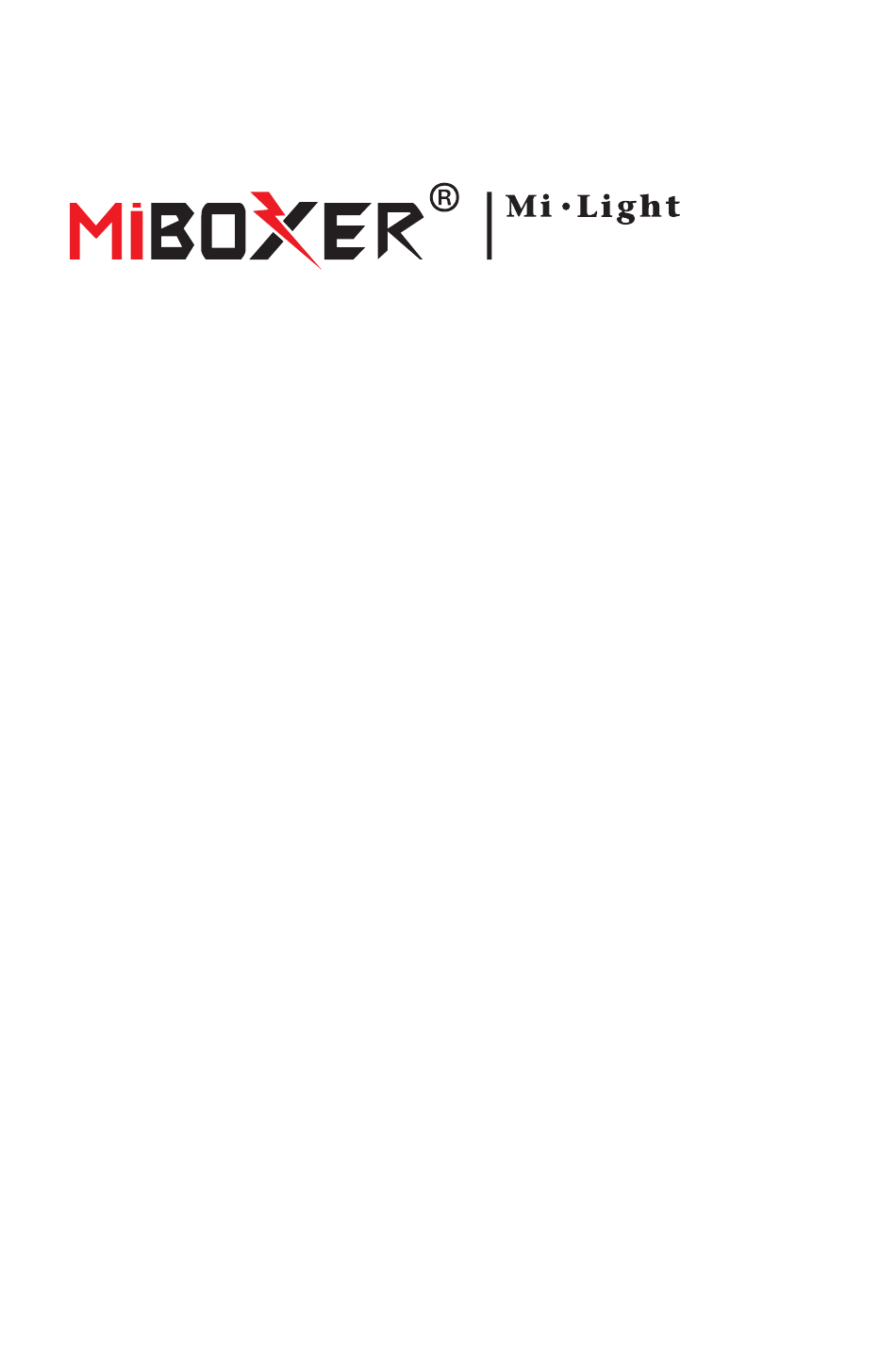

8-Zone Panel Remote (RGB+CCT)
M od e l N o. : B8

Advertisement

loading
Need help?

Need help?

Do you have a question about the B8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miboxer B8

Summary of Contents for Miboxer B8

  • Page 1 Subordinate New Brand 8-Zone Panel Remote (RGB+CCT) M od e l N o. : B8...
  • Page 2 And adopt world-wide used 2.4GHz frequency, GFSK control method, with the features of low power consumption, long distance transmitting, strong anti-interference and fast comunication rate; can control specified Mi-Light/MiBoxer smart light with color, color temperature, saturation and brightness changing.

  • Page 3: Function Of Keys

    Function of keys Remark: When touching the button, LED indicating lamp will flash once with different sound(Touch slider with no sound). White Color Ring Saturation Dimming / CCT Control Slider Mode Mode Speed- Mode Speed+ All zones 8-zone Delay OFF...
  • Page 4 Touch the color ring to change colors. Under white light mode, adjust color temperature; Under color light mode, change color saturation. Slide the brightness slider to adjust the brightness. Press the button to get white light. Turn on the linked lights. Long press “ON” button for 10 seconds to set up the button sound.
  • Page 5 Installation/ Dismantlement Input 1: 3V(2*AAA Battery) Input 2: DC 3.3V Power AC90~120V Supply or AC180~240V MiBoxer specified power supply need to be purchased separately. Installation...
  • Page 6 Dismantling Attention 1. Please check the cable, and make the circut is correct before power on. 2. When installation, pls handle with care to avoid the broken of the glass panel. Made in China...
  • Page 7 Linking Instructions Power Click the 1-8 zones button you Switch off the light, after 10 want to link, the corresponding seconds switch on again indicating lamp will shine. Power Link/ Unlink button When the light on, short The light blink 3 times slowly press "...
  • Page 8 Unlinking Instructions Power Click the 1-8 zones button you Switch off the light, after want to unlink, the corresponding 10 seconds switch on indicating lamp will shine. again. Unlinking must be the same zone with the Linking Power Link/ Unlink button When the light on, short The light blinking 10 times...
