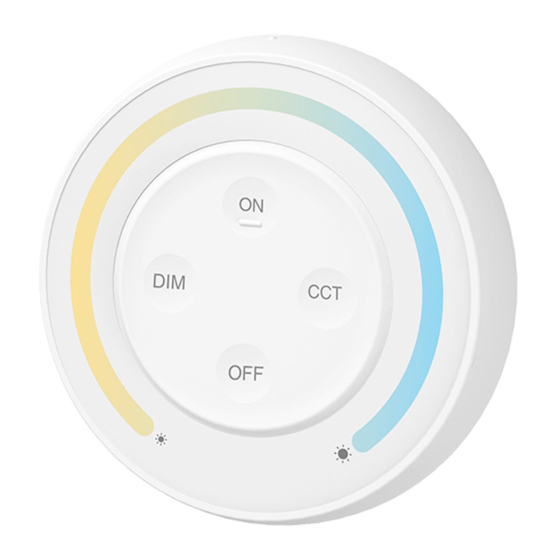

2.4G Sunrise Remote (Color Temp.)

Product Features

This product adopt world-wide used 2.4GHz frequency, GFSK
control method, with features of low power consumption, long
distance transmitting, strong anti-interference and fast
comunication rate. It can control color temperature and
brightness of Mi-Light / MiBoxer 2.4G smart light.

Product Parameters

Model No.: S1-B / S1-W / S1-G
Working Voltage: 3V(AAA battery*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Control Distance: 30m

Button Diagram

Turn on lights /
Link / Unlink
Brightness
Touch ring:
brightness, color temperature, use together.
(It turns to adjust brightness by default if remote is not operated
for 3 seconds)

Install Battery

Note: 2*AAA Battery need to buy seperately
1. Open battery cover
behind remote.
Model No.: S1-B / S1-W / S1-G
2. Install battery correctly and
close battery cover.
70mm
24mm
Color temp.
Turn off lights

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Miboxer S1-B

  • Page 1 2.4G Sunrise Remote (Color Temp.) Model No.: S1-B / S1-W / S1-G Product Features This product adopt world-wide used 2.4GHz frequency, GFSK control method, with features of low power consumption, long distance transmitting, strong anti-interference and fast comunication rate. It can control color temperature and brightness of Mi-Light / MiBoxer 2.4G smart light.
  • Page 2 Function Description Adjust color temperature Short press key once, then touch to adjust color temp. Adjust brightness Short press key once, then touch to adjust brightness. Linking Code / Unlinking Code Instructions You can control lights after linking remote with light. Linking Code Instructions Link/Unlink button...
