Miboxer B0 Quick Start Manual

Features

We adopt a high precision capacitive touch screen IC. Touch screen is very stable; 2.4GHz
high RF wireless control with long distance controlling, low power consumption and high
speed transmitting rate. Can control the smart lights of MiBoxer.

Parameters

Model No.: B0
Working Voltage: 3V (2*AAA Battery)
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Transmission Frequency: 2.4GHz
Working Temp.: -10~40°C
Control Distance: 30m
Size: 86*86*16mm

Products Key Diagram

Remark: When touching the button, LED indicating lamp will flash once with different sound
( Touch slider with no sound ).
OFF: Long press OFF button for 5 seconds to close the sound.
ON: Long press ON button for 5 seconds to open the sound.
Saturation / CCT Control
Static Red Light
ON / Link(Unlink)
Touch the color ring to change colors.
Under white light mode, adjust color temperature;
Under color light mode, change color saturation.
Slide the brightness slider to adjust the brightness.
Press the button to get white light.
Touch ON button, turn on the linked device.
Touch OFF button, turn off the linked device.
Static red light.
Static green light.
Static blue light.
Dynamic mode switching button.
Accelerate the speed under present dynamic mode.
Under static mode, Long press for 2 seconds, the light shine once, the light will be
off after 10 minutes.
Slow the speed under present dynamic mode.
Under static mode, long press for 2 seconds, the light shine once, the light will be
off after 60 seconds.

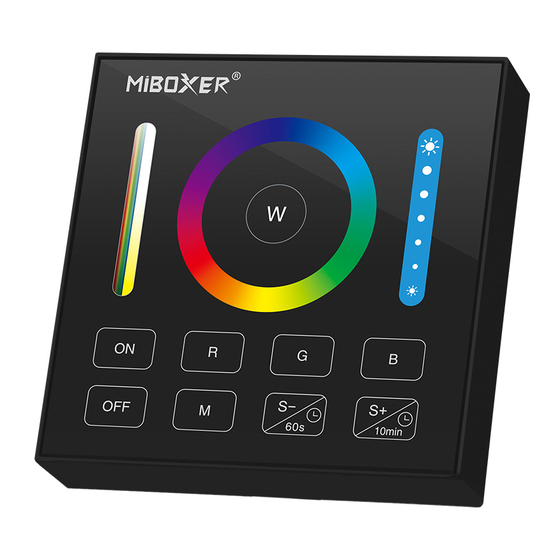

Panel Remote ( RGB+CCT )
Model No.: B0
White
OFF
Mode
Subordinate New Brand
Color Ring
Dimming Slider
Static Green Light
Static Blue Light
Speed+ /10min Delay OFF
Speed- / 60S Delay OFF
