Miboxer Mi Light B8 Quick Start Manual

Subordinate New Brand

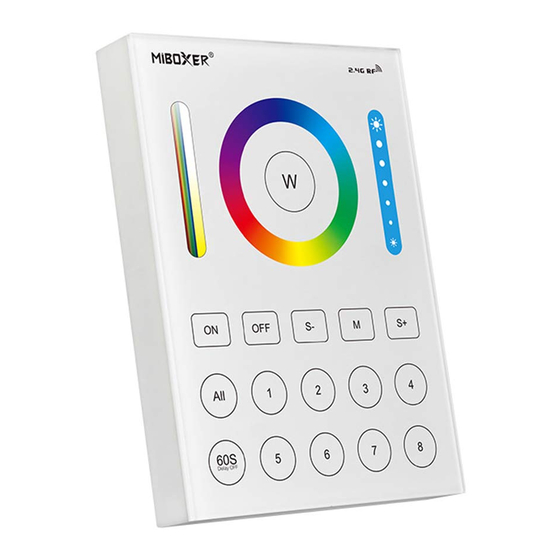

8-Zone Smart Panel Remote Controller
M od el N o.: B8
Features
This 8-zone smart panel remote is made of elegant stalinite panel
and high-precision touching IC; touching is more stable and sensitive.
And adopt world-wide used 2.4GHz frequency, GFSK control method,
with the features of low power consumption, long distance transmitting,
strong anti-interference and fast comunication rate; can control
specified Mi-Light smart light with color, color temperature, saturation
and brightness changing. Working on all our MiBoxer LED
lamps, controller and panel controllers,etc.
Parameters
Model No.: B8 Transmission Frequency: 2.4GHz
Working Voltage: 3V(2*AAA Battery) Modulation Method: GFSK
/ DC3.3V Control Distance: 30m
Transmitting Power: 6dBm Working Temp.: -20~60℃
Standby Power: 30uA Size: 106*146*20mm
Panel Remote Compatible
Compatible Products
Controller Name Remote Model
RGB+CCT series
8-Zone Smart Panel LED Bulb series
FUT089
Remote Controller LED Floodlight series
5 in 1 Smart LED Conrtoller
106mm
0222-2
Function of keys
Remark:
When touching the button, LED indicating lamp will
flash once with different sound(Touch slider with no sound).
White
Saturation
/ CCT Control
Mode
Speed-
All zones
60S
Delay OFF
20mm
146mm
Touch the color ring to change colors.
Under white light mode, adjust color temperature;
Under color light mode, change color saturation.
Slide the brightness slider to adjust the brightness.
Press the button to get white light.
Color Ring
Turn on the linked lights. Long press "ON" button for
10 seconds to set up the button sound.
Turn off the linked lights. Long press "OFF" button for
10 seconds to close the button sound.
Dimming
Press the button, to open the "60S delay " Function, the
Slider
indicating lamp will shine; Press again cancel the "60S
delay" Function, the indicating lamp will be off.
Mode
Dynamic mode switching button.
Mode
Speed+
Lower the dynamic mode speed.
Accelerate the dynamic mode speed.
8-zone
Press "ALL" button, to control all linked lights, and the
indicating lamp shine meanwhile.
Press 1-8 zone, to control the corresponding
...
zone linked lights, and indicating lamp will shine.
