Miboxer S1-B Quick Start Manual

2.4G Sunrise Remote (Color Temp.)
Model No.: S1-B / S1-W / S1-G

Product Features

This product uses 2.4 GHz frequency, GFSK control method, long-
distance transmitting capability, strong anti-interference and fast
communication rate. It can control color temperature and
brightness of compatible lights and controllers.

Product Parameters

Model No.: S1-W
Working Voltage: 3V(AAA battery*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4 GHz
Modulation Method: GFSK
Control Distance: 30 m

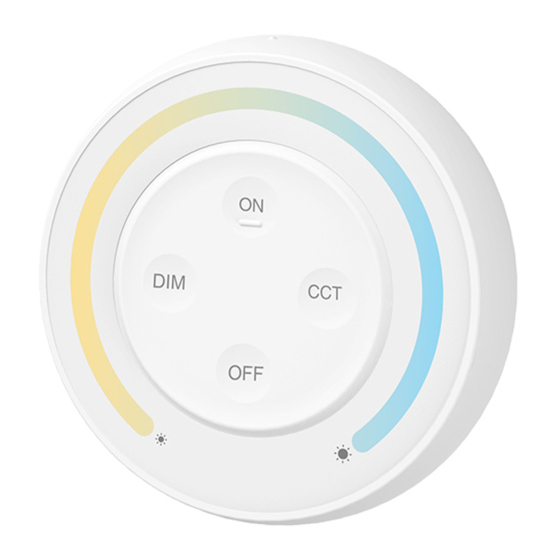

Button Diagram

Turn on lights /
Link / Unlink
Brightness

Touch Ring:

Adjusts brightness or color temperature.
(Adjusts brightness by default)
I I n n s s t t a a l l l l B B a a t t t t e e r r y y
N N o o t t e e : : 2 2 * * A A A A A A B B a a t t t t e e r r y y R R e e q q u u i i r r e e d d ( ( s s o o l l d d s s e e p p a a r r a a t t e e l l y y ) )
1. Open battery cover
behind remote.
70mm
24mm
Color temp.
Turn off lights
2. Install batteries with correct
polarity and close battery
cover.

Function Description

Adjust color temperature

Short press key once, then touch

Adjust brightness

Short press key once, then touch

Pairing / Unpairing

You can control lights and controllers after linking remote with light.

Pairing Instructions

Pair/Unpair Button
Power Light/Cont.
1
Switch off light or
controller for 10 Short press "ON"
button 3 times
seconds. Then, switch
within 3 seconds
light or controller on.
when light on.
If light does not blink slowly, then the pairing process failed.
Switch off controller and follow steps again.

Unpairing Instructions

Pair/Unpair Button
Power
Light/Cont.
1
Switch off light or
Press ON button 5
controller for 10
times within 3 seconds
seconds. Then, switch of applying power.
light or controller on.
If light does not blink quickly, then the unpairing process
failed. Switch off controller and follow steps again.

Attention

1. If indicator light flashes quickly, replace battery.
2. Using the remote in the place with metal or concrete structures
or electromagnetic interference will cause issues with
communication and communication range.
to adjust color temp.
to adjust brightness.
Power Light/Cont.
2
3
Connected lights blink
3 times slowly to indicate
pairing is successful.
Power
Light/Cont.
2 3
Connected lights blink
10 times quickly to
indicate unpairing is
successful.
Made in China
