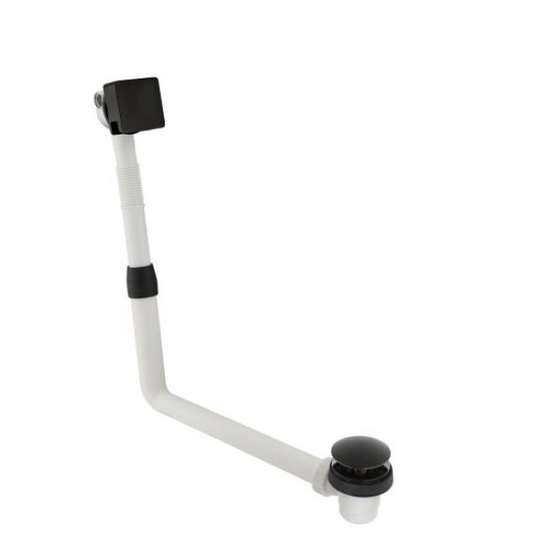

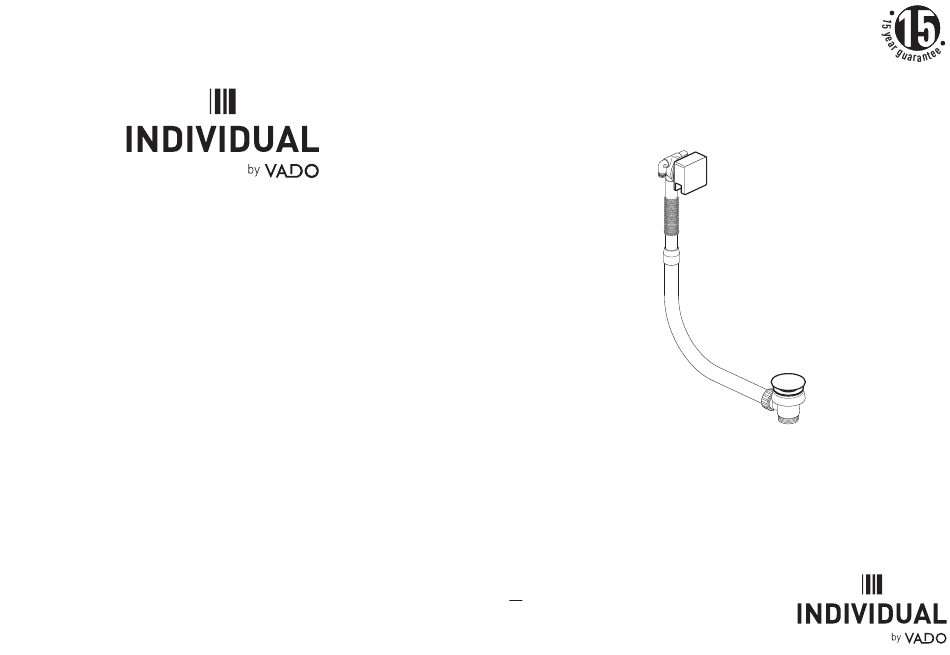

- Page 1 OMIKA NOIR Push type bath filler waste + overflow VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466 fax 01934 744345 www.vado.com sales@vado.com Version 1, 1-7-21...
- Page 2 Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee.
- Page 3 Valve dimensions Installation - Quick guide 1mm - 11mm 32mm 70mm 920mm G1.1/2”...
- Page 4 Installation - Quick guide Installation Inlet elbow Overflow/waste assembly Rubber seal Overflow housing Overflow fascia Inlet elbow Hex key socket Inner overflow pipe Outlet and overflow slots Collet Hex key Outer overflow pipe The length of the overflow pipe can be adjusted by pulling apart or pushing together the inner and outer overflow pipes.
- Page 5 Installation - Pop-up waste Operation Plug Seal Waste flange with seal Push down to open the plug. Push down again to close the plug. Overflow pipe Seal Compression Overflow/waste Washer assembly Seal Push the seal onto the waste assembly From below push the assembly up under the hole in the bath, and hold in place. From inside the bath screw the waste flange into the assembly and tighten by hand, (do not over tighten as this may damage the parts and/or the bath).
- Page 6 VADO Identity and i-tech products have a 5 year guarantee (2 year parts and labour plus 3 years parts only). All other VADO products have a 3 year guarantee (2 years parts and labour plus 1 year parts only) [SEE NOTE 2].
