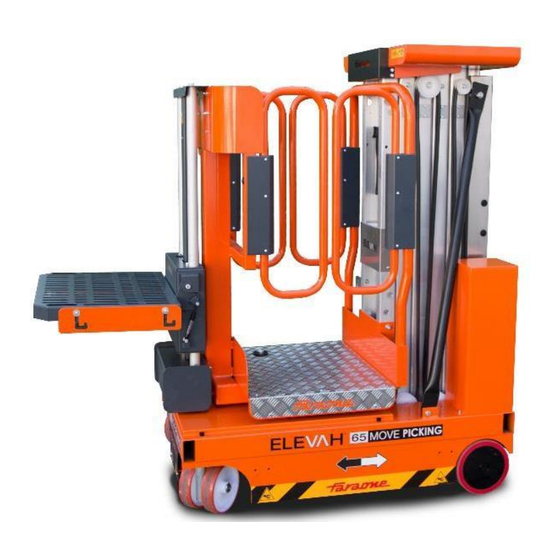

STOCK PICKER
ELEVAH 65 MOVE PICKING
ELEVAH 80 MOVE PICKING
USE AND MAINTENANCE INSTRUCTIONS
Translation of the original instructions
This document is the property of Faraone Industrie Spa
Any total or partial reproduction without written authorisation by the author or owner is forbidden

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEVAH 65 MOVE PICKING and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Faraone LEVAH 65 MOVE PICKING

Summary of Contents for Faraone LEVAH 65 MOVE PICKING

  • Page 1 ELEVAH 65 MOVE PICKING ELEVAH 80 MOVE PICKING USE AND MAINTENANCE INSTRUCTIONS Translation of the original instructions This document is the property of Faraone Industrie Spa Any total or partial reproduction without written authorisation by the author or owner is forbidden...

  • Page 2: Table Of Contents

    USE AND MAINTENANCE MANUAL - SECTION 0 SEZIONE 0. INTRODUCTION INDEX SEZIONE 0. INTRODUCTION ..............0-1 INDEX ............................0-1 INTRODUCTION ........................0-3 SYMBOLS AND TERMS ......................0-4 TECHNICAL ASSISTANCE - WARRANTY ................0-5 NOTICES..........................0-5 SEZIONE 1. SAFETY PRECAUTIONS ............1-1 GENERAL INFORMATION ....................1-1 PRELIMINARY PROCEDURES .....................1-2 OPERATION ...........................1-4 SEZIONE 2.
  • Page 3 USE AND MAINTENANCE MANUAL - SECTION 0 SEZIONE 6. DAILY INSPECTION ..............6-1 SEZIONE 7. ROUTINE MAINTENANCE ............7-1 MONTHLY MAINTENANCE ....................7-2 MAINTENANCE EVERY THREE MONTHS ................7-2 MAINTENANCE every 1000 h of work ...................7-3 MAINTENANCE EVERY SIX MONTHS ................7-4 MAINTENANCE EVERY TWO YEARS .................7-4 SEZIONE 8.

  • Page 4: Introduction

    THIS MANUAL IS A VERY IMPORTANT DOCUMENT; ALWAYS KEEP IT NEAR THE MACHINE. Due to continuous improvements to the products, Faraone Industrie Spa reserves the right to amend the technical data without any prior notice. For updated information, contact Faraone Industrie Spa.

  • Page 5: Symbols And Terms

    USE AND MAINTENANCE MANUAL - SECTION 0 SYMBOLS AND TERMS The danger symbol recalls the attention to potential dangers that might cause injuries. To avoid possible injuries or fatal accidents, comply with all safety ATTENTION instructions that follow the symbol. Arrows are used in the pictures of the machine to indicate the specific points described in the text of the manual.

  • Page 6: Technical Assistance - Warranty

    Faraone Industrie Spa deems it necessary to conduct an extensive analysis of all of the structural components every 10 (ten) years, to confirm their integrity.

  • Page 7: Sezione 1. Safety Precautions

    For further information relating to safety, training, inspection, maintenance, application and operation, contact Faraone Industrie Spa. ATTENTION THE NON COMPLIANCE WITH THE SAFETY PRECAUTIONS LISTED IN THE MANUAL MAY CAUSE DAMAGES TO THE MACHINE AND TO THE PROPERTY AND INJURIES OR FATAL ACCIDENTS.

  • Page 8: Preliminary Procedures

    Do not activate the machine on lorries, trailers, railway wagons, boats, scaffolding or similar, unless Faraone Industrie Spa has approved the operation in writing. The machine can be switched on at temperatures between -15°C and 40°C.
  • Page 9 USE AND MAINTENANCE MANUAL - SECTION 1 The machine cannot be started in environments declared ATEX, unless specifically indicated in the EC certificate of conformity delivered with the machine in question. Machine inspection Use the machine only after having carried out the functional verifications and inspections.

  • Page 10: Operation

    USE AND MAINTENANCE MANUAL - SECTION 1 OPERATION General information A self-propelled Stock Picker is a machine designed exclusively to carry, lift, stack or arrange loads on shelving, controlled by an operator stationed in the driver's seat, which can be raised at the same time as the load handling device.
  • Page 11 USE AND MAINTENANCE MANUAL - SECTION 1 Do not use the extension unit to climb on or off the cage. Pay maximum attention when entering or exiting the cage. Ensure the extending structure is completely lowered. Face the machine when entering or exiting the cage.
  • Page 12 USE AND MAINTENANCE MANUAL - SECTION 1 Danger of overturning Before driving the machine, the user must be familiar with the work area surface. While driving, do not exceed the admitted transversal and longitudinal slopes. Do not lift the basket or drive the machine with the basket raised (on a machine with a self-propeller) on a slope or uneven or soft surface;...
  • Page 13 USE AND MAINTENANCE MANUAL - SECTION 1 Danger of crushing and impact When using the machine or lifting or lowering the basket, check the distances above, at the sides and below the basket; Do not lean over the rails of the basket when the machine is running; Always pay the utmost attention to prevent the operational controls and people in the basket from being hit or hindered by any obstacles;...
  • Page 14 USE AND MAINTENANCE MANUAL - SECTION 1 Towing, lifting and carrying Do not allow personnel to stand on the cage while towing, lifting and carrying. Tow the machine exclusively in case of emergency, fault, power supply cut-off or to load/unload it. Consult the "Emergency procedures" section in this manual.

  • Page 15: Sezione 2. General Technical Data

    USE AND MAINTENANCE MANUAL - SECTION 2 SEZIONE 2. GENERAL TECHNICAL DATA ATTENTION SELF-PROPELLED STOCK PICKER ELEVAH 65-80 MOVE PICKING IS A MACHINE DESIGNED EXCLUSIVELY TO CARRY, LIFT, STACK OR ARRANGE LOADS ON SHELVING, CONTROLLED BY AN OPERATOR STATIONED IN THE DRIVER'S SEAT, WHICH CAN BE RAISED AT THE SAME TIME AS THE LOAD HANDLING DEVICE.

  • Page 16: Overall Dimensions

    USE AND MAINTENANCE MANUAL - SECTION 2 OVERALL DIMENSIONS ELEVAH 65 MOVE PICKING 1780 1280 Measurements expressed in mm STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 2-2...
  • Page 17 USE AND MAINTENANCE MANUAL - SECTION 2 ELEVAH 80 MOVE PICKING ( * ) (*) - E' presente un gradino intermedio. Measurements expressed in mm STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 2-3...

  • Page 18: General Technical Data

    USE AND MAINTENANCE MANUAL - SECTION 2 GENERAL TECHNICAL DATA STOCK PICKER TECHNICAL SPECIFICATIONS Value ELEVAH 65 MOVE PICKING Weight of the machine: (Total) 830 kg Machine height: (in transport position) 172 cm Maximum resting pressure on the ground: per 360 daN wheel/outrigger (*) Maximum transmission speeds: (with cage lifted –...
  • Page 19 USE AND MAINTENANCE MANUAL - SECTION 2 STOCK PICKER TECHNICAL SPECIFICATIONS Value ELEVAH 80 MOVE PICKING Weight of the machine: (Total) 860 kg Machine height: (in transport position) 198 cm Maximum resting pressure on the ground: per 371 daN wheel/outrigger (*) Maximum transmission speeds: (with cage lifted –...

  • Page 20: Basic Constructive Data

    USE AND MAINTENANCE MANUAL - SECTION 2 BASIC CONSTRUCTIVE DATA MACHINE FRAME: The frame of the machine (called base) is completely made of aluminium profiles with rectangular sections. All essential components are installed on the frame for normal machine operation in stable conditions.
  • Page 21 USE AND MAINTENANCE MANUAL - SECTION 2 ATTENTION THE STOCK PICKER ELEVAH 65-80 MOVE PICKING HAS BEEN INSPECTED BY THE MANUFACTURER FOR THE PURPOSE OF CALCULATING THE MAXIMUM ADMISSIBLE TRANSVERSE AND LONGITUDINAL ANGLES. STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 2-7...

  • Page 22: Sezione 3. Preparation And Inspection

    USE AND MAINTENANCE MANUAL - SECTION 3 SEZIONE 3. PREPARATION AND INSPECTION PERSONNEL TRAINING The Stock Picker is a machine designed to carry, lift, stack or arrange loads on shelving; accordingly, it is essential that it be used and serviced exclusively by trained personnel.
  • Page 23 USE AND MAINTENANCE MANUAL - SECTION 3 Operator responsibility The operator must be trained with regard to responsibility and authority to switch-off the machine in case of fault or in presence of other unsafe conditions, both relating to the machine and to the work area. NOTE: the owner shall provide qualified personnel for training both at the time of delivery of the first units and later, if requested by the user or by personnel.

  • Page 24: Functional Test

    USE AND MAINTENANCE MANUAL - SECTION 3 FUNCTIONAL TEST At the end of the "DAILY INSPECTION" (section n°6), carry out a functional test of all plants in an area free from overhead obstacles and at ground level. ATTENTION IF THE MACHINE DOES NOT WORK PROPERLY, SWITCH IT OFF IMMEDIATELY.
  • Page 25 USE AND MAINTENANCE MANUAL - SECTION 3 Inclination alarm – With the cage completely lowered, drive the machine on a surface with a slope greater than the maximum slope admitted in any direction (do not exceed the maximum nominal operational capacity on a slope). Any attempt to lift the cage makes the machine signal an inclination that exceeds the admissible range;...

  • Page 26: Safety Warnings For The Operators

    USE AND MAINTENANCE MANUAL - SECTION 3 SAFETY WARNINGS FOR THE OPERATORS Do not install and use the machine in the following cases: OUTDOORS IN PRESENCE OF WIND (DANGER OF STABILITY LOSS AND OVERTURNING) NEXT TO AERIAL OBSTACLES (electric lines, protrusions, etc.) (DANGER OF ELECTROCUTION AND IMPACT) WITH EXCESSIVE CAPACITIES COMPARED TO ADMITTED LIMITS (DANGER OF STABILITY LOSS AND OVERTURNING)
  • Page 27 USE AND MAINTENANCE MANUAL - SECTION 3 ATTENTION THE ELECTRICAL SYSTEM OF THE PLATFORM IS NOT IN ANTI-EXPLOSIVE EXECUTION (NO ATEX): THEREFORE YOU SHOULD CAREFULLY AVOID ITS USE IN AREAS SUBJECT TO ATEX RISK. During the moving phase (on the ground): Cautiously move the machine avoiding sudden manoeuvres;...
  • Page 28 USE AND MAINTENANCE MANUAL - SECTION 3 Prohibition signs: Prohibition to overload the machine beyond the limits indicated Prohibition to use the machine as an aerial platform to carry out works from heights Prohibition to remove or tamper with the stability devices of the machine (sensors, ballasts, etc.) Prohibition to remove or tamper with the safety and protection devices of the machine...
  • Page 29 USE AND MAINTENANCE MANUAL - SECTION 3 When using the machine, the manufacturer recommends using the following personal protective equipment: Protection of the lower limbs SLIP-PROOF SHOES ATTENTION THE USE OF ANY OTHER SPECIFIC PERSONAL PROTECTIVE DEVICES MUST BE CHECKED BASED ON THE ASSESSMENT OF SPECIFIC RISKS, CARRIED OUT BY THE EMPLOYER RETAINING ONLY 1 PERSON...

  • Page 30: Introduction

    USE AND MAINTENANCE MANUAL - SECTION 4 SEZIONE 4. CONTROLS, LIGHTS AND MACHINE OPERATION INTRODUCTION ATTENTION THE MANUFACTURER DOES NOT HAVE ANY DIRECT CONTROL OVER MACHINE APPLICATION AND OPERATION. THE USER AND THE OPERATOR ARE REQUIRED TO OBSERVE THE CORRECT SAFETY PROCEDURES. Stock Picker models ELEVAH 65-80 MOVE PICKING are electric machines equipped with a cage assembled onto a lifting mechanism with aluminium uprights.

  • Page 31: Machine Operation

    USE AND MAINTENANCE MANUAL - SECTION 4 MACHINE OPERATION Preliminary operations It is necessary for the following control conditions to be satisfied, before activating the machine from the controls. The voltage of the batteries must be sufficient to activate the machine.
  • Page 32 USE AND MAINTENANCE MANUAL - SECTION 4 Battery charging procedure 1. Park the machine in a well-ventilated area, near an a.c. electric socket; 2. Turn the main switch to OFF and remove the key; 3. Connect the battery charger to a correctly installed socket and earthed according to current regulations.
  • Page 33 USE AND MAINTENANCE MANUAL - SECTION 4 Carry out the following operations carefully: Charging must be carried out in a well-ventilated area, where it is forbidden to smoke and use open flames; It is recommended to avoid using any possible source of sparks near batteries charging.

  • Page 34: Cage Control Console

    USE AND MAINTENANCE MANUAL - SECTION 4 CAGE CONTROL CONSOLE 1. Emergency stop button with switch with removable key; 2. Multi-purpose joystick control with dead man enabling control; 3. Cage lifting/lowering selector; 4. Audible device button; 5. Battery charge/machine operation hour display; 6.
  • Page 35 USE AND MAINTENANCE MANUAL - SECTION 4 General information Before operating the machine from the cage control console, the following conditions of the controls must be met: The master switch must be ON. The emergency stop switch with removable key, located on the control station in the cage must be on RESET.
  • Page 36 USE AND MAINTENANCE MANUAL - SECTION 4 ATTENTION SWITCH THE MACHINE OFF AND ALWAYS REMOVE THE KEY WHEN THE STOCK PICKER IS NOT IN USE TO PREVENT UNAUTHORISED USE. Multi-purpose joystick control The joystick is used to control the following machine functions: Transmission/steering Cage lifting and lowering Transmission mode...
  • Page 37 USE AND MAINTENANCE MANUAL - SECTION 4 Lifting mode PRESS THE DEAD MAN BUTTON ON THE JOYSTICK, then: 1. Press to the LEFT to LOWER the cage. 2. Press to the RIGHT to RAISE the cage. NOTE: the pedal switch must also be pressed and held to activate machine functions.
  • Page 38 USE AND MAINTENANCE MANUAL - SECTION 4 Transport position speed regulator When the machine is in transport position (cage fully lowered) it is possible to regulate the transmission speed from the regulator. By turning the regulator counter-clockwise it is possible to lower the translation speed.

  • Page 39: Activation Pedal Switch

    USE AND MAINTENANCE MANUAL - SECTION 4 ACTIVATION PEDAL SWITCH FUNCTION ACTIVATION PEDAL SWITCH Place your foot on the switch, hold it down to actuate the cloche functions. NOTE: it is necessary to hold both the pedal-switch and the cloche actuation lever down in order to actuate the cloche functions.
  • Page 40 USE AND MAINTENANCE MANUAL - SECTION 4 ACCESS TO CAGE You can access and leave the cage from both sides of the machine. To access and leave the cage, the operator must push the moving parts of the entrance gate inwards; once inside, the gate will close by itself. The machine will not enable any controls if the gate is not closed properly.
  • Page 41 USE AND MAINTENANCE MANUAL - SECTION 4 ATTENTION DO NOT OPEN THE GATE OF THE CAGE WHEN IT IS SUSPENDED SO AS TO AVOID THE RISK OF FALLING FROM A HEIGHT AND BLOCKING THE MACHINE FUNCTIONS ATTENTION MAKE SURE YOUR HANDS DO NOT GET CAUGHT WHEN CLOSING THE GATE ATTENTION DO NOT RAISE/LOWER THE CAGE IF THE MOBILE RAILING DOES NOT APPEAR TO CLOSE PROPERLY, AND HAVE IT REPAIRED (CONTACT THE...

  • Page 42: Loading Platform

    USE AND MAINTENANCE MANUAL - SECTION 4 LOADING PLATFORM Mobile loading platform closure The loading platform in the ELEVAH 65-80 MOVE PICKING machine can be closed to facilitate the movement of the machine in confined places. To close the loading platform proceed as follows: 1.

  • Page 43: Loading Platform Extension (Optional)

    USE AND MAINTENANCE MANUAL - SECTION 4 LOADING PLATFORM EXTENSION (OPTIONAL) An extension can be added to the loading platform to increase the supporting surface by 27 cm. The extension does not change the maximum load on the loading platform which is still 100kg.

  • Page 44: Parking The Machine

    USE AND MAINTENANCE MANUAL - SECTION 4 PARKING THE MACHINE 1. Drive the machine in a well-protected and ventilated area. 2. Make sure that the cage is completely lowered, turn the main switch to OFF NOTE: if necessary, charge the batteries in preparation for the following work day.
  • Page 45 USE AND MAINTENANCE MANUAL - SECTION 4 Handling with a Stock Picker truck The machine can be lifted with a Stock Picker truck. In this case, it must be held from the front part of the machine in order to position it in a stable way onto the forks (see following figure).

  • Page 46: Sezione 5. Emergency Procedures

    USE AND MAINTENANCE MANUAL - SECTION 5 SEZIONE 5. EMERGENCY PROCEDURES This section shows the operations to be carried out in the event of an emergency during machine operation. EMERGENCY OPERATION Operator unable to control the machine CONDITIONS IN WHICH THE MACHINE OPERATOR IS IMMOBILISED, TRAPPED OR UNABLE TO ACTIVATE OR CONTROL THE MACHINE.
  • Page 47 USE AND MAINTENANCE MANUAL - SECTION 5 4. ATTENTION: always monitor the entire descent phase of the operator platform; 5. Once descent is completed, tighten the knob again; 6. Restore the emergency button to activate the machine's power supply. ATTENTION THE OPERATIONAL PHASES OF THE EMERGENCY DESCENT ARE REPORTED ON APPROPRIATE ADHESIVE NEAR THE EMERGENCY DESCENT CONTROL.

  • Page 48: Reporting The Accident

    To stabilise the machine movement use a crane or Stock Picker. REPORTING THE ACCIDENT Faraone Industrie Spa must be immediately informed of any accidents to a Faraone product. Contact the factory by telephone and give all the necessary details, also in absence of injuries or evident damages to the property.

  • Page 49: Sezione 6. Daily Inspection

    USE AND MAINTENANCE MANUAL - SECTION 6 SEZIONE 6. DAILY INSPECTION Start the full inspection from point (a), as set out in the following list. Proceed around the machine checking all listed conditions in sequence. ATTENTION TO AVOID ANY INJURIES, ENSURE THAT THE MACHINE POWER SUPPLY IS SWITCHED OFF DURING THE "FULL INSPECTION".
  • Page 50 USE AND MAINTENANCE MANUAL - SECTION 6 g) Control console in the cage Controls secured, legible signs, emergency stop switch in the reset position and legible control signs; h) Extendable structure unit Structure profiles, sliding inserts, chains, sequential activation cables, pulleys able to turn freely;...
  • Page 51 USE AND MAINTENANCE MANUAL - SECTION 7 SEZIONE 7. ROUTINE MAINTENANCE ATTENTION MAINTENANCE CAN BE CARRIED OUT BY COMPANY PERSONNEL WITH EXPERIENCE IN MAINTENANCE WORK AND ADEQUATELY TRAINED WITH REGARD TO SAFETY STANDARDS IN FORCE. ATTENTION IT IS RECOMMENDED TO ONLY USE SPARE PARTS APPROVED BY THE MANUFACTURER.

  • Page 52: Monthly Maintenance

    USE AND MAINTENANCE MANUAL - SECTION 7 ATTENTION THE RECOMMENDED FREQUENCY OF LUBRICATION AND OF THE WEAR CHECKS IS BASED ON NORMAL USE. IF THE MACHINE IS USED FOR HEAVY DUTY WORK, SUCH AS A HIGH NUMBER OF CYCLES, UNFAVOURABLE POSITION, CORROSIVE/DIRTY ENVIRONMENT, ETC., THE USER MUST INCREASE THE FREQUENCY OF THE CHECKS ACCORDINGLY.

  • Page 53: Maintenance Every 1000 H Of Work

    USE AND MAINTENANCE MANUAL - SECTION 7 Checking the Battery Periodically check for any corrosion and tightening of the terminals and any acid top-ups required in the battery (if a lead/acid type). Check the cage and the entrance doors Correct blocking of the cage and entrance doors operating correctly. Check the controls present in the cage and on the ground (if applicable) Controls secured, legible signs, main power supply selection switch...

  • Page 54: Maintenance Every Six Months

    USE AND MAINTENANCE MANUAL - SECTION 7 MAINTENANCE EVERY SIX MONTHS Lubrication of moving parts and sliding wheels check The extensions slide on runners fitted with nylon wheels. Four runners, two upper and two lower, are fitted for each pair of extensions. 3 wheels are positioned on each runner, for a total of 12 for each pair of extensions.

  • Page 55: Lifting The Cage For Maintenance

    USE AND MAINTENANCE MANUAL - SECTION 8 SEZIONE 8. MAINTENANCE OPERATING INSTRUCTIONS LIFTING THE CAGE FOR MAINTENANCE To perform maintenance below the cage, use a forklift and proceed as follows: Manually unscrew the four knobs at the corners of the protective casing of the base;...
  • Page 56 USE AND MAINTENANCE MANUAL - SECTION 8 3. Support the cage with the forklift truck during the entire duration of the maintenance operation; 4. When the operation is over, lower the cage slowly to its end of stroke and reposition the protective casing of the base by re-screwing the four knobs.

  • Page 57: Battery Maintenance

    USE AND MAINTENANCE MANUAL - SECTION 8 BATTERY MAINTENANCE It is necessary to periodically check for any corrosion and tightening of the terminals. Replace the batteries as follows: 1. Make sure the machine is not connected to an external mains supply (charging batteries);...

  • Page 58: Changing Torque Reducer Oil

    USE AND MAINTENANCE MANUAL - SECTION 8 CHANGING TORQUE REDUCER OIL ATTENTION PAY ATTENTION BECAUSE THE SURFACES ARE HOT DURING NORMAL OPERATION Change the exhaust oil with the reducer still hot. Before changing the lubricant, make sure that the product has been at a standstill for about 30 minutes, a sufficient amount of time for the oil temperature to drop to levels which are not hazardous for the operator.

  • Page 59: Hydraulic Oil Change

    USE AND MAINTENANCE MANUAL - SECTION 8 HYDRAULIC OIL CHANGE Faraone Industrie Spa recommends using hydraulic oil with viscosity index 32. Mixing oils of different makes or types is strongly ill advised, since they may not contain the necessary additives or viscosity may be different.

  • Page 60: Transmission Motor

    USE AND MAINTENANCE MANUAL - SECTION 8 TRANSMISSION MOTOR Checking the condition of the motor left in the housing. 1. Remove the clamp from the manifold side support; 2. Use compressed air to remove carbon dust deposits on the internal surfaces of the brush side support;...
  • Page 61 USE AND MAINTENANCE MANUAL - SECTION 8 ATTENTION FOLLOWING A STRONG COLLISION WE RECOMMEND A THOROUGH CHECK OF THE CASTING OF THE REDUCER, THE WHEEL, GEARS AND BEARINGS ATTENTION RESTORING THE IP RATING DEPENDS ON CORRECT POSITIONING OF THE O-RINGS AND SILICONE COATING OF THE TIE RODS. AFTER THE MAINTENANCE TECHNICIAN HAS CLOSED THE MOTOR, THEY ARE FULLY RESPONSIBLE FOR THE IP RATING AND THE INTEGRITY OF THE MOTOR.

  • Page 62: Electromagnetic Brake

    USE AND MAINTENANCE MANUAL - SECTION 8 ELECTROMAGNETIC BRAKE Checking the electromagnet If the brake, alternately energised and de-energised, does not release and lock the brake lining correctly, measure the winding resistance, which should be as follows: Econ. 12 Volt brakes 24 Volt brakes 36 Volt brakes 48 Volt brakes...

  • Page 63: Checks On Lifting Chains

    USE AND MAINTENANCE MANUAL - SECTION 8 CHECKS ON LIFTING CHAINS 1) Chain noise A grinding metal noise will be heard if the chains are not fully lubricated. This causes metal-metal friction between the joints of the chain, which can lead to seizing-slipping effect, causing the work platform to move unevenly.
  • Page 64 USE AND MAINTENANCE MANUAL - SECTION 8 9) Broken pins This problem usually occurs as a result of corrosion in the chain joints. Since the pins of a single chain are subject to the same load and corrosion conditions, one failure is usually followed by more. Experience has shown that this type of failure is not always easily recognised as there are no evident changes in the chain conditions, especially in the initial stage.
  • Page 65 USE AND MAINTENANCE MANUAL - SECTION 8 ATTENTION FOR FURTHER INFORMATION REGARDING PURCHASE OF SPARE PARTS AND CONSUMABLES, PLEASE CONTACT THE MANUFACTURER. THE MANUFACTURER DECLINES ALL LIABILITY DUE TO DAMAGE OR MALFUNCTION CAUSED BY USE OF PARTS NOT AUTHORISED BY THE SAID MANUFACTURER. STOCK PICKER ELEVAH 65-80 MOVE PICKING –...

  • Page 66: Sezione 9. Attached Documentation

    USE AND MAINTENANCE MANUAL - SECTION 9 SEZIONE 9. ATTACHED DOCUMENTATION ATTACHMENT 1 – Layout for the application of the stickers; ATTACHMENT 2 - Hydraulic layout; ATTACHMENT 3 – Electrical layout; ATTACHMENT 4 – Inspection certificate. ATTENTION SHOULD THE MACHINE BE TRANSFERRED TO A THIRD PARTY, ALL DOCUMENTATION MUST BE DELIVERED WITH THE SAME.

  • Page 67: Attachment 1 - Layout For The Application Of The Stickers

    USE AND MAINTENANCE MANUAL - SECTION 9 ATTACHMENT 1 – Layout for the application of the stickers Pos. SYMBOL DESCRIPTION Pos. SYMBOL DESCRIPTION DANGER SIGN DANGER SIGN CRUSHING AND CRUSHING AND TRAPPING OF LOWER TRAPPING OF UPPER LIMBS LIMBS PROHIBITION SIGN DANGER SIGN UNAUTHORISED RISK OF FALLING...
  • Page 68 USE AND MAINTENANCE MANUAL - SECTION 9 STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 9-3...
  • Page 69 USE AND MAINTENANCE MANUAL - SECTION 9 3-4-5-7-8-9 STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 9-4...
  • Page 70 USE AND MAINTENANCE MANUAL - SECTION 9 STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 9-5...

  • Page 71: Attachment 2 - Hydraulic Diagram

    USE AND MAINTENANCE MANUAL - SECTION 9 ATTACHMENT 2 - hydraulic diagram STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 9-6...
  • Page 72 USE AND MAINTENANCE MANUAL - SECTION 9 STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 9-7...

  • Page 73: Attachment 3 - Electrical Layout

    USE AND MAINTENANCE MANUAL - SECTION 9 ATTACHMENT 3 - Electrical layout STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 9-8...
  • Page 74 USE AND MAINTENANCE MANUAL - SECTION 9 STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 9-9...
  • Page 75 USE AND MAINTENANCE MANUAL - SECTION 9 STOCK PICKER ELEVAH 65-80 MOVE PICKING – Rev. 09_2019 Page 9-10...

  • Page 76: Attachment 4 - Inspection Certificate

    USE AND MAINTENANCE MANUAL - SECTION 9 ATTACHMENT 4 – Inspection certificate STOCK PICKER ELEVAH 65 MOVE PICKING ELEVAH 80 MOVE PICKING Serial number: The machine underwent the following tests: Brake test Overload test Operation test Producing a POSITIVE result. Tortoreto, on STOCK PICKER ELEVAH 65-80 MOVE PICKING –...
  • Page 77 NOTES:...
  • Page 80 Faraone Industrie Spa Contrada Salino – Via San Giovanni, 20 64018, Tortoreto (TE) – ITALY Tel.:+39.0861.77.22.21 – fax: +39.0861.77.22.22 www.faraone.com info@faraone.com...
