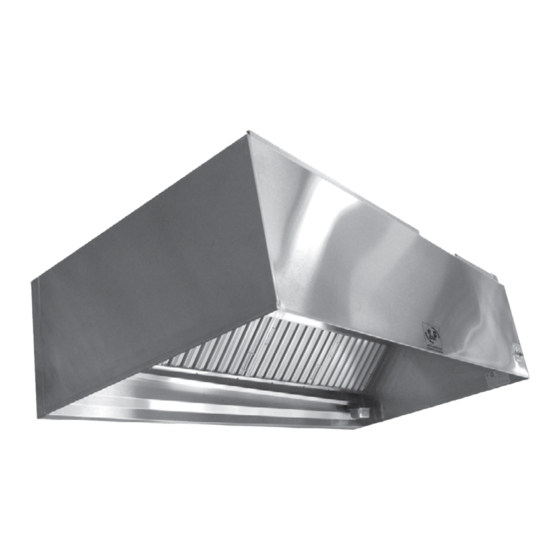

Installation, Operation, and Maintenance Manual
Models: EO, EO-FPSP, EOLC & EOLC-FPSP
The purpose of this manual is to aid in the proper installation and operation of fans manufactured by S&P
USA. These instructions are intended to supplement good general practices and are not intended to cover
detailed instruction procedures, because of the wide variety and types of fans manufactured by S&P USA.
6393 Powers Avenue
Jacksonville, FL 32217
P: 800.961.7370
F: 800.961.7379
KitchenHood_IOM_05122022
KITCHEN HOOD
READ AND SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for S&P JENcoFAN EO
Summary of Contents for S&P JENcoFAN EO
- Page 1 ® KITCHEN HOOD Installation, Operation, and Maintenance Manual Models: EO, EO-FPSP, EOLC & EOLC-FPSP READ AND SAVE THESE INSTRUCTIONS The purpose of this manual is to aid in the proper installation and operation of fans manufactured by S&P USA. These instructions are intended to supplement good general practices and are not intended to cover detailed instruction procedures, because of the wide variety and types of fans manufactured by S&P USA.
- Page 2 INTRODUCTION: DO NOT INSTALL, USE OR OPERATE THIS EQUIPMENT UNTIL THIS MANUAL HAS BEEN READ AND UNDERSTOOD. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE USE. This document is the property of the owner of this equipment and is required for future maintenance.
-
Page 3: Limitation Of Warranty And Liability
WARRANTY: Manufacturer warrants this equipment to be free from defects in material and workmanship for one (1) year from date of shipment by S&P to the original purchaser. Any units or parts which prove to be defective and are reported during the warranty period will be replaced at our option when returned to our factory, transportation prepaid. - Page 4 START-UP: Determine that the installation is complete and in accordance with the project plans and specifications, that the duct system is complete and that all electrical connections have been made. Check all motors, coils, etc., for proper voltage and connection. See that all electrical components have adequate accessibility and that all connections are tight.
-
Page 5: Troubleshooting Chart
TROUBLE-SHOOTING CHART The following is a list of common causes and corrective actions for possible problems with exhaust hood systems. Please refer to this list prior to consulting manufacturer. PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Check circuit breaker Check fan disconnect Exhaust fan not operating Check fan belt No Exhaust... - Page 6 FIELD INSTALLED DUCT COLLARS Ductwork Installation All ductwork should be installed in accordance with local codes. The installing contractor is responsible for adherence to codes and restrictions. Generally, the duct system will perform best and will ensure easy installation if installed in the most direct and simple manner. NFPA-96 requires that the exhaust duct must be installed using 16-gauge carbon steel or 18-gauge stainless steel with all joints and seams welded liquid tight.
-
Page 7: Maintenance
MAINTENANCE Hood Inspect the grease extractors each day for grease deposits, clean if necessary. Check the grease container every day and empty. Wipe the interior/exterior of the hood daily, if possible, to remove deposits or accumulations of grease. Periodically clean the interior of hood and light fixtures with a mild detergent as necessary. - Page 8 END - TO - END CONFIGURATION...
-
Page 9: Back - To - Back Configuration
BACK - TO - BACK CONFIGURATION... - Page 10 GREASE TROUGH AND CUP INSTALLATION...
- Page 11 HOOD OPTIONS 1.1 BACK RETURN PLENUM...
- Page 12 HOOD OPTIONS 1.2 FRONT PERFORATED SUPPLY PLENUM (FPSP)
- Page 13 HOOD OPTIONS 1.3 STAINLESS STEEL WALL SPLASH PANELS...
- Page 14 HOOD OPTIONS 1.4...
- Page 16 ® S&P USA Ventilation Systems, LLC 6393 Powers Avenue Jacksonville, FL 32217 T. 904-731-4711 • F. 904-737-8322 www.solerpalau-usa.com...
