Installation

3.3.6. Using two Profilers with RS232 or RS485

When using RS232 or RS485 it is still possible to use two Profilers, but each
must have their own communications channel to the topside controller (i.e. a
dedicated COM Port for each unit).
Seanet Pro must then be set to use the Profilers in the Free Run mode. See
the section called "Setup" for more details.
0374-SOM-00002, Issue: 04
Note

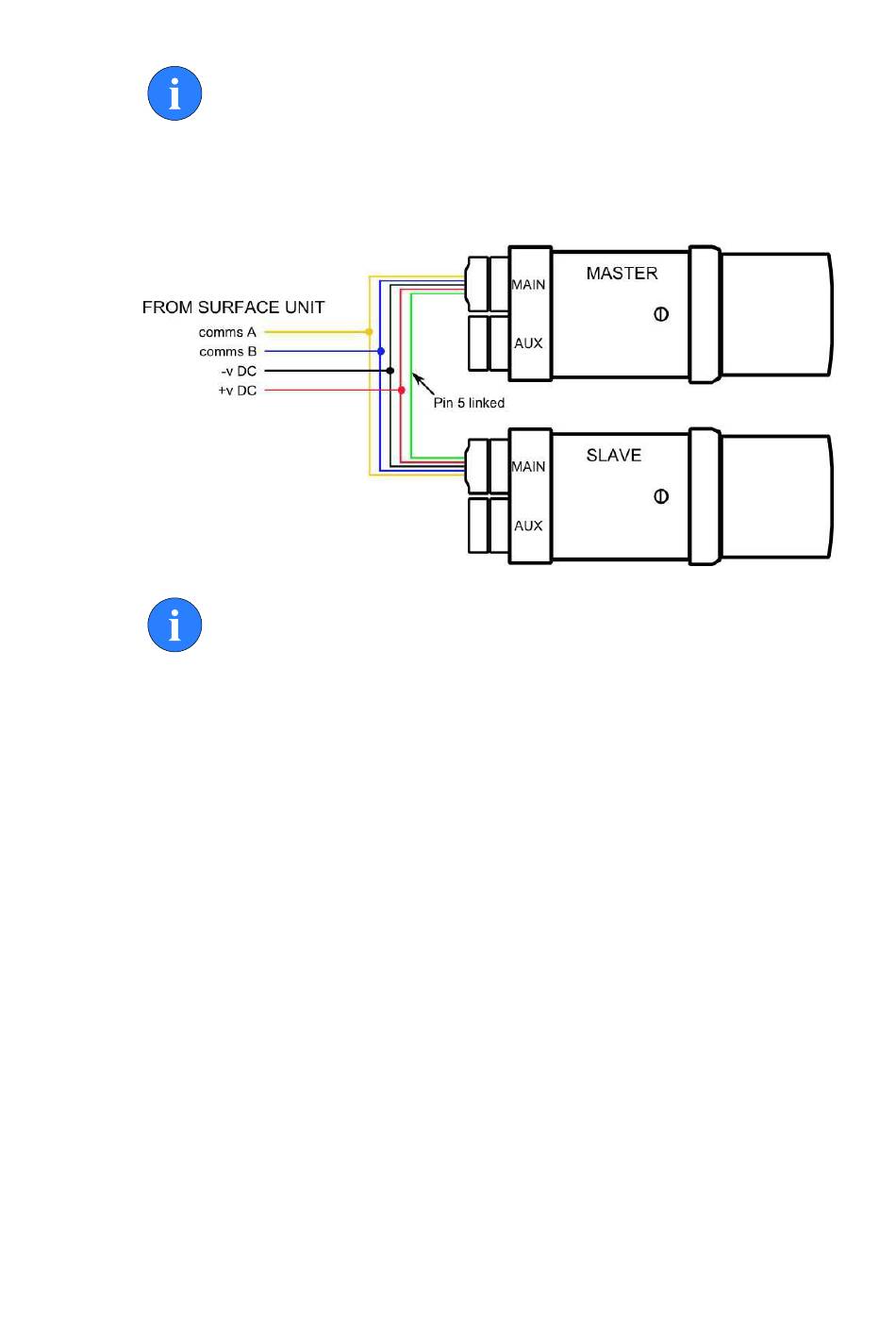

If using the dual Profilers with a Tritech International Ltd SeaHub
or SCUv5 it is possible to link pin 5 at the surface and use standard
cables instead. Refer to the SeaHub or SCU manual for further
details.
Note
Wire colours shown correspond to standard Tritech International
Ltd 6-pin connector and cable.
