CONNECTING EXTERNAL EQUIPMENT

TV/AV Selection

Allows to switch between TV and external modes, By
repeatedly pressing the remote control TV/AV or the TV top
panel TV/AV button, the on-screen display is changed as
shown :
RF >AV 1 >AV 2 >DVD >DTV
But it is changed according to whether you connect
S-VIDEO 1(S-VIDEO 2) or not.
If you connect S-VIDEO 1 (S-VIDEO 2), SVHS 1 (SVHS 2)
is displayed instead of AV 1 (AV 2).
That is, S-VIDEO 1 (S-VIDEO 2) & AV 1 (AV 2) can not be
displayed at the same time.

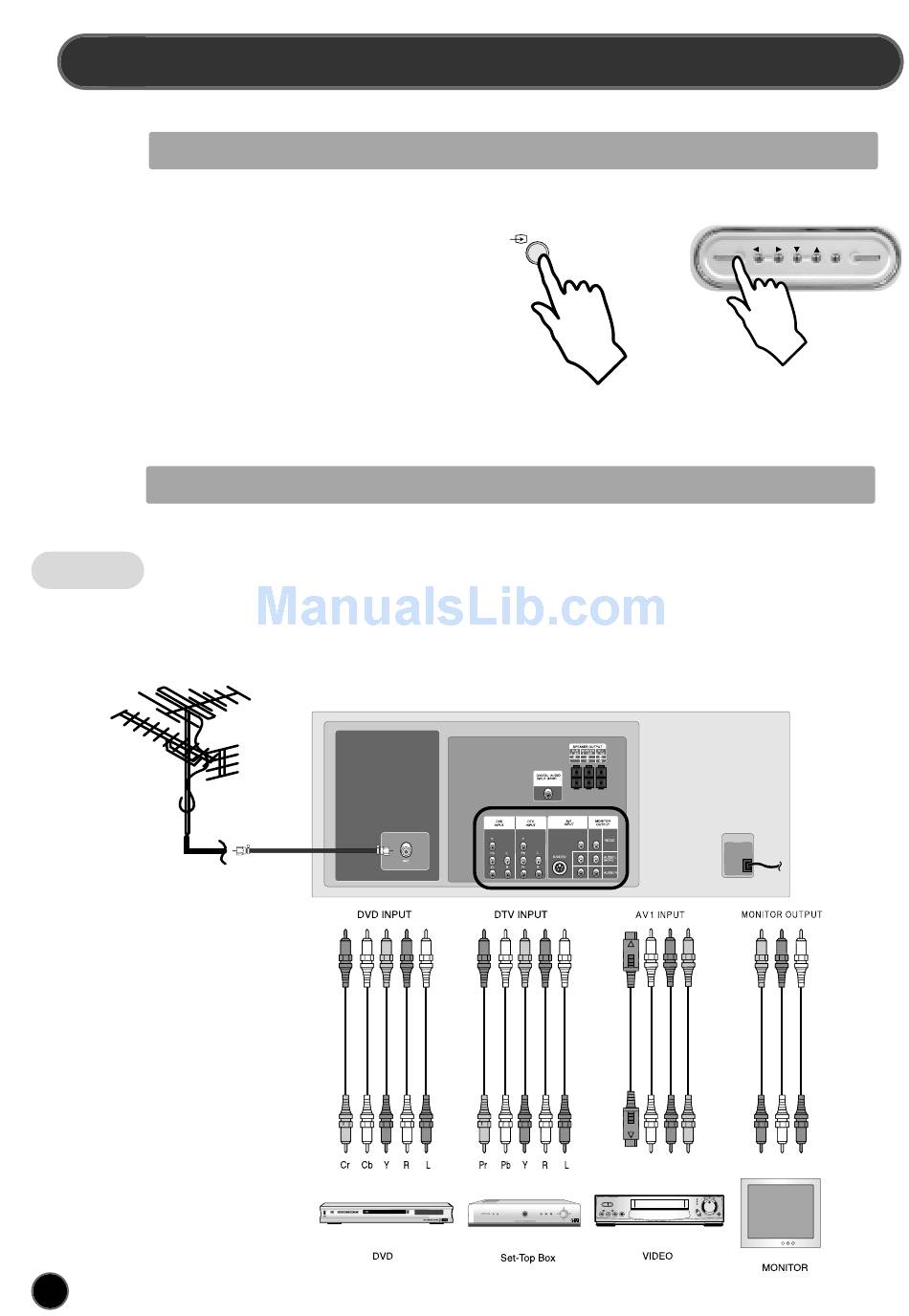

Connection to a camcoder or other video player

Connect the AUDIO / VIDEO OUT terminal of your video player (or camcoder) to AUDIO / VIDEO
BACK
IN terminal of with AUDIO / VIDEO connecting cable.
When marking connection,please ensure that you turn the main switch OFF to prevent any damage
to the equipment.
Remark : DVD INPUT is 576i input only and DTV INPUT is 576p or 1080i(50Hz) input only.
8
If there are wrong connections,TV does not display any picture.
