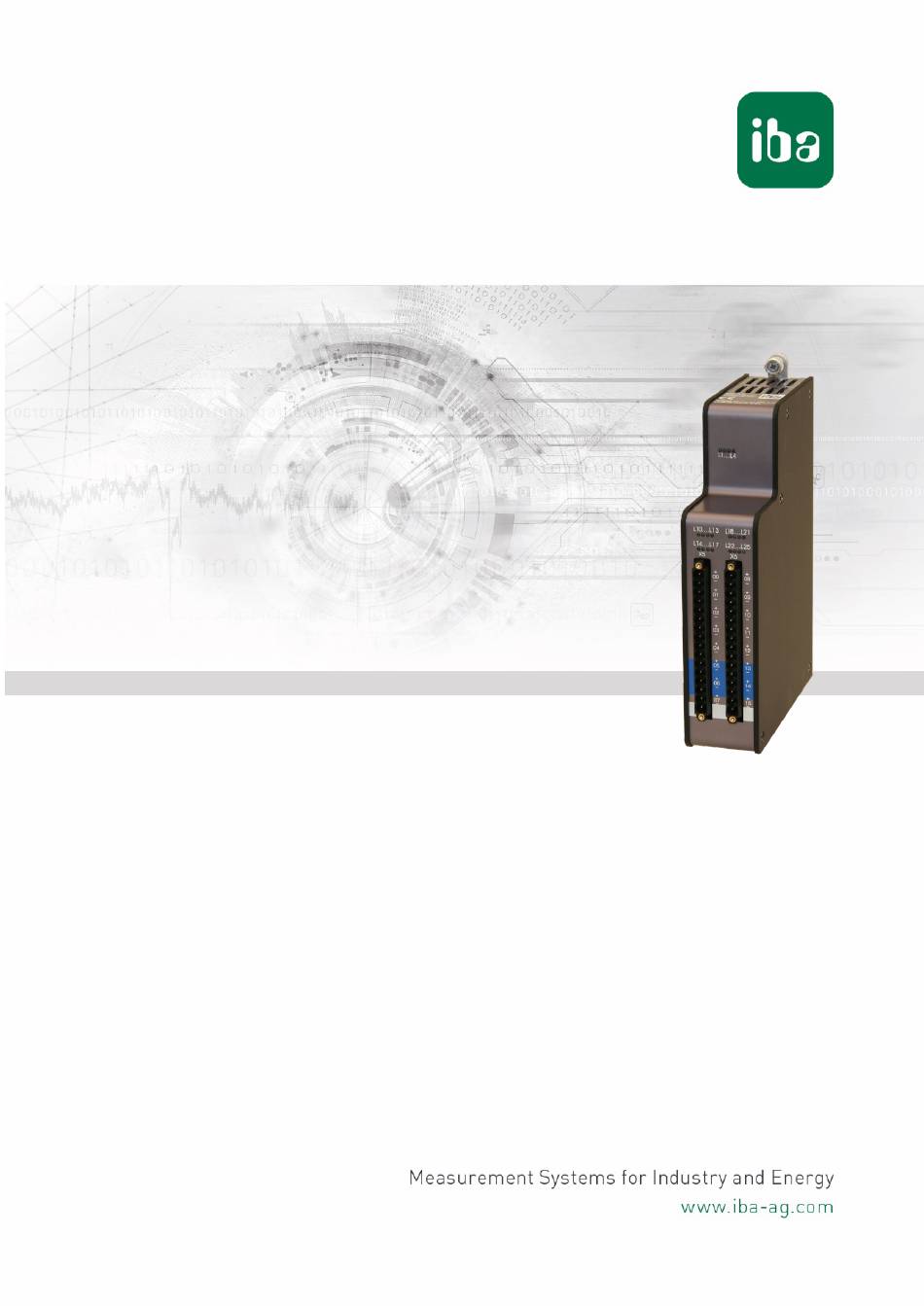

- Page 1 ibaMS16xDI-24V/-220V Input module for digital signals Manual Issue 1.4...
- Page 2 However, the information in this publication is updated regularly. Required corrections are contained in the following regulations or can be downloaded on the Internet. The current version is available for download on our web site www.iba-ag.com. Copyright notice Windows is a label and registered trademark of the Microsoft Corporation.
-
Page 3: Table Of Contents
Update via ibaPDA ..................19 Module Information / Diagnostics ..............20 8.4.1 Diagnostics ....................20 8.4.2 Webinterface ....................20 8.4.3 „info“ tab ...................... 20 8.4.4 „notes“ tab ....................20 iba Applications ..................... 22 Configuration in ibaPDA ................22 Issue 1.4... - Page 4 Manual ibaMS16xDI-24V/-220V Configuration in ibaLogic-V5 ............... 25 9.2.1 Configuring signals ..................25 9.2.2 Configuring the debounce filter..............27 Technical Data ....................29 10.1 Main data ....................29 10.2 Digital inputs ....................30 10.3 Dimensions ....................31 Support and contact ..................32 Issue 1.4...
-
Page 5: About This Manual
In this manual, you learn a lot about the design of the ibaMS16xDI-24V/-220V device and how to use and operate them. You can find a general description of the iba-modular system and further information about the design of the central units and how to use and operate them in separate manuals. -
Page 6: Target Group
Manual ibaMS16xDI-24V/-220V Target group This manual addresses in particular the qualified professionals who are familiar with handling electrical and electronic modules as well as communication and measurement technology. A person is regarded to as professional if he/she is capable of assessing safety and recognizing possible consequences and risks on the basis of his/her specialist training, knowledge and experience and knowledge of the standard regulations. -
Page 7: Used Symbols
ibaMS16xDI-24V/-220V Manual Used symbols If safety instructions or other notes are used in this manual, they mean: The non-observance of this safety information may result in an imminent risk of death or severe injury: • By an electric shock! • Due to the improper handling of software products which are coupled to input and output procedures with control function! If you do not observe the safety instructions regarding the process and the system or... -
Page 8: Introduction
Introduction The modules ibaMS16xDI-24V and ibaMS16xDI-220V are members of the iba-modular system. The design and the handling of the modules are similar, they only differ in their signal level. By way of an example this description is based on the ibaMS16xDI-24V module. -
Page 9: Scope Of Delivery
ibaMS16xDI-24V or ibaMS16xDI-220V device 2 x 16-pin multi-pin connector, clamp type terminal (contact spacing 5.08) Manual (German and English) DVD „iba Software & Manuals“ (only for single delivery) Safety instructions Proper use The device is an electrical apparatus. It is only allowed to use the device for the following applications: ... -
Page 10: System Requirements
Manual ibaMS16xDI-24V/-220V System Requirements Hardware Central unit: ibaPADU-S-IT-2x16 or ibaPADU-S-CM (version 02.10.001 or later) Backplane unit, e. g. ibaPADU-B4S Software ibaPDA version 6.34.0 or later ibaLogic-V5 version 5.0.2 or later Note The use of ibaLogic-V5 requires the central unit ibaPADU-S-IT-2x16. If the module is used with the predecessor ibaPADU-S-IT-16, only ibaLogic-V4 can be used. -
Page 11: Mounting, Connecting, Dismounting
ibaMS16xDI-24V/-220V Manual Mounting, Connecting, Dismounting Works on the device must NOT be done when it is under voltage! Always disconnect the central unit from the power supply! Note Mount one or more modules on the right next to the central unit (slot X2 to X5 can be freely selected). -
Page 12: Device Description
Manual ibaMS16xDI-24V/-220V Device description Views Fixing screws Operating status indicators L1 to L4 Status LEDs L10 to L25 of the digital inputs 00 to 15 Connector X5 for digital inputs 00 to 07 Connector X6 for digital inputs 08 to 15 Figure 1: Front view Grounding screw (only with ibaMS16xDI-220V) Figure 2: Bottom view... -
Page 13: Indicator Elements
Access to the backplane bus L3: white L4: red Normal status, no faults Flashing Device failure Important note When the LED L4 indicates a failure, please contact the iba Support. 7.2.2 Status of digital inputs LED per channel Status Description L10 … L25... -
Page 14: Digital Inputs X5, X6
Manual ibaMS16xDI-24V/-220V Digital inputs X5, X6 7.3.1 Connection diagram / Pin assignment Here, you can connect 16 input signals (0…15), each bipolar and electrically isolated. Each channel is connected by means of two-wire connection. Due to the reverse polarity protection, the measuring signal is indicated logically correct, even if the connection is polarity-reversed. - Page 15 ibaMS16xDI-24V/-220V Manual Pin assignment X5 Pin... Connection X6 Pin... Connection Digital input 00 + Digital input 08 + Digital input 00 − Digital input 08 − Digital input 01 + Digital input 09 + Digital input 01 − Digital input 09 − Digital input 02 + Digital input 10 + Digital input 02 −...
-
Page 16: Debounce Filters
Manual ibaMS16xDI-24V/-220V 7.3.2 Debounce filters For the digital inputs, there are four debounce filters for each. These can be chosen and configured for each signal independently. You have got the following filters at your disposal: „Off“ (without filter) „Stretch rising edge“ ... - Page 17 ibaMS16xDI-24V/-220V Manual „Stretch both edges“ With the first edge, the output signal (ocher) follows the initial signal (blue) and keeps the logical level for the duration of the defined debounce time. Thereafter, the channel is transparent again and waits for the next edge – be it rising or falling. Figure 6: Debounce filter: „Stretch both edges“...
-
Page 18: Start-Up / Update
Support. Overall Release Version The „overall release version“ provides information about the software version of the entire iba-modular system. You can find it on the Website of the central unit or in the I/O Manager of ibaPDA. Important note If you require support, specify the „overall release version“. -
Page 19: Update Via Web Interface
Important note The Web interface is available only with the central unit ibaPADU-S-IT-2x16. Start the Website of the iba-modular system in your browser and select the central unit. On the “update“ tab, click on the <Browse…> button and choose the <padusit2x16_ v[xx.yy.zzz].iba>... -
Page 20: Module Information / Diagnostics
Important information about the iba-modular system, like hardware version, firmware version, FPGA version and serial number is displayed in the “Diagnostics” tab. Open the ibaPDA I/O Manager and choose your iba-modular system in the tree structure (see also the figure above). - Page 21 ibaMS16xDI-24V/-220V Manual Figure 11: „notes“ tab Issue 1.4...
-
Page 22: Iba Applications
Other documentation If you want to install the iba-modular system at first, refer to the manual of the central unit, chapter “Configuration with ibaPDA”. If the module is detected, click on the module in the signal tree and the “General” tab appears. - Page 23 ibaMS16xDI-24V/-220V Manual Basic settings Module Type Display of module type (read only) Locked True: the module can only be changed by an authorized user. False: the module can be changed by any user. Enabled Data capturing for this module is enabled. ...
- Page 24 Manual ibaMS16xDI-24V/-220V The following settings apply to the “Digital” tab: Figure 14: I/O Manager ibaMS16xDI-24V- Digital tab Name You can enter a name for the signal and two additional comments (click on the icon in the Name field). Debounce filter In the dropdown menu, you can choose the operating mode for the debounce filter.
-
Page 25: Configuration In Ibalogic-V5
ibaMS16xDI-24V/-220V Manual Configuration in ibaLogic-V5 Other documentation Combined with ibaLogic-V5, an ibaPADU-S-IT-2x16 device can be used to realize individual signal pre-processing or stand-alone applications. You find the basic way of proceeding description in the separate ibaPADU-S-IT-2x16 manual. This manual describes only the signals belonging to this module. 9.2.1 Configuring signals The signals can be configured in the I/O Configurator of ibaLogic-V5. - Page 26 Manual ibaMS16xDI-24V/-220V Figure 16: Outputs ibaMS16xDI-24V If “Buffered Access“ is enabled, you can see additional input and output signals. Note You need to apply the “Buffered Access“ by clicking on the <Apply> button. Only then, you will see additional signals in the signal tree that can be configured as output or input resources.
-
Page 27: Configuring The Debounce Filter
ibaMS16xDI-24V/-220V Manual DebTime_Ch[00...15] Debounce time for the single digital signal Additional signals for buffered access BufferFillCount Counter, when buffer is filled BufferOverrun Counter for Buffer-overrun Additional output signals for buffered access BufferSize Buffersize SubSampling Subsampling of the signals 9.2.2 Configuring the debounce filter If you want to use debounce filters, these are made as configuration output and configured as Off-task connector (OTC) or function block. - Page 28 Manual ibaMS16xDI-24V/-220V Now, connect the OTC and the signal on the margin of the programming surface. Create a new OTC, assign a meaningful name, e.g. debounce time and choose “Input” as type. Enter the debounce time in µs in the “Default value“ field. The value can be 65535 at max.
-
Page 29: Technical Data
ibaMS16xDI-24V/-220V Manual Technical Data 10.1 Main data Short description Name ibaMS16xDI-24V ibaMS16xDI-220V Description Input module with 16 digital inputs Order number 10.124201 10.124200 Power supply, interfaces, indicators Power supply DC 24 V, internal via backplane bus Power consumption Up to 8 W Indicating elements Indicators (LEDs) 4 LEDs for device status... -
Page 30: Digital Inputs
47 CFR § 2.1077 Compliance Information Unique Identifier: 10.124200 ibaMS16xDI-220V 10.124201 ibaMS16xDI-24V Responsible Party - U.S. Contact Information iba America, LLC 370 Winkler Drive, Suite C Alpharetta, Georgia 30004 (770) 886-2318-102 www.iba-america.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 31: Dimensions
ibaMS16xDI-24V/-220V Manual 10.3 Dimensions Figure 20: Module dimensions ibaMS16xDI-24V (dimensions in mm) Figure 21: Module dimensions ibaMS16xDI-220V (with groundig screw, dimensions in mm) Issue 1.4... -
Page 32: Support And Contact
Mailing address iba AG Postbox 1828 D-90708 Fuerth Germany Delivery address iba AG Gebhardtstrasse 10 DE-90762 Fuerth Germany Regional and Worldwide For contact data of your regional iba office or representative please refer to our web site www.iba-ag.com. Issue 1.4...
