seca 644

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 644 and is the answer not in the manual?

Questions and answers

Related Manuals for Seca 644

Summary of Contents for Seca 644

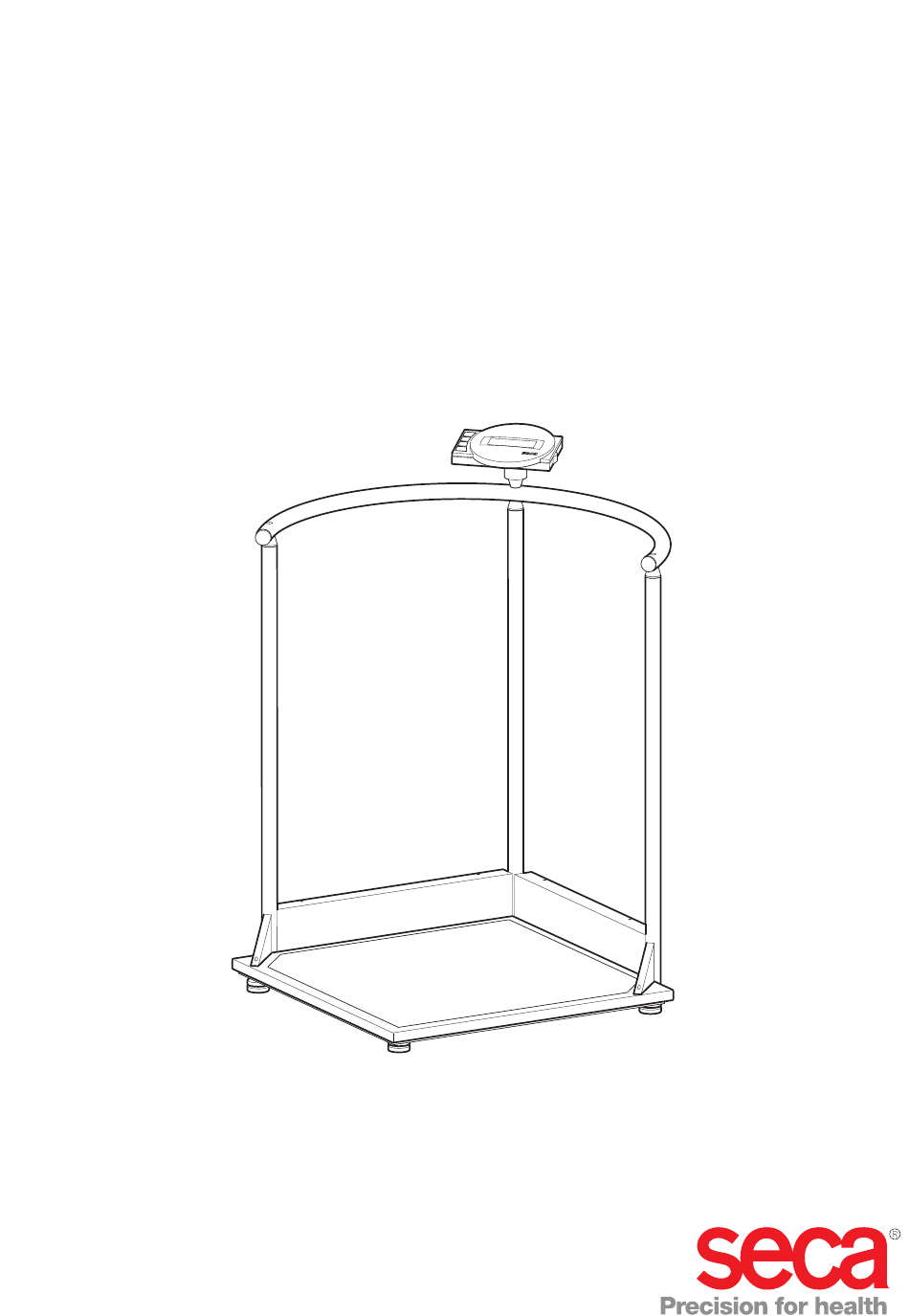

  • Page 1 644...

  • Page 2: Table Of Contents

    English TABLE OF CONTENTS English 1. Device description ... 63 Fitting the display housing . . . 83 Fitting the triangular cover 1.1 Intended use ....63 panels .
  • Page 3 8. Function check ... . . 109 seca wireless groups ..101 9. Troubleshooting ... . 109 Channels .

  • Page 4: Device Description

    644 Via the network, measuring results seca 360° wireless can be transmitted wirelessly to a seca wireless printer or to a PC equipped with PC software seca analytics and the seca USB wireless adapter. can be moved on casters.

  • Page 5: User Qualification

    1.3 User qualification Assembly Devices that are shipped partially assembled may only be mounted by sufficiently qualified persons such as specialist dealers, hospital technicians or seca service technicians. Operation The device may only be operated by healthcare professionals. 2. SAFETY INFORMATION 2.1 Safety information in these instructions for use...

  • Page 6: Basic Safety Instructions

    Technical modifications may not be made to ► the device. The device does not contain any parts for servicing by the user. Only have servicing and repairs performed by an authorized seca Service partner. You can find Safety information • 65...

  • Page 7: Preventing Electric Shock

    Only use original seca accessories and spare ► parts, otherwise seca will not grant any warranty. CAUTION! Patient hazard, malfunction Keep other electrical medical devices, e.g.

  • Page 8: Avoiding Infections

    English Avoiding infections WARNING! Risk of infection Before and after every measurement, wash ► your hands to reduce the risk of cross- contamination and nosocomial infections. Hygienically reprocess the scale regularly as ► described in the respective section in this document.
  • Page 9 For devices with power supply operation: ► Disconnect the power supply unit from the mains socket if you intend to not use the device for a longer period of time. Only this way it can be ensured that the device is de- energized.

  • Page 10: Handling Measuring Results

    Before you electronically save measurement ► values determined using this device and use them further (e.g. in seca PC software or in a hospital information system), make sure that the measurement values are plausible. If measurement values are transmitted to ►...

  • Page 11: Handling Batteries And Battery Packs

    (incl. rechargea- ble batteries). This prevents acid from leaking into the device. If acid leaked into the device, discontinue ► use. Have the device checked by an author- ised seca Service partner and repaired if necessary. 70 •...

  • Page 12: Overview

    English 3. OVERVIEW 3.1 Controls Rear view Control Function Display housing Central control and display element Switch scale on and off Arrow key • During weighing: - press briefly: activate hold function - press and hold: activate tare function tare •...

  • Page 13: Symbols In The Display

    Control Function Arrow key • During weighing: - press briefly: activate BMI function - press and hold: call up menu • In the menu: - select submenu, select menu item - reduce value Enter key • During weighing (if wireless network is set up): - press briefly: send measuring result to devices ready to receive it (PC with USB wireless adapter) - press and hold: print out measuring result (wireless...

  • Page 14: Marking On The Device And On The Rating Plate

    • max xxx mA: maximum current consumption x-y V max. xxx mA • : note polarity of device plug use compatible • : operate device with direct current seca adapter only Do not dispose of device with household waste Overview • 73...

  • Page 15: Marking On The Packaging

    3.4 Marking on the packaging Protect from moisture Arrows indicate top of product Transport and store in an upright position Fragile Do not throw or drop Permitted min. and max. temperature for transport and storage Permitted min. and max. moisture for transport and storage Not sterile Do not reuse...

  • Page 16: Menu Structure

    Maximum configuration per Print wireless group *Funknetzwerk seca 360° Wireless: - 1 baby scale Raum (ID): - 1 personal scale Max. drei seca Funkräume: 0, 1, 2 Year - 1 length measuring rod Month Maximal-Konfiguration pro Funkraum: - 1 wireless printer Time...

  • Page 17: Before You Really Get Started

    4. BEFORE YOU REALLY GET STARTED… 4.1 Scope of delivery Components Component Pcs. Rear handrail support with display head Right-hand railing support with opening for power pack connection Weighing platform Handrail Caster bar Side bar with opening for power pack connection Display bracket Power pack with adapters (depending on model: Euro connector power pack)

  • Page 18: Connecting Elements

    English Connecting elements Component Pcs. Hex socket head screw M 5 x 12 Pan-head tapping screw 6.3 x 38 Raised countersunk head screw M 6 x 40 Hex socket head screw M 6 x 50 Pan-head tapping screw 2.9 x 9.5 Pan-head tapping screw 3.5 x 9.5 Allen key, 4 mm, not shown Phillips screwdriver size 1, not shown...

  • Page 19: Assembling The Device

    4.2 Assembling the device We recommend that two people assemble the scale, as large individual parts have to be aligned and then screwed together. Preparing the weighing Corner for access platform Front Power pack connection Assembly bores for rear handrail support Assembly bores for right- Rear hand handrail support...

  • Page 20: Fitting The Right-Hand Handrail

    English Fitting the right-hand You need the following connecting elements for this handrail support assembly step: 3 x hex socket head screws, M 5 x 12 1. Hold the right-hand handrail support in position on the weighing platform as shown in the diagram above.

  • Page 21: Support

    Fitting the rear handrail You need the following connecting elements for this support assembly step: 1 x pan-head tapping 3 x hex socket head screws, M 5 x 12 screw 6.3 x 38 1. Hold the rear handrail support in position on the weighing platform as shown in the diagram above.

  • Page 22: Fitting The Handrail

    English Fitting the handrail You need the following connecting elements for this assembly step: 2 x raised countersunk head screws, M 6 x 40 1. Align the handrail so that the large bores point downwards. 2. Put the handrail on the three columns. 3.

  • Page 23: Fitting The Display Bracket

    Fitting the display You need the following connecting element for this bracket assembly step: 1 x cylinder bolt, M 6 x 50 1. Put the bracket holder in the bore above the central column. 2. Turn the display bracket until it engages audibly. 3.

  • Page 24: Fitting The Display Housing

    English Fitting the display You need the following connecting elements for this housing assembly step: 3 x pan-head tapping screws 2.9 x 9.5 Markings 1. Remove the transport securing device of the display housing. 2. Position the display housing on the display bracket in such a way that the position markings line up with one another.

  • Page 25: Fitting The Caster Bar And Side Bar

    Fitting the caster bar You need the following connecting elements for this and side bar assembly step: 10 x pan-head tapping screws 3.5 x 9.5 1. Place the caster bar on the rear handrail support as shown in the diagram above. 2.

  • Page 26: Connecting The Display Cable

    English Connecting the display ATTENTION! cable Malfunction due to installation errors If cables are strained during fitting, e. g. with sharp bends or kinked connectors, this may result in faulty displays and failure of the display. Route all cables to prevent sharp bends and ►...

  • Page 27: Establishing Power Supply

    4.3 Establishing power supply The scale is powered by a battery block or a power pack (both included in scope of supply). Depending on model, the scope of supply will include either a power pack with plug adapters or a power pack with a fixed Euro connector.
  • Page 28 Conventional power packs may deliver a higher voltage than is indicated on them. The scale may overheat, catch fire, melt or short-circuit. Use only original seca plug-in power packs ► with a 9 V or controlled 12 V output voltage.

  • Page 29: Operation

    5. OPERATION CAUTION! Bodily injury Perform a function check as described in the section entitled "Function check" on page 109 before using the device each time. 5.1 Setting up the scale Moving the scale 1. Tilt the device until it can move freely on the casters.

  • Page 30: Turning The Display Head

    English 2. Undo the knurled wheels. 3. Level the device by turning the foot screws. The air bubble in the spirit level must be located in the exact center of the circle. Spirit level 4. Tighten the knurled wheels in the direction of the arrow.

  • Page 31: Weighing

    Switching on the scale Press the Start key. ► All the elements of the display are shown briefly, then SECA appears in the display. The scale is operational when 0.00 appears in the display. Weighing a patient 1. Ensure that the scale has no load.

  • Page 32: Keeping The Measurement Result In The Display (Hold)

    English 6. Read off the measurement result. The additional weight is automatically deducted. 7. To deactivate the TARE function, press the (hold/tare) arrow key until the message "NET" is tare no longer displayed or turn off the scale. NOTE The maximum weight which can be displayed is reduced by the weight of the objects already placed on the scale.

  • Page 33: Determining And Rating Body Mass Index (Bmi)

    Determining and rating Body mass index relates height and weight to one body mass index (BMI) another and consequently allows more accurate infor- mation than ideal Broca weight, for example. A toler- ance range is quoted which is considered ideal for health.

  • Page 34: Sending Measurement Results To Wireless Receivers

    NOTE The prerequisite for this function is that the devices are registered together in one wireless group (see "The seca 360° wireless network" on page 101). 1. Perform the height measurement. 2. Briefly press the Enter key (send/print) of the length measuring rod.

  • Page 35: Switching Off The Scale

    4. Press and hold the Enter key (send/print) of the scale. The measured value is sent to the wireless printer. BMI is calculated. Height, weight and BMI are printed out. Switching off the scale Press the Start key. ► NOTE When in battery mode, the scale will switch off automatically after a short period if no load is placed on it.

  • Page 36: Other Functions (Menu)

    English 5.3 Other functions (menu) Other functions are available to you in the menu for the scale. This enables you to configure the scale to suit your conditions of use perfectly. …. Reset Autohold Beep Press Hold * The description of menu item "rF" can be found in the section entitled "Operating the scale in a wireless group (menu)"...

  • Page 37: Deleting Saved Values Automatically (Aclr)

    4. Confirm your selection with Enter (send/print). The current setting for the menu item or a submenu are displayed (in this case: level "0"). 5. To amend the setting or call up a different sub- menu, press one of the arrow keys until the desired tare setting (in this case: level "2") is displayed.
  • Page 38 English The device has three memories for weights. You can save various weights and call them up individually depending on the initial situation, so that they are auto- matically deducted from the measurement result. Sto 1 (Weight) Sto 2 (Weight) Sto 3 (Weight) Net Weight 1.

  • Page 39: Activating The Auto Hold (Ahold) Function

    Activating the auto hold When you activate the auto hold function, the measure- (AHOLd) function ment result for every weighing operation continues to be displayed after the weight has been removed from the scale. It is then no longer necessary to activate the Hold function manually for each individual weighing operation.

  • Page 40: Setting Filtering (Fil)

    English Setting filtering (FIL) Filtering (FIL) allows you to reduce interference (e.g. as a result of patient movement) when determining weight. 1. Select the item "FIL" from the menu. 2. Confirm your selection. The current setting is displayed. 3. Select a filtering level. –...

  • Page 41: Restoring Factory Settings (Reset)

    Restoring factory You can restore the factory settings for the functions settings (rESEt) below. Function Factory setting Auto hold (AHOLd) Model-dependent Beep (PrESS) Beep (Hold) Filtering (FIL) Autoclear (Aclear) Model-dependent Pre-tare (Pt) 0 kg Height for Body Mass Index 170 cm (BMI) Unit of weight Wireless module (SYS)

  • Page 42: The Seca 360° Wireless Network

    The following combination of devices is possible for each wireless group: • 1 baby scale • 1 personal scale • 1 length measuring rod • 1 seca wireless printer • 1 PC with seca USB wireless adapter The seca 360° wireless network • 101...

  • Page 43: Channels

    "MO 3"). The numbers have the following meaning: • 1: personal scale • 2: length measuring rod • 3: wireless printer • 4: PC with seca USB wireless adapter • 7: baby scale • 5, 6 and 8-12: reserved for system expansion 102 •...

  • Page 44: Operating The Scale In A Wireless Group (Menu)

    6.2 Operating the scale in a wireless group (menu) All the functions you need to operate the device in a seca wireless group can be found in the "rF" submenu. Information for navigating in the menu can be found on page 95.
  • Page 45 3. Select the item "rF" from the menu. 4. Confirm your selection. 5. Select the "Lrn" (Learn) menu item from the "rF" submenu. 6. Confirm your selection. The wireless group currently set (in this case: wireless group 0 "Id 0") is displayed. If wireless group "0"...

  • Page 46: Activating Automatic Send (Asend)

    1. Switch on the device. 2. Select the "ASEnd" menu item from the "rF" submenu and confirm your selection. 3. Select the "On" setting and confirm your selection. You exit the menu automatically. The seca 360° wireless network • 105...

  • Page 47: Selecting Print Option (Aprt)

    NOTE This function is only accessible if a seca wireless printer has been integrated in the wireless group via the "Learn" function. 1. Switch on the device. 2. Select the "APrt" menu item from the "rF" submenu and confirm your selection.

  • Page 48: Hygiene Treatment

    English 2. Select the "tIME" menu item from the "rF" submenu. 3. Confirm your selection. The current setting for "Year" (YEA) is displayed. 4. Set the correct year. 5. Confirm your selection. 6. Repeat steps 3. and 4. accordingly for "month" (Mon), "day"...

  • Page 49: Cleaning

    Use only disinfectants free of chlorine and ► alcohol which are explicitly suitable for acrylic sheet and other sensitive surfaces (active ingredient: quaternary ammonium compounds, for example). Do not use caustic or abrasive detergents. ► Do not use organic solvents (e.g. white spirit ►...

  • Page 50: Function Check

    "Troubleshooting" from page 109, you may not use the device. Have servicing and repairs carried out ► exclusively by seca service or by an authorized service partner. Please see the section entitled "Servicing" on ►...
  • Page 51 • The device was unable to send measurement results to the wireless receiver (seca wireless printer or PC with seca USB wireless adapter). - Ensure that the scale is integrated in the wire- less network - Ensure that the receiver is switched on •...

  • Page 52: Servicing

    Incorrect measurements as a result of poor servicing Have servicing and repairs carried out ► exclusively by seca Service or by an authorized service partner. You can find service partners in your area at ► www.seca.com or by sending an e-mail to service@seca.com.

  • Page 53: Technical Data

    11.TECHNICAL DATA Technical data seca 644 Dimensions of scale • Depth 750 mm • Width 750 mm • Height 1140 mm Dimensions of weighing platform • Depth 600 mm • Width 600 mm • Height 45 mm Net weight approx. 24 kg Temperature range •...

  • Page 54: Optional Accessories

    Country-specific versions seca 264 Wireless printers • Country-specific versions seca 360° wireless printer 465 • Country-specific versions seca 360° wireless printer advanced 466 PC software • Application-specific license seca analytics 115 packages 456-00-00-009 seca 360° wireless USB adapter 456 13.SPARE PARTS...

  • Page 55: Disposal

    You should therefore keep all packaging. The warranty shall become null and void where the device is opened by persons not expressly authorised to do so by seca. 114 •...

  • Page 56: Declaration Of Conformity

    English In the event of a warranty issue, please contact your local seca office or the dealer from whom you ordered the product. 16.DECLARATION OF CONFORMITY seca gmbh & co. kg hereby declares that the product meets the terms of the applicable European directives.
