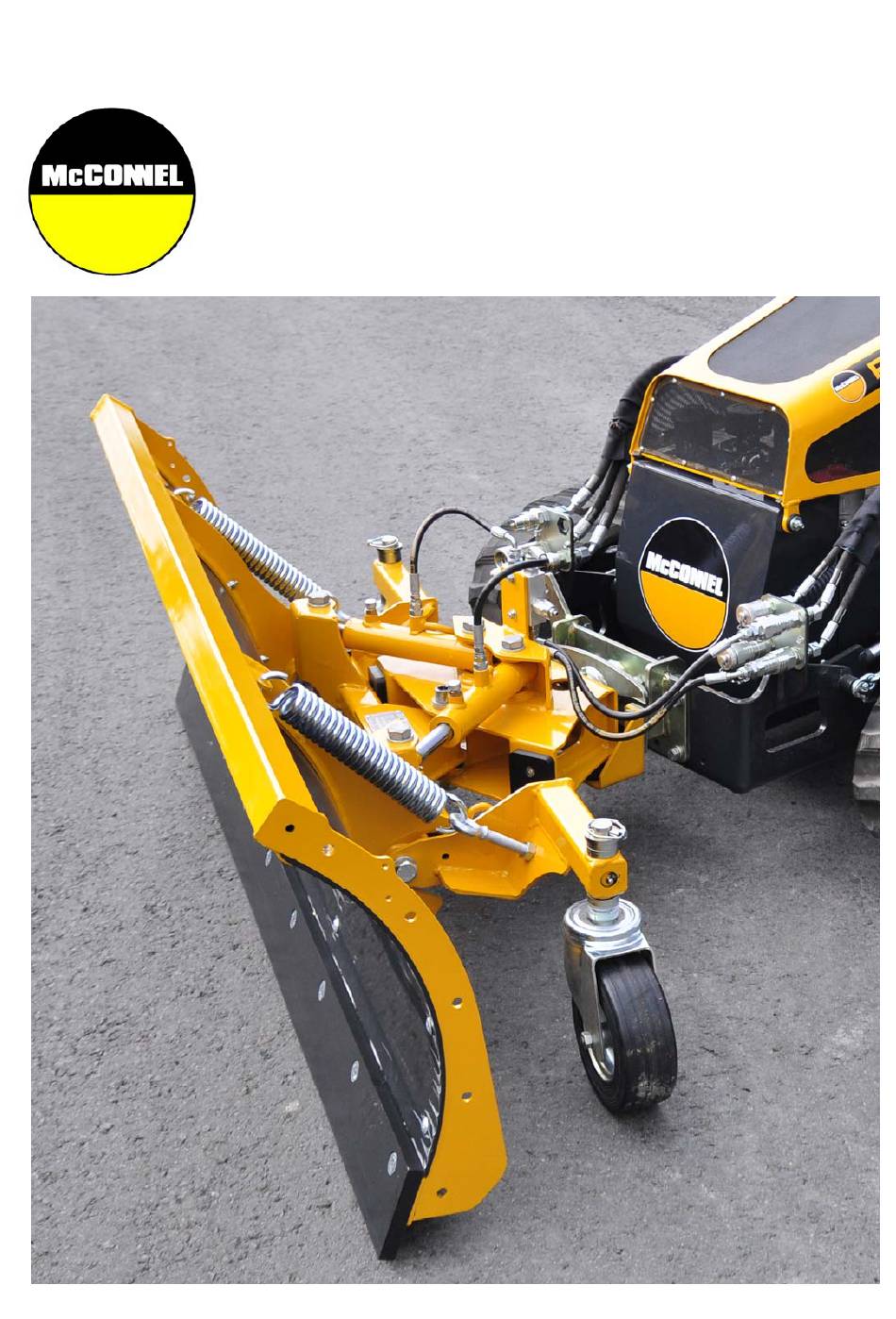

- Page 1 McCONNEL Publication 735 February 2013 Part No. 22675.35 ROBO-BLADE ROBOCUT ACCESSORY Operation & Parts Manual...
- Page 2 VERIFICATION OF WARRANTY REGISTRATION DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION It is imperative that the selling dealer registers this machine with McConnel Limited before delivery to the end user – failure to do so may affect the validity of the machine warranty.
- Page 4 1500 hours. Engine warranty will be specific to the Manufacturer of that unit. 1.02. All spare parts supplied by McConnel Ltd and purchased by the end user are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 6 months.
- Page 5 2.02. Any fault must be reported to an authorised McConnel Ltd dealer as soon as it occurs. Continued use of a machine, after a fault has occurred, can result in further component failure for which McConnel Ltd cannot be held liable.
- Page 6 MISCELLANEOUS 4.01. McConnel Ltd may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall be deemed to be a waiver of any other term. 4.02. If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the invalidity of such provision shall not invalidate any other provisions herein.
- Page 7 DECLARATION OF CONFORMITY Conforming to EU Machinery Directive 2006/42/EC McCONNEL LIMITED, Temeside Works, Ludlow, Shropshire SY8 1JL, UK Hereby declare that: The Product; Blade Attachment for Remote Controlled Mower Product Code; RMOW Serial No. & Date ………………………………… Type ………………………… Manufactured in; Italy Complies with the required provisions of the Machinery Directive 2006/42/EC The machinery directive is supported by the following harmonized standards;...
- Page 8 Temeside Works Ludlow Shropshire England Telephone: +44 (0)1584 873131 www.mcconnel.com Operating, servicing and maintaining this equipment can expose you to chemicals including gasoline, diesel fuel, lubricants, petroleum products, engine exhaust, carbon monoxide, and phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Page 10: Table Of Contents
CONTENTS Operator Section General Information Introduction Machine Identification Identification of Components Specifications Safety Information Attachment & Operation Height Adjustment Maintenance Parts Section Chassis Module Hydraulic Installation... -
Page 12: General Information
GENERAL INFORMATION Read this manual before fitting or operating the machine or accessory. Whenever any doubt exists contact your local dealer or the McConnel Service Department for assistance. Only use ‘Genuine McConnel Parts’ on McConnel machinery and equipment. DEFINITIONS The following definitions apply throughout this manual;... -
Page 13: Introduction
INTRODUCTION The McConnel ‘ROBO-BLADE’ is a universal blade attachment for use on McConnel Robocut Mowers. The attachment has been designed for use as a professional tool for clearing snow or grading soil and features a hydraulically adjustable blade angle and replaceable steel blade face. -
Page 14: Machine Identification
MACHINE IDENTIFICATION A machine identification plate is fitted to the machine in the location indicated below. Always quote the machine type and serial number as stated on the identification when ordering replacement parts. IDENTIFICATION OF COMPONENTS Frame Control Valve Scraper Hydraulic Ram (Tilt) Rubber Covering Mounting Plate... -
Page 15: Specifications
SPECIFICATIONS Machine Weight: 123kg. -
Page 16: Safety Information
SAFETY INFORMATION In addition to the general advice stated below, the main safety implications surrounding the use of this machine relate to the safe use of the Robocut machine; it is therefore vital that all users have read and understood all safety information in the operation manual provided with that machine. -
Page 17: Attachment & Operation
ATTACHMENT & OPERATION Attachment and removal of the machine must always be performed on a firm level site. Ensure bystanders are kept at a safe distance from the machines during the attachment process. The procedure for attaching the machine to a Robocut is as follows; Align the Robocut until its mounting plate (a) is centred and parallel to the universal blade’s mounting plate (b). -
Page 18: Height Adjustment
Height Adjustment The blade height is determined by the height position of the caster wheels (a), adjustment of which is controlled by spacer washers (d); washers are placed on the wheel pin either above or below the support beam (c) to give the desired height. The wheel units are secured in place with safety pins (b). -
Page 19: Maintenance
MAINTENANCE All maintenance, cleaning and repairing operations must be carried out with the engine turned off and the starting key removed. Before performing any cleaning or maintenance operations, wait for the machine and equipment to cool down. The machine should be inspected on a daily basis prior to work to ensure it is in good working condition, the following points should be addressed during routine inspections;... - Page 20 Replacing Hydraulic Hoses Check condition of hoses (a) and connections for signs of damage or leakage on a regular basis. Hydraulic hoses should replaced periodically (every 2000 hours or on a yearly basis). Damaged hoses must be replaced immediately. Lubrication Points The lubrication points indicated below should be greased every 50 hours.
-
Page 22: Parts Section
ROBO-BLADE Parts Section... -
Page 23: Chassis Module
ROBO-BLADE CHASSIS MODULE McCON NEL Module(s): 4000708... - Page 24 ROBO-BLADE CHASSIS MODULE McCON NEL Module(s): 4000708 REF. QTY. PART No. DESCRIPTION 4000708 CHASSIS MODULE 7315648 4000671 SLIDING BLOCK 4000672 HYDRAULIC RAM 4000192 HEAD PIVOT BRACKET 4000193 PIVOT JOINT 4000673 BLADE 4000669 RUBBER COVERING 4000670 RUBBER BLADE 4000674 ROCKER ARM...
- Page 25 ROBO-BLADE CHASSIS MODULE McCON NEL Module(s): 4000708...
- Page 26 ROBO-BLADE CHASSIS MODULE McCON NEL Module(s): 4000708 REF. QTY. PART No. DESCRIPTION 4000708 CHASSIS MODULE 9100205 SPRING WASHER 9100206 SPRING WASHER 4000357 KNURLED WASHER 4000116 BUFFER 4000368 GREASER 4000224 GREASER 4000690 BUSH 4000691 CONTROL VALVE 4000237 BUSH 4000238 WASHER...
-
Page 27: Hydraulic Installation
ROBO-BLADE HYDRAULIC INSTALLATION McCON NEL Module(s): 4000709... - Page 28 ROBO-BLADE HYDRAULIC INSTALLATION McCON NEL Module(s): 4000709 REF. QTY. PART No. DESCRIPTION 4000709 HYDRAULIC INSTALLATION 4000692 HYDRAULIC HOSE 4000693 HYDRAULIC HOSE 4000694 HYDRAULIC HOSE 4000695 HYDRAULIC HOSE 4000696 BLANKING PLUG 4000132 QUICK RELEASE COUPLING 4000140 * PLUG 4000135 QUICK RELEASE COUPLING...
- Page 30 McConnel Limited, Temeside Works, Ludlow, Shropshire SY8 1JL. England. Telephone: 01584 873131. Facsimile: 01584 876463. www.mcconnel.com...
