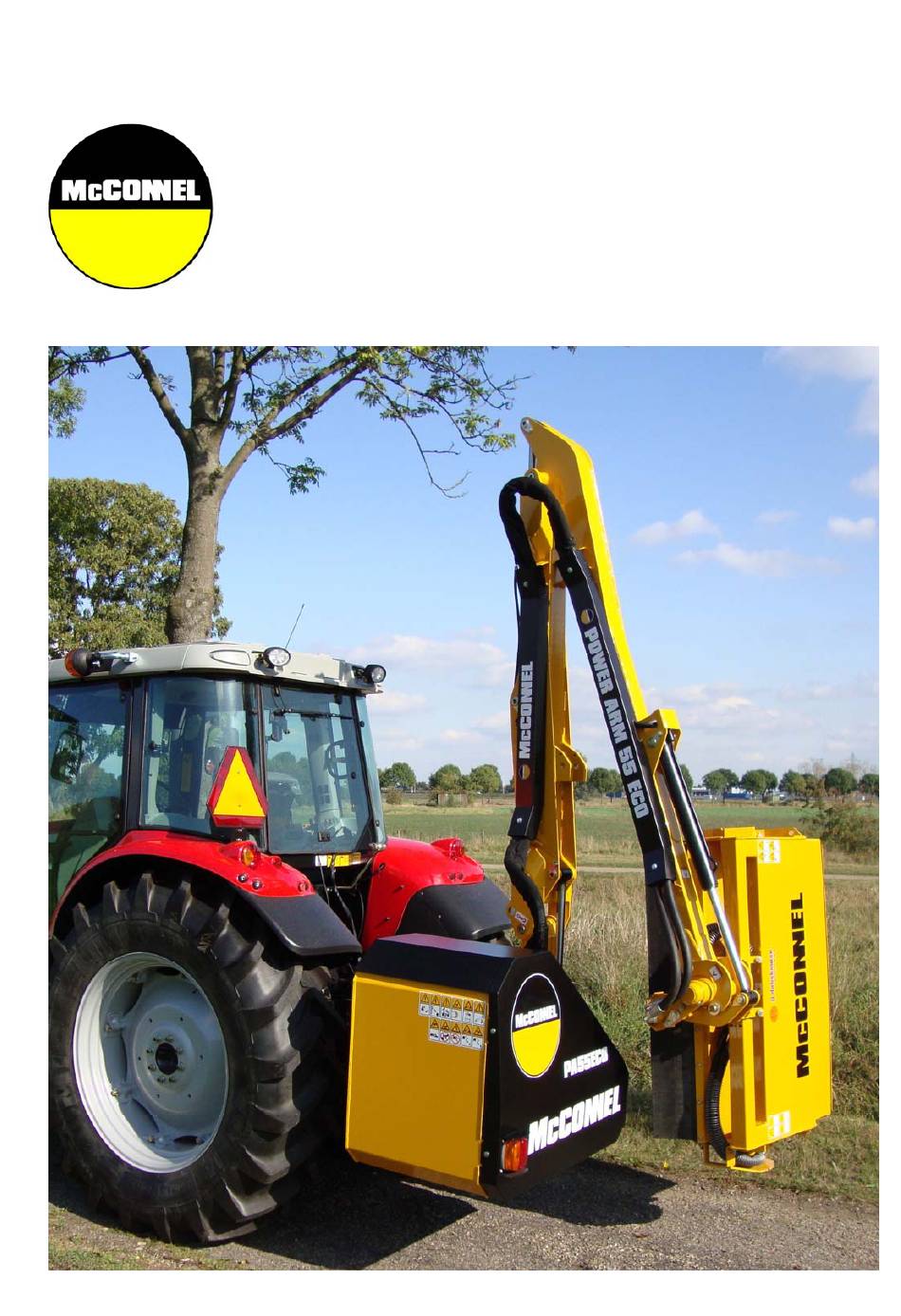

- Page 1 PA ECO Series Publication 671 March 2011 Part No. 22674.71 Revised: 12.10.12 55 & 60 ECO Mk2 HEDGECUTTER / GRASS MOWER Operator Manual...
- Page 2 VERIFICATION OF WARRANTY REGISTRATION DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION It is imperative that the selling dealer registers this machine with McConnel Limited before delivery to the end user – failure to do so may affect the validity of the machine warranty.
- Page 3 WARRANTY POLICY WARRANTY REGISTRATION All machines must be registered, by the selling dealer with McConnel Ltd, before delivery to the end user. On receipt of the goods it is the buyer’s re sponsibility to check that the Verification of Warranty Registration in the Operator’s Manual has been completed by the selling dealer.
- Page 4 2.02. Any fault must be reported to an authorised McConnel dealer as soon as it o ccurs. Continued use of a m achine, after a f ault has occurred, can result in further component failure for which McConnel Ltd cannot be held liable.
- Page 5 KONFORMITÄTSERKLÄRUNG Nach EG Maschinenrichtlinie 2006/42/EG Wir, McCONNEL LIMITED, Temeside Works, Ludlow, Shropshire SY8 1JL, UK Erklären hiermit, dass: Das Produkt; Traktor montierter Heckenmäher/ Trimmer Produkt-Kennziffer; PE50, PE55, PE60 Seriennummer & Datum ………………………....Modelle ……………… Hergestellt in; Großbritannien Übereinstimmt mit den erforderlichen Bestimmungen der Maschinenrichtlinie 2006/42/EG.
- Page 6 The inspection sheet on the foll owing page should be kept in this book a s a record. A second sheet is included for you to cut out and photocopy or the inspection sheets can be downloaded from our website at; http://www.mcconnel.com/support/aftersales/default.aspx?nav=After Sales...
- Page 8 POWER ARM PRE-OPERATION Inspection Power Arm ID ________________ Date: _______________ Shift: _______________ WARNING Before conducting the inspection, make sure the tractor engine is off, the key removed, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower head is resting on the ground or is securely blocked up and supported and all hydraulic pressure has been relieved.
- Page 9 TRACTOR PRE-OPERATION Inspection Power Arm ID ________________ Date: _______________ Shift: _______________ WARNING Before conducting the inspection, make sure the tractor engine is off, the key is removed all rotation has stopped and the tractor is in park with the parking brake engaged. Any implement attached to the tractor is firmly on the ground.
- Page 10 POWER ARM PRE-OPERATION Inspection Power Arm ID ________________ Date: _______________ Shift: _______________ WARNING Before conducting the inspection, make sure the tractor engine is off, the key removed, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the mower head is resting on the ground or is securely blocked up and supported and all hydraulic pressure has been relieved.
- Page 11 TRACTOR PRE-OPERATION Inspection Power Arm ID ________________ Date: _______________ Shift: _______________ WARNING Before conducting the inspection, make sure the tractor engine is off, the key is removed all rotation has stopped and the tractor is in park with the parking brake engaged. Any implement attached to the tractor is firmly on the ground.
-
Page 12: Table Of Contents
CONTENTS General Information Features Safety Information Fitting (Tractor Requirements) Tractor Preparation Delivery & Pre-Attachment Hydraulic Oil Attachment to Tractor PTO Driveshaft Installation Fitting Operator Controls Flailhead Attachment Running Up Procedure Emergency Stopping Pre-Work Preparation & Precautions Removal From Tractor Storage Operation Cable Controls Cable Rotor Control... - Page 14 For Safety and Performance … ALWAYS READ THIS BOOK FIRST McCONNEL LIMITED Temeside Works Ludlow Shropshire England Telephone: 01584 873131 www.mcconnel.com NOISE STATEMENT The equivalent daily personal noise exposure from this machine measured at the operators’ ear is within the range 78 – 85 dB, these figures apply to a normal distribution of use where the noise fluctuates between zero and maximum.
-
Page 15: General Information
GENERAL INFORMATION Read this manual before fitting or operating the machine. Whenever any doubt exists contact your dealer or the McConnel Service Department for assistance. Use only McConnel Genuine Parts on McConnel equipment and machines. DEFINITIONS - The following definitions apply throughout this manual: WARNING: An operating procedure, technique etc., which can result in personal injury or loss of life if... -
Page 16: Features
FEATURES PA50 Eco Models Linkage mounted. 5.0m reach Right hand cutting. Operator guard. Hydraulic safety breakaway. 95° powered slew. 200 litre hydraulic reservoir. Storage support legs. Choice of Flailheads. Choice of Controls. PA55 Eco Models ... -
Page 18: Safety Information
SAFETY SECTION This machine has the potential to be extremely dangerous, in the wrong hands it can kill or maim. It is therefore imperative that both owner, and operator of this machine, read and understand the following section to ensure that they are fully aware of the dangers that do, or may exist, and their responsibilities surrounding the use and operation of the machine. - Page 19 BEFORE USING THIS MACHINE YOU MUST: ▲ Ensure you read all sections of the operator handbook. ▲ Ensure the operator is, or has been, properly trained to use the machine. ▲ Ensure the operator has been issued with and reads the operator handbook. ▲...
- Page 20 ▲ Always disengage the machine, kill the tractor engine, remove and pocket the key before dismounting for any reason. ▲ Always clear up all debris left at the work area, it may cause hazard to others. ▲ Always ensure when you remove your machine from the tractor that it is left in a safe and stable position using the stands and props provided and secured if necessary.
- Page 21 No advice given here can replace ‘good common sense’ and ‘total awareness’ at all times, but will go a long way towards the safe use of your McConnel machine.
-
Page 22: Fitting (Tractor Requirements)
FITTING – Tractor requirements Minimum Tractor Weight - including ballast weight if necessary: PA50 ECO – 3500kg. PA55 ECO – 3500kg. PA60 ECO – 4000kg. Minimum HP Requirements All models – 65HP Linkage Category 2 PTO Shaft Tractor must be equipped with a live drive PTO to enable forward motion to be stopped while the flail head continues to operate. -
Page 23: Tractor Preparation
TRACTOR PREPARATION Fitting Tractor Guard: Use tractor with safety glass windows if possible and fit Operator guard (part no. 7313324) using the hooks provided. Shape mesh to cover all vulnerable areas. Remember the driver must be looking through mesh and/or polycarbonate glazing when viewing the flail head in any working position - unless the tractor/cab manufacturer can demonstrate that the penetration resistance is equivalent to, or higher than, that... -
Page 24: Delivery & Pre-Attachment
DELIVERY & PRE-ATTACHMENT (Dealer Reference) Delivery The machine will be delivered in a partially dismantled condition secured with transport straps and banding. Select a firm level site on which to place the machine before removing the straps, banding and other loose items. Handling the Machine Handling of the machine should always be performed using suitable overhead lifting equipment with a minimum safe lifting capacity over and above the maximum weight of the... -
Page 25: Hydraulic Oil
HYDRAULIC OIL Hydraulic Oil Reservoir Fill the tank with oil selected from the chart below or a good quality equivalent to a point where the level is between the minimum and maximum marks on the tank gauge. When the machine is initially run the level will drop as the oil is drawn into the circuit - top back up as required to the correct level on the gauge. -
Page 26: Attachment To Tractor
ATTACHMENT TO TRACTOR Position the tractor squarely to the machine placing the draft links at the same height as the mainframe attachment points. Carefully reverse the tractor up to the machine until the draft links are positioned for attachment – select the rear most hole on the machines lower link brackets that allows the machine to be mounted without fouling the tractor. - Page 27 – contact your local dealer or McConnel Parts Department for further information. Secure the stabiliser in position using the fixings provided. Attach the stabiliser arm to the machine selecting the lowest hole possible.
- Page 28 Secure top link in position using fixings provided. Raise the machine on the tractors linkage to a height where the tractors PTO and the stub axle of the machines gearbox are approximately in line with each other. Note: As lift occurs be aware the machine may tilt slightly.
- Page 29 Remove leg pins and raise the stand legs to their stowage position – replace leg pins and secure in place with ‘R’ clips. Adjust check chains to prevent sideways movement of the tractor’s linkage. Measure the PTO shaft and cut to the dimension shown below.
-
Page 30: Pto Driveshaft Installation
PTO DRIVESHAFT INSTALLATION The PTO driveshaft attaches between the tractor and the machine gearbox to transfer the power required to the run and operate the machine – it is important to achieve the correct shaft length to avoid risk of it ‘bottoming out’ when raising or lowering the machine. The procedure for measuring and cutting the shaft is as follows: Measuring the PTO Shaft... -
Page 31: Fitting Operator Controls
FITTING OPERATOR CONTROL UNITS Fitment of the operator controls in the tractor cab will vary depending on the particular model or specification of machine – the information below lists the differing methods of fitment for the various types of controls available. NOTE: Electric control units work within the range of 12v-16v DC and will require a minimum power supply of 12v DC. -
Page 32: Flailhead Attachment
FLAILHEAD ATTACHMENT For ease of attachment and safety this procedure is best performed on a firm level site. With the tractor parked alongside the flailhead operate the controls of the machine to position the pivot bracket of the machines head angling mechanism directly behind flailhead with the base of the hose tray (or junction bracket) parallel to the ground. -
Page 33: Running Up Procedure
RUNNING UP PROCEDURE CAUTION! Before initial use of a new machine, all lubrication points must be greased and the gearbox and oil t ank levels checked and where required topped up before attempting to use the machine. See maintenance section for details. ‘Running Up’... -
Page 34: Pre-Work Preparation & Precautions
PRE-WORK PREPARATION & PRECAUTIONS IMPORTANT: Always read the book first before attempting to operate the machine – practise operating the machine, without the rotor running, in a safe open space until you are fully familiar with all controls and functions of the machine. Only begin using the machine for work when you are confident that you have mastered the controls and operation sufficient for safe use of the machine. -
Page 35: Removal From Tractor
REMOVAL FROM TRACTOR DANGER! READ CAREFULLY BEFORE COMMENCING TO REMOVE THE MACHINE FROM THE TRACTOR. THE ORDER OF THE FOLLOWING STEPS MUST BE FOLLOWED EXACTLY DISCONNECTING THE TOP LINK MUST BE THE LAST OPERATION PRIOR TO DRIVING THE TRACTOR AWAY FROM THE MACHINE. WARNING! Do not operate quadrant lever or machine controls through the rear cab window whilst standing on or amongst linkage components. -
Page 36: Operation
OPERATION Operator Guard Machine Guards Before each period of work, check that all the relevant tractor and machine guards are in place and in good working condition. Small splits and abrasions on the lower edges of the flail head rubber flaps are permissible, but should one or more of these cuts or splits become fifty per cent or more of the flap height they should be replaced immediately as they will have become ineffective for debris containment. -
Page 37: Cable Controls
CABLE CONTROLS Cable controlled machines are supplied with a control unit of the type shown below – the particular version will be depend ent on the specific ation and features of the machine. Versions differ primarily in the number of armhead c ontrol levers assembled within t he control bank –... - Page 38 ARM OPERATION Auto Reset...
- Page 39 Rotor Control Refer to specific cable rotor control section for additional information on rotor operation Midcut/VFR Models FLOAT OPERATION (Angle Float standard/ Lift Float optional) HEAD ANGLE FLOAT - Push angle lever fully forward into the detent A) Angle Float OFF B) Angle Float ON position.
-
Page 40: Cable Rotor Control
CABLE ROTOR CONTROL On cable rotor control machines the rotor is operated by the lever shown below – from the upright ‘off’ position pushing the lever forward switches the rotor on for downhill cutting and pulling the lever backwards switches the rotor on for uphill cutting. The small pivot locking lever mounted on the side of the control assembly rotates through 180°... -
Page 41: Electric Switchbox Controls
ELECTRIC SWITCHBOX CONTROLS Machines with Electric Switchbox Controls will be s upplied with one of the control units shown below, the particular version will be dependent on the spec ification of the machine; machines fitted with c able rotor control will use the unit shown left whilst machines wit h electric rotor control will use the unit shown right –... - Page 42 ARM OPERATION Auto Reset Midcut or VFR Models only...
- Page 43 HEAD FLOAT OPERATION (Angle Float standard / Lift Float optional) Angle Float OFF Lift Float OFF Angle Float OFF Lift Float ON Angle Float ON Lift Float ON ROTOR OPERATION – Electric Rotor Control Models only NOTE: The following section relates to machines with Electric Rotor Control only – for Cable Rotor Control models refer to the cable rotor control section.
- Page 44 Switching the Rotor On For safety reasons, to prevent accidental starting of the rotor, the ‘Rotor On’ switch cannot be activated in a single operation or without first selecting the direction of cut – the procedure for starting the rotor is as follows: Select the required cutting direction - the Rotor On/Off Switch (D) must then be switched upwards and held in position for a minimum of 8 seconds before switching it into the fully down ‘on’...
-
Page 45: Electric Monolever Controls
ELECTRIC MONOLEVER CONTROLS Machines with Electric Monolev er Controls will be supplied with one of the control unit s shown below, the particular version will be dependent on the spec ification of the machine; machines fitted with c able rotor control will use the u nit shown left whilst machines wit h electric rotor control will use the unit shown right –... - Page 46 ARM OPERATION Auto Reset Midcut or VFR Models only...
- Page 47 HEAD FLOAT OPERATION (Angle Float standard / Lift Float optional) Angle Float OFF Lift Float OFF Angle Float OFF Lift Float ON Angle Float ON Lift Float ON ROTOR OPERATION – Electric Rotor Control Models only NOTE: The following section relates to machines with Electric Rotor Control only – for Cable Rotor Control models refer to the cable rotor control section.
- Page 48 Switching the Rotor On For safety reasons, to prevent accidental starting of the rotor, the ‘Rotor On’ switch cannot be activated in a single operation or without first selecting the direction of cut – the procedure for starting the rotor is as follows: Select the required cutting direction - the Rotor On/Off Switch (D) must then be switched upwards and held in position for a minimum of 8 seconds before switching it into the fully down ‘on’...
-
Page 49: Xtc Proportional Controls
XTC (Mk2) PROPORTIONAL SWITCHBOX CONTROLS (5 Service Models) Machines with XTC Mk2 Proportional Controls (5 service models) will b e supplied with the control unit shown below. The units for both el ectric and cable c ontrolled rotor machines are identical except that for cable versi ons the rotor control switches B, C & D (shown below) will not provide a function as rotor operat ion will be controlled by a separate cable lever unit (refer to specific cable rotor control page for operation details of that unit). - Page 50 ARM OPERATION Midcut or VFR Models only...
- Page 51 HEAD FLOAT OPERATION Angle Float (Standard Feature) Lift Float (Optional Feature) ROTOR OPERATION – Electric Rotor Control Models only NOTE: The following section relates to machines with electric rotor control only – for cable rotor control models refer to the specific cable rotor control section. Rotor Start (Selection of Rotor Cutting Direction) Select rotor start for required direction (LED will light to indicate the active direction).
- Page 52 Switching Rotor Direction With the rotor running, changing the rotor cutting direction can only be achieved after first operating ‘rotor stop’, when stop has been selected the specific direction button can then be operated to command the rotor to switch to the desired direction. NOTE: This function has a built in time delay of approximately 8 seconds - this is a machine protection feature that allows the rotor sufficient time to de-accelerate before restarting in the opposite direction.
-
Page 53: V4 Proportional Controls
POWER ON / OFF (Emergency Stop) Rotate Clockwise to Power On – control unit will emit a single beep and screen will display the selected PTO speed, software version and the McConnel name. Press to Power Off. ROTOR START – Uphill Cutting This button starts the rotor for ‘uphill’... - Page 54 HEAD ANGLE FLOAT There are 2 methods available for selection and de-selection of this function; activation via the control unit - refer to #1 below, or activation via the joystick controls - refer to #2 below. 1. Pressing the Head Angle Float button – when activated the control unit will emit a single beep, the LED light will illuminate and the screen will momentarily display ‘ANGLE FLOAT ’...
- Page 55 EDS FUNCTION (EDS Models) / LIFT FLOAT (Non EDS Models) There are 2 methods available for selection and de-selection of this function; activation via the control unit - refer to #1 below, or activation via the joystick controls - refer to #2 below. 1.
- Page 56 AUXILIARY FUNCTION CONTROL There are 3 possible types of auxiliary service control as described in A, B & C below – the particular type used will be dependant on the build specification of the machine. Control operation of the function for all types remains the same (see below). A) Diverter Valve System Utilising an Existing Service (Physical Diverter Valve) The control selects either of the two diverter valves for the operation of additional equipment that may be fitted to the machine such as: Directional Ram, Orbiter Head Kit,...
- Page 57 SLEW – TELE / MIDCUT / VFR SWAP This function swaps over the controls used to operate Slew and Tele/Midcut/VFR. By default, Slew operation is performed with the right hand thumbwheel (T2) and Tele/Midcut/VFR operation with the [◄] [►] buttons on the control unit - in the swapped mode these will be the opposite way around and the LED on the control unit will be lit to indicate that the swapped mode is selected.
- Page 58 AUTO RESET This button is for the selection and de-selection of the Auto Reset function – pressing the button once will activate Auto Reset, the control unit will emit a single beep, the LED light will illuminate and the screen will momentarily display ‘AUTO RESET ’. Pressing the button again will deselect the function –...
- Page 59 V4 JOYSTICK CONTROLS - Buttons & Thumbwheels Operation NOTE: By default operation of thumbwheels T1 and T2 in conjunction with button B1 activates Head Angle Float and EDS/Lift Float respectively. These controls can, if required, be swapped over so that the thumbwheels operate the opposing functions –...
- Page 60 ARMHEAD OPERATION – JOYSTICK CONTROLS...
- Page 61 TELE / MIDCUT / VFR OPERATION – JOYSTICK CONTROLS (Diverted Mode)
- Page 62 V4 CONTROL UNIT – Screen Access & Menu Buttons Power on/off switch (E/Stop) Speaker (audible confirmation) Control unit emits an audible confirmation ‘beep’ when the buttons are pressed. Command Button [] Command Button [X] Navigate Forward Button [>] Navigate Back Button [<]...
- Page 63 IMPORTANT: Under no circumstances should a V4 Control Unit be connected to a V3 ACB (Auxiliary Control Box). Dedicated V3.5 & V4 Upgrade Kits are available from McConnel Limited – contact your local dealer or McConnel direct for available options and specific advice on this subject.
- Page 64 POWER MONITOR When displayed the power screen will indicate to the operator the level of power being demanded by the cutting head – an ascending graphic indicates the power demand status from minimum on the left of the screen to maximum on the right. Power Status –...
- Page 65 TEST & FAULT FINDING SCREENS The following screens are available for testing and fault finding purposes, these are: JOYSTICK TEST SCREEN This screen reports the status of the CAN (Controller Area Network) signal from the joystick during its various functions. X and Y Display These report the joystick signal as it travels through its range of movements in its 2 axis –...
-
Page 66: Slew & Lift Locks
SLEW & LIFT LOCKS Slew Ram Lock The machine is fitted with a slew ram lock as shown opposite. The slew function must be ‘locked’ at all times during transportation and storage of the machine and only unlocked for work. SLEW RAM LOCK ►... -
Page 67: Breakaway
BREAKAWAY The machine is fitted with a hydraulic breakaway device which protects the structure of the machine should an unforeseen obstacle be encountered. NOTE The breakaway function does not relieve the operator of his responsibility to drive carefully, be alert and AVOID OBVIOUS HAZARDS BEFORE CONTACT OCCURS. Breakaway may occur momentarily during normal work should an extra thick or dense patch of vegetation be encountered. -
Page 68: Powered Slew
POWERED SLEW The slew feature allows a 95° arc of powered arm movement on the working side from right angles to the tractor to 5° beyond the direct line astern. The feature is required to place the machine in the transport position but can also be used to sweep the arm to and fro whilst cutting awkward areas and corners thus avoiding the need to constantly re-position the tractor. -
Page 69: Moving Into Transport Position
MOVING INTO TRANSPORT POSITION Select ‘Rotor Off’ and wait for the rotor to stop turning completely. Ensure that both ‘lift’ and ‘angle float’ functions are switched off. Select ‘slew’ mode on the controls. Operate ‘slew in’ function to bring the arms into position directly behind the tractor. - Page 70 TRANSPORT POSITION FOR REAR MOUNTED MACHINES The machine is transported inline to the rear of the tractor with a minimum of 300mm (12”) clearance between the tension link and the rear cross member of the tractor cab. Transport Position with Flailhead Attached Transport Position with Flailhead Removed For transportation without a flailhead attached, the machines arms must be fully folded and the lift ram fully retracted so the mass of the arms is behind the centre line –...
-
Page 71: Transporting The Machine
TRANSPORTING THE MACHINE Transport Height There is no fixed dimension for the transport height as this will vary for differing applications i.e. tractor size, carrying height, and degree of arm fold the particular tractor cab will permit. For the majority of installations the transport height will be in the region of approximately 3.45m to 3.65m. -
Page 72: Operating Speeds
OPERATING SPEEDS PTO Operating Speed The correct PTO speeds for operation of machines is: 500 - 540 rpm (Max) WARNING: Damage to the machine may occur if the maximum PTO speed is exceeded. Engaging Drive Ensure the rotor control lever/switch is in the ‘stop’ position before engaging the PTO. Allow the oil to circulate for a minute or so before operating the armhead controls. -
Page 73: Hazards & Dangers
HAZARDS & DANGERS Adverse Slopes When working with the flailhead high and reach fully in it is possible for the main arm balance to go over centre and take the weight off the lift ram. A restrictor in the gland circuit of the lift ram will prevent sudden unpredictable movements if this should occur - for reasons of safety this restrictor should not be removed. -
Page 74: Overhead Power Lines
OVERHEAD POWER LINES (OHPLs) It cannot be stressed enough the dangers involved when working in the vicinity of Overhead Power Lines (OHPLs). Some of our machines are capable of reach in excess of 8 metres (26’); they have the potential to well exceed, by possibly 3 metres (9’ 9”), the lowest legal minimum height of 5.2 metres from the ground for 11,000 and 33,000 volt power lines. - Page 75 Definitions of Exclusion Zones Risk Assessment Before starting to work near OHPLs you should always assess the risks. The following points should be observed; Know the risks of contacting OHPLs and the risk of flashover. Find out the maximum height and maximum vertical reach of your machine. ...
-
Page 76: Hedgecutting Procedure
HEDGECUTTING PROCEDURE Cut the side and bottom of the field side first. This leaves the maximum thickness of hedge on the road side to prevent the possibility of any debris being thrown through the hedge into the path of oncoming vehicles. Cut the side and bottom of the road side. -
Page 77: Lift Float (Option)
LIFT FLOAT (Optional Extra for Ground Work) Work without lift float requires far more concentration and input from the operator to quickly react and re-adjust to the ground contours often resulting in patches of higher cut material where the head is cutting too high and ‘scalping’ of the ground where it is cutting too low –... -
Page 78: Angle Float
ANGLE FLOAT KIT (Standard Feature) Machines are fitted with Angle Float as standard – when activated the feature connects the base and gland circuits of the angle ram to allow free movement of oil in both directions thus allowing the head to automatically angle itself to match the contours of the ground. Refer to specific controls section for details of operation. -
Page 79: Maintenance
GENERAL MAINTENANCE General Lubrication The example illustration below indicates the general locations of lubrication points - all points should be greased on a daily basis and prior storage of the machine. New machines must be greased prior to first use. IMPORTANT: Grease new machines before first use. - Page 80 SERVICE SCHEDULE Every Day Grease machine fully prior to work (and prior to storage). NOTE: New machines must be greased before initial use. Check for broken or damaged flails. Check tightness of flail nuts and bolts. Visually check for oil leaks and damaged hoses. ...
- Page 81 HYDRAULIC SYSTEM Oil Supply Check the oil level in the reservoir daily. Oil Condition & Replacement No fixed time period can be quoted for oil changes as operating conditions can vary widely but a visually inspection of the oil will often indicate its current overall state. Signs of a reduction in its condition will be apparent by changes in colour and appearance when compared to new oil.
- Page 82 Avoid twisting the hose. Adjust the hose line to ensure freedom from rubbing or trapping before tightening hose end connections. All Hydraulic Hoses (BSP) now fitted to McConnel Power Arm Hedge/Grass Cutters have ‘soft seal’ connections on both flail and ram circuit hoses.
- Page 83 CONTROL CABLES The control cables operate on a push/pull system with the spool centring springs always returning the spool to the neutral position when the handle is released. Care should be taken during installation and operation to ensure that the cables are not trapped or kinked.
- Page 84 PTO SHAFT MAINTENANCE PTO Shaft Lubrication The PTO shaft should be lubricated on a regular basis using lithium based grease – each end of the shaft has 2 greasing points; one for lubrication of the universal joint and one for lubricating the rotating fixing ring of the shaft shield –...
- Page 85 TORQUE SETTINGS FOR FASTENERS The chart below lists the correct tightening torque for fasteners. This chart should be referred to when tightening or replacing bolts in order to determine the grade of bolt and the correct torque unless specific torque values are assigned in the text of the manual. Recommended torque is quoted in Foot-Pounds and Newton-Metres within this manual.
