DC Power Supply User Manual
Model No. 72-13300 and 72-13310
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 72-13300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tenma 72-13300

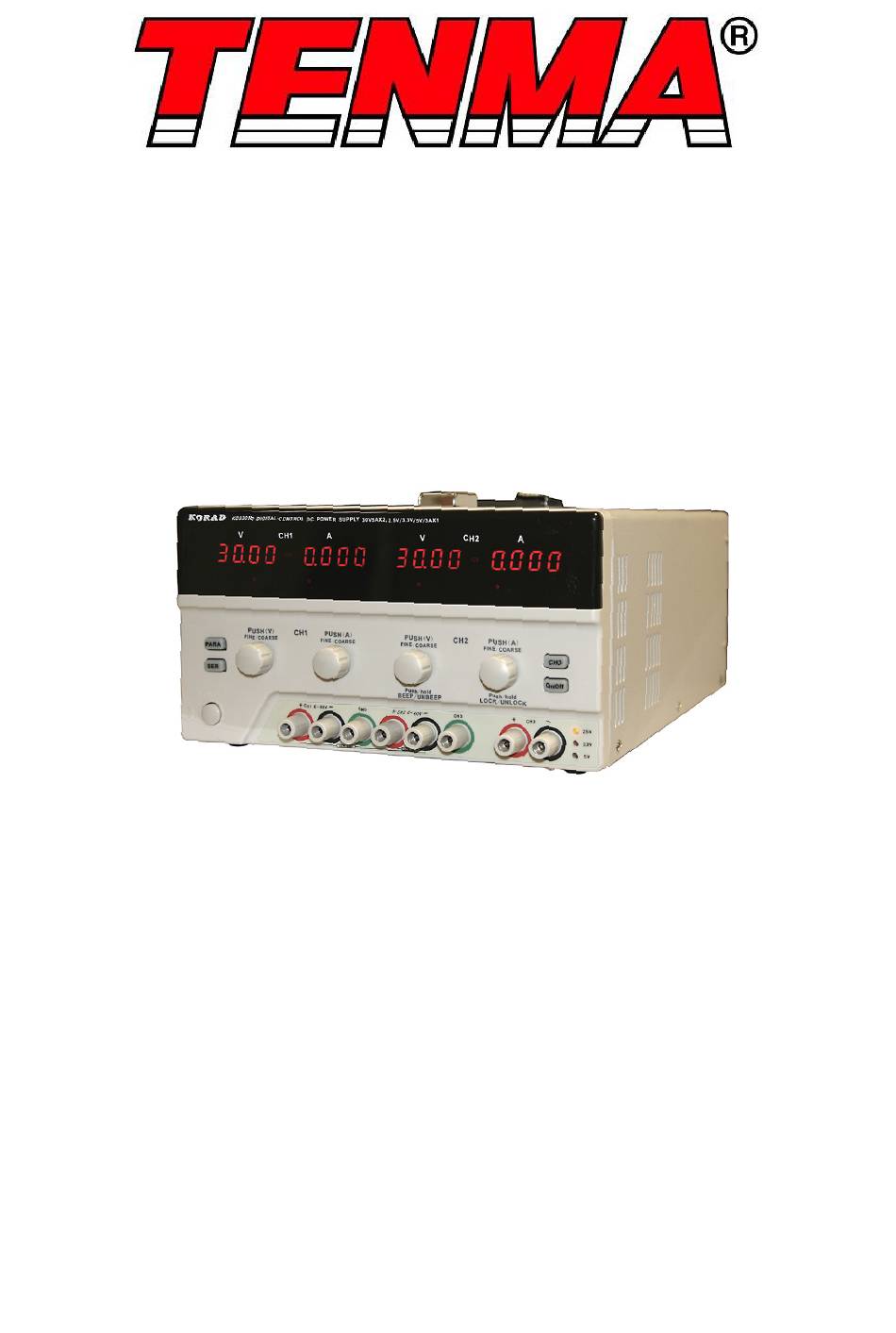

  • Page 1 DC Power Supply User Manual Model No. 72-13300 and 72-13310...
  • Page 2: Product Overview

    When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons or property. Read all instructions before using the appliance and retain for future reference. • Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply.

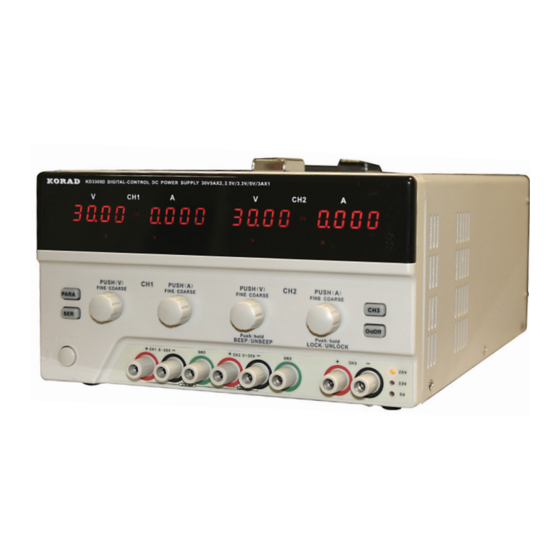

  • Page 3 OPERATION Channel 3 Voltage Parallel LED Selector Channels 1/2 output Series LED OFF button Parallel button Voltage Adjustment Current Adjustment Controls Controls Ch 3 Voltage Series Button Indicator LEDs Front Panel Ventilation Grille interface RS232 USB interface Mains power socket interface Rear Panel...
  • Page 4: Front Led Display

    FRONT LED DISPLAY Voltage display Current display Display SERIES OR PARALLEL OPERATION Series or Parallel operation • To enter Series mode, press and hold the SER button. The SER LED on the display will illuminate to confirm the setting. • Initially default master channel is channel 2 with channel 1 as slave and shielded.
  • Page 5: Voltage Or Current Mode

    • To enter Parallel mode, press and hold the PARA button. The PARA LED on the display will illuminate to confirm the setting. • Initially default master channel is channel 2 with channel 1 as slave and shielded. • Press the ON/OFF button to switch the output on or off. •...
  • Page 6: Specification

    SPECIFICATION Model 72-13300 72-13310 Voltage Range 0-30V 0-30V Current Range 0-3A 0-5A Load Regulation Voltage ≤ 0.01%+3mV ≤ 0.01%+5mV Current ≤ 0.1%+5mA ≤ 0.1%+10mA Line Regulation Voltage ≤ 0.01%+3mV ≤ 0.01%+3mV Current ≤ 0.1%+3mV ≤ 0.1%+3mV Setup Resolution Voltage 10mV...
  • Page 7: Maintenance

    Changing the fuse • Replace the fuse only with one of exactly the same type and rating. • Disconnect the mains power and unplug the mains lead before replacing the fuse. Model 110/120V 220/230V 72-13300 T4A/250V T2A/250V 72-13310 TSA/250V T3A/250V NOTES...
  • Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

This manual is also suitable for:

72-13310
