Page 2: Dc Power Supply
72-8000 Series Operating Manual 72-8000 Series DC Power Supply Instruction Manual... - Page 3 72-8000 Series Operating Manual Introduction Thank you for purchasing our product. In order to ensure correct installation, operation and optimum performance of this product please read this manual in detail and keep for future reference. This instrument is produced under strict quality control. All parts go through screening and ageing, and a series of performance testing, environmental testing and safety testing.
-
Page 4: Table Of Contents
72-8000 Series Operating Manual Contents 1.Summary 2.Specifications 3.Applications 4.Description of panel 5.Applications... -
Page 5: Summary
72-8000 Series Operating Manual 1.Summary 72-8000 is a series of general DC power supplies suitable for laboratory use. Both CH1 and CH2 may work in CV or CC mode, and these two modes convert automatically according to the load. CH1 and CH2 have auto tracking function. In this condition, the output of CH2 tracks the output of CH1. -
Page 6: Specifications
72-8000 Series Operating Manual 2.Specifications Output Voltage and Current: CH1, CH2 C H 1 , C H 2 Model Voltage Current Voltage Current 72-8690 0V – 32V 0A – 3A 0V – 32V 0A – 3A 72-8695 0V – 32V 0A –... -
Page 7: Applications
72-8000 Series Operating Manual Output Voltage: Output Current: 0-2A Ripple and Noise: ≤3mVrms Ambient Temperature Range: Operating:+0ºC to +40ºC (for UK/Europe) + 32ºF to +104ºF (for US) Storing:+5ºC to +45ºC (for UK/Europe) +41ºF to +113ºF (for US) Power Source: AC 220V 10%, 50Hz 4% (UK/Europe) AC 110V 10%, 50Hz 4%(US) Dimensions (H x W x D): 152mm x 197mm x 305mm... -
Page 8: Description Of Panel

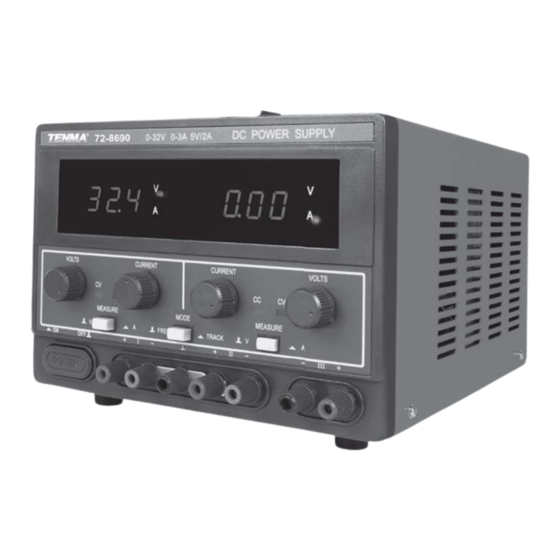

72-8000 Series Operating Manual 1.Description of Panel Voltage meter Current meter VOLTS: Adjusts the output voltage at CV mode CURRENT: Adjusts the output current at CC mode MODE: Controls two main channels. Works in FREE mode or TRACK ... -
Page 9: Applications
72-8000 Series Operating Manual 2.Applications The left area of panel corresponds to CH1 and the right area of panel corresponds to CH2. When the left MEASURE is pushed out, the CV lamp switches on, and the left digital meter displays the output voltage of CH1. When this button is pushed in, the CC lamp switches on, and the left digital meter displays the output current of CH1. - Page 10 72-8000 Series Operating Manual Please note The product includes with the power source 220V (for UK/Europe) or 110V (for USA) Operating Manual content is subject to change without notice Tenma 405 S. Pioneer Blvd, Springboro, Ohio 45066-3001 Phone: 1-888-655-5409 Fax: 1-800-765-6960...
