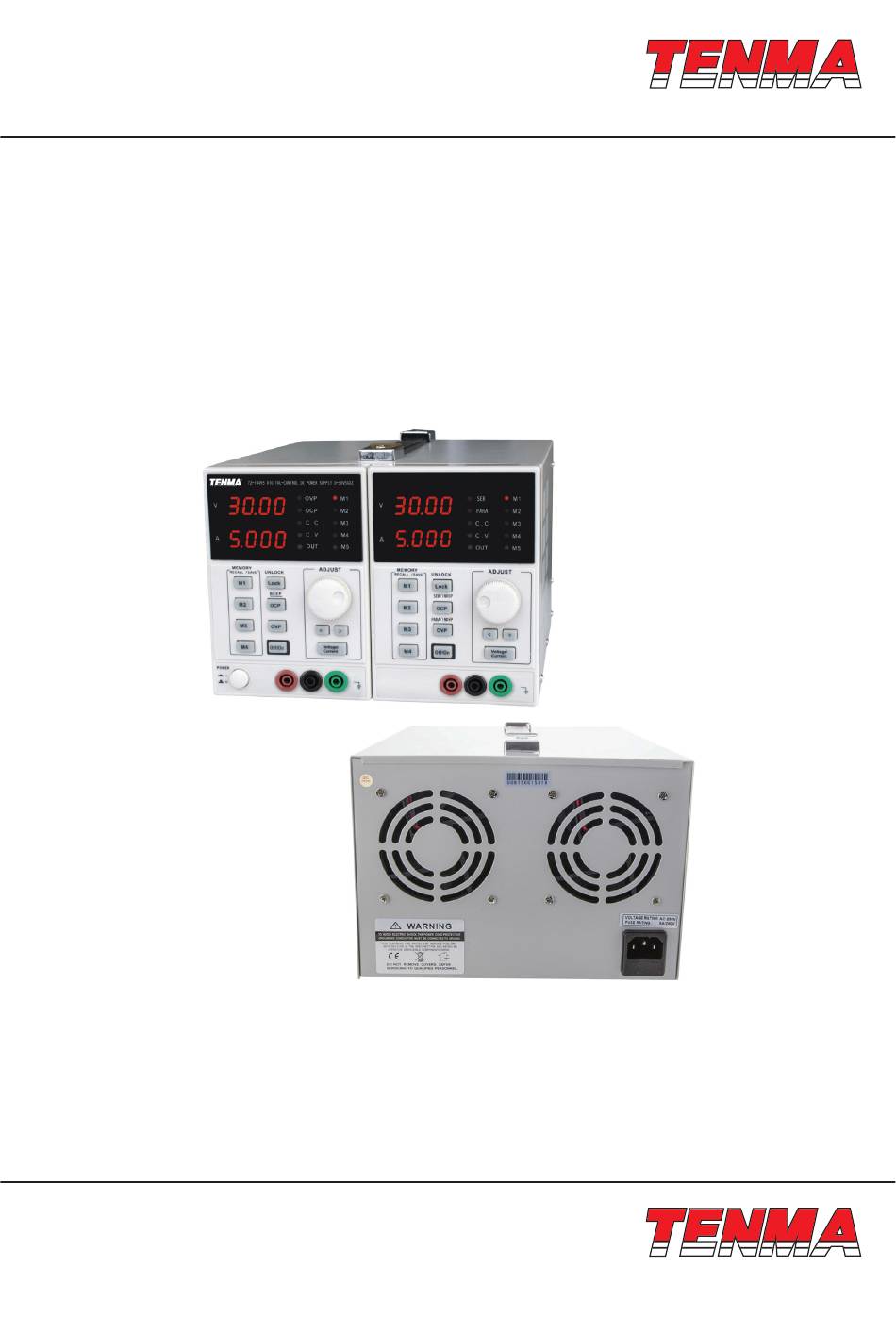

- Page 1 Digital-Control and Programmable Twin DC Power Supply User Manual Part Number: 72-10495, 72-10500 and 72-10505 Newark.com/exclusive-brands Farnell.com/exclusive-brands Element14.com/exclusive-brands Page <1> 28/12/21 V1.0...
- Page 2 Indoor Relative Humidity <70% Temperature -10°C to +70°C Fuse Model 110V / 120V 220V /230V 72-10495 T10A/250V (20×5mm) T5A/250V (20×5mm) 72-10500 T8A/250V (20×5mm) T4A/250V (20×5mm) 72-10505 T8A/250V (20×5mm) T4A/250V (20×5mm) • Avoid the risk of fire by only replacing the fuse with the specified type and rating.
- Page 3 Series Lineup / Main Features Part Number V Meter A Meter Resolution 72-10495 4 digit 4 digit 10mV/1mA 72-10500 4 digit 4 digit 10mV/1mA 72-10505 4 digit 4 digit 10mV/1mA Performance • Low noise: cooling fans controlled by heatsink temperature.
- Page 4 Front Panel Overview Storage Indication Brief Introduction of Panel Operation Newark.com/exclusive-brands Farnell.com/exclusive-brands Element14.com/exclusive-brands Page <4> 28/12/21 V1.0...
- Page 5 Operation Connect the AC power cord and select the corresponding AC voltage according to the back label, then connect the AC power cord to the socket on the back panel. Press the power switch to tum the power on. The display initialises, showing the model of the machine and then the setting level, which is recalled from the last use.
- Page 6 • When the output voltage is higher than the protection setup value, due to unexpected conditions, the output cuts off and the OVP indicator flickers. • Press the OVP key again and the power supply will recover. OCP is OCP indicator. When overcurrent function is turned on, the OCP indicator light turns on. C.C is the constant current indicator.
- Page 7 Note: When a setting is recalled the output automatically turns off. Specifications Note: The specifications in the table below have all been tested in temperatures ranging from 25°C down to -5°C, and after being warmed up for 20 minutes. Part Number 72-10495 72-10500 72-10505 Voltage Range 0-30V...
- Page 8 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. TENMA is the registered trademark of Premier Farnell Limited 2019.
