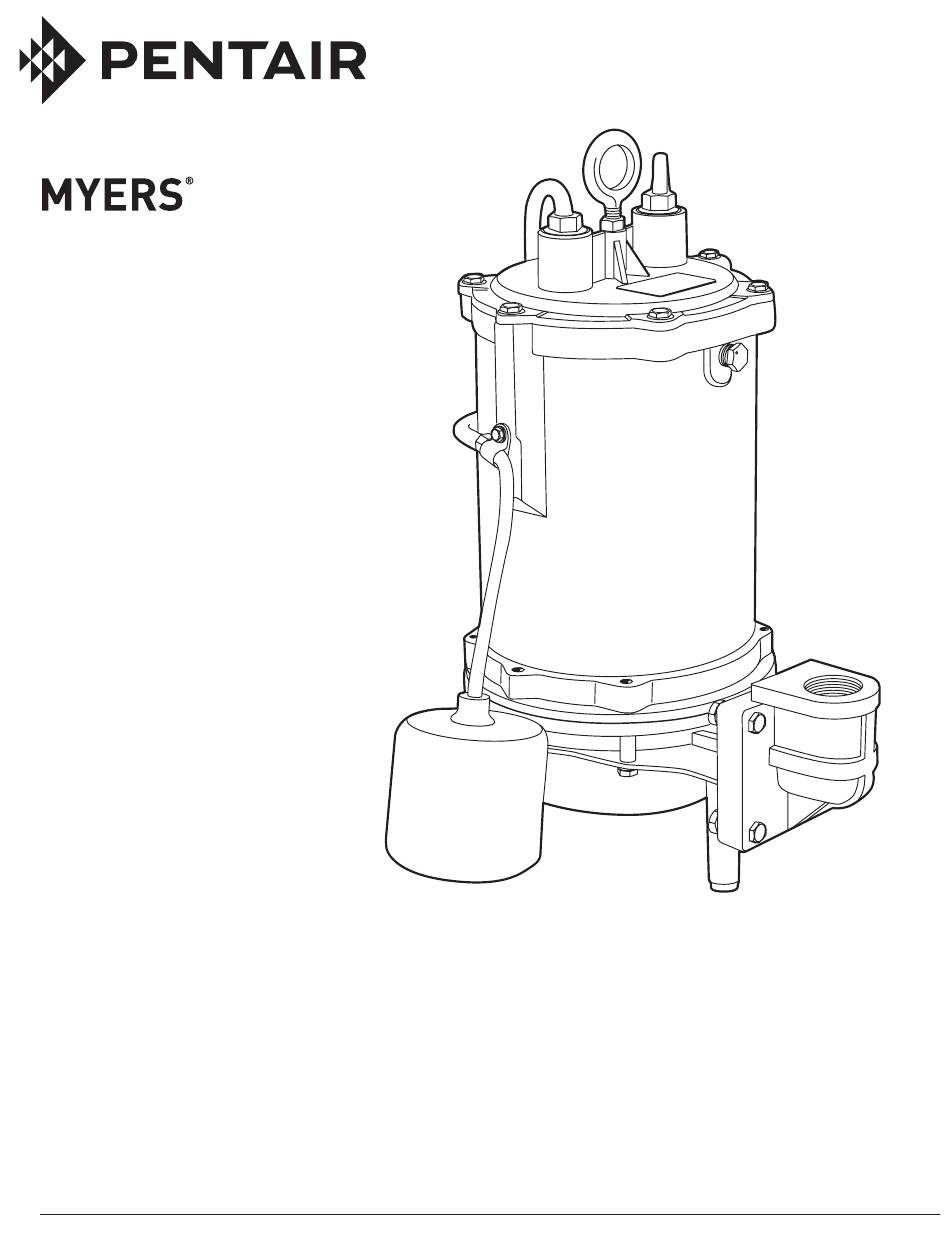

MODEL RG-10
GRINDER PUMP
INSTALLATION AND SERVICE MANUAL
1 HP Grinder Pump for Residential Applications.
NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible
party who maintains the system.
Part # 23833A091 | © 2012 Pentair Ltd. | 11/08/12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pentair Myers RG-10
Summary of Contents for Pentair Myers RG-10
- Page 1 1 HP Grinder Pump for Residential Applications. NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # 23833A091 | © 2012 Pentair Ltd. | 11/08/12...
- Page 2 USAGE FLOAT CONTROL The RG-10 is a submersible wastewater grinder pump The float control has the same type of cord end designed specifically for residential applications. These connector as the power cord. If a replacement control pumps are to be used for residential domestic sewage needs installed, the cord tether length between the only and are not to be used for pumping commercial clamp and the float should be a minimum of 4"...
- Page 3 Ref. No. Part No. Description 21929A002 Bolt, Eye, 3/8-16 24472D001 Cap (After Nov. 1989) 05876A125 O-Ring, 6-1/8 x 5-7/8 x 1/8" (2 Req’d) 18475A003 Screw, 1/4-20 x 7/8" Lg., SST (8 Req’d) 24466D000 Housing, Motor 24467B000 Motor, 230 V, 1 Ph., 2 Pole 22447A000 Seal, Rotary, 5/8"...
- Page 4 Warranty is effective only if Pentair Myers authorized control panels are used. All seal fail and heat sensing devices must be hooked up, functional and monitored or this warranty will be void. Pentair Myers will cover only the lower seal and labor thereof for all dual seal pumps. under no circumstance will Pentair Myers be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the factory or an authorized Pentair Myers service facility.
