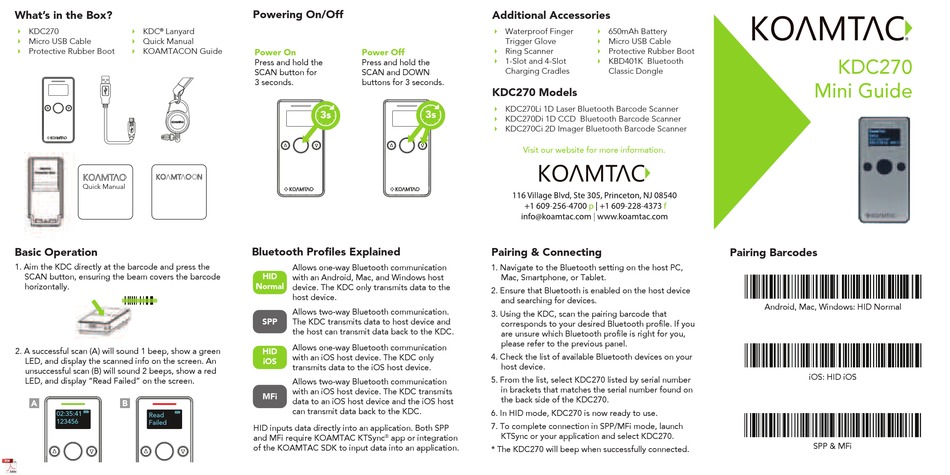

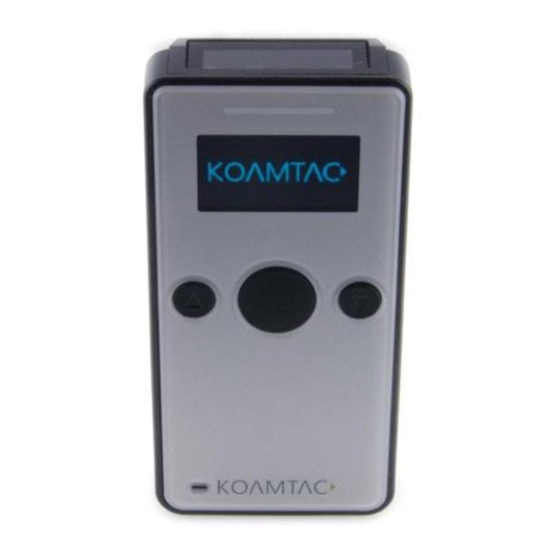

KoamTac KDC270 Mini-Manual

What's in the Box?
• •
KDC270 KDC ® Lanyard
• Micro USB Cable • Quick Manual
• Protective Rubber Boot • KOAMTACON Guide
Quick Manual
Basic Operation
1. Aim the KDC directly at the barcode and press the
SCAN button, ensuring the beam covers the barcode
horizontally.
2. A successful scan (A) will sound 1 beep, show a green
LED, and display the scanned info on the screen. An
unsuccessful scan (B) will sound 2 beeps, show a red
LED, and display "Read Failed" on the screen.
02:35:41
Read
123456
Failed
Powering On/Off
Power On Power Off
Press and hold the Press and hold the
SCAN button for SCAN and DOWN
3 seconds. buttons for 3 seconds.
3s 3s
Bluetooth Profiles Explained
Allows one-way Bluetooth communication
HID
with an Android, Mac, and Windows host
Normal
device. The KDC only transmits data to the
host device.
Allows two-way Bluetooth communication.
SPP The KDC transmits data to host device and
the host can transmit data back to the KDC.
Allows one-way Bluetooth communication
HID
with an iOS host device. The KDC only
iOS
transmits data to the iOS host device.
Allows two-way Bluetooth communication
with an iOS host device. The KDC transmits
MFi
data to an iOS host device and the iOS host
can transmit data back to the KDC.
HID inputs data directly into an application. Both SPP
®
and MFi require KOAMTAC KTSync app or integration
of the KOAMTAC SDK to input data into an application.
Additional Accessories
• •
Waterproof Finger 650mAh Battery
Trigger Glove • Micro USB Cable
• Ring Scanner • Protective Rubber Boot
• 1-Slot and 4-Slot • KBD401K Bluetooth
Charging Cradles Classic Dongle
KDC270 Models
• KDC270Li 1D Laser Bluetooth Barcode Scanner
• KDC270Di 1D CCD Bluetooth Barcode Scanner
• KDC270Ci 2D Imager Bluetooth Barcode Scanner
Visit our website for more information.
Pairing & Connecting
1. Navigate to the Bluetooth setting on the host PC,
Mac, Smartphone, or Tablet.
2. Ensure that Bluetooth is enabled on the host device
and searching for devices.
3. Using the KDC, scan the pairing barcode that
corresponds to your desired Bluetooth profile. If you
are unsure which Bluetooth profile is right for you,
please refer to the previous panel.
4. Check the list of available Bluetooth devices on your
host device.
5. From the list, select KDC270 listed by serial number
in brackets that matches the serial number found on
the back side of the KDC270.
6. In HID mode, KDC270 is now ready to use.
7. To complete connection in SPP/MFi mode, launch
KTSync or your application and select KDC270.
* The KDC270 will beep when successfully connected.
®
KDC270
Mini Guide
Pairing Barcodes
Android, Mac, Windows: HID Normal
iOS: HID iOS
SPP & MFi
