KDC270/280
116 Village Blvd, Suite 305, Princeton, NJ 08540 USA
©2019 KOAMTAC, Inc.
T: + 1-609-256-4700 F: +1-609-228-4373
QG_KDC270_KDC280_20190522
info@koamtac.com
www.koamtac.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDC270 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KoamTac KDC270

  • Page 1 KDC270/280 116 Village Blvd, Suite 305, Princeton, NJ 08540 USA ©2019 KOAMTAC, Inc. T: + 1-609-256-4700 F: +1-609-228-4373 QG_KDC270_KDC280_20190522 info@koamtac.com www.koamtac.com...
  • Page 2: Table Of Contents

    KDC270/280 Diagram ............................ 2 How to turn on and off ..........................2 Bluetooth Pairing ..............................3 Pairing a KDC270 to your smart device ......................3 Usage ..................................4 Using Keyboard Wedge (HID Keyboard) ..................... 4 Using KTSync – Android/iOS ........................4 Using KTSync Keyboard –...
  • Page 3: Product Introduction

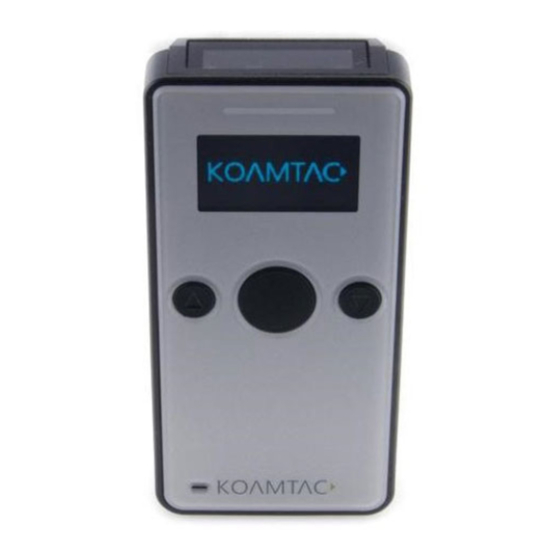

    Quick Guide Product Introduction The KDC270 Bluetooth barcode scanner is a 1D Laser, CCD, or 2D Imager Bluetooth Barcode Data Collector. The KDC 280 is a 2D Imager Bluetooth Barcode Datta Collector that supports Bluetooth Low Energy (BLE). 1.1 KDC270/280 Diagram 1.2 How to turn on and off...
  • Page 4: Bluetooth Pairing

    MFi & Pairing a. On your smart device, navigate to the Bluetooth settings. b. Make sure Bluetooth is on. c. Scan the appropriate barcode above to pair the KDC270 to your device in the desired mode. • If using an Android, Mac, or Windows device and desire a n HID connection, scan barcode 1 above.
  • Page 5: Usage

    KDC270/280 Quick Guide Usage 3.1 Using Keyboard Wedge (HID Keyboard) This option is only available using Bluetooth connection with HID profile. Once the KDC is paired with the host, open any application with a text field and tap on the text field. Scan any barcode and it will populate in the text field.
  • Page 6: Using Ktsync Keyboard - Android

    KDC270/280 Quick Guide 3.3 Using KTSync Keyboard – Android Once your KDC is connected to KTSync, you can use your KDC as a keyboard. a) While KTSync is running in the background, navigate to Settings > Language & Input > Virtual Keyboard >...
  • Page 7: Using Ktsync Keyboard - Ios

    KDC270/280 Quick Guide 3.4 Using KTSync Keyboard – iOS Once your KDC is connected to KTSync, you can use your KDC as a keyboard. a) Navigate to the iPhone/iPad/iPod Settings > General > Keyboard > Keyboards > Add New Keyboard...
  • Page 8: Using Other Developed Applications With Sdk - Android/Ios

    Quick Guide 3.5 Using other Developed Applications with SDK – Android/iOS A Software Development Kit (SDK) for Android and iOS is available to all KOAMTAC customers to ensure smooth development of applications that work seamlessly with a KDC scanner. It’s easy to request the SDK from the...
  • Page 9: Product Specifications

    Battery (Standard) 650 mAh Lithium-ion Power Charging Solution USB Connector Charging Time 4 Hours KDC270: V2.1+EDR, Class2, HID/SPP/MFi Bluetooth KDC280: Bluetooth Low Energy, HID/SPP/Open Communication USB to Serial (Micro USB Connector) 1D Laser KDC270 Laser: >31,000 # of scans per charge KDC270 CCD: >25,000...
  • Page 10 KDC270/280 Quick Guide Humidity Spec 5% ~ 95% (non-condensing) Laser Safety IEC60825/CDRH Class II Regulatory LED Safety IEC62471:2006 Conformance R&TTE, FCC, KC, TELEC, VCCI, SRRC, RoHS Regulatory Compliant 1-Slot Charging Cradle 4-Slot Charging Cradle Accessories Finger Trigger Glove Ring Scanner...
  • Page 11: How To Use Tizen Webapp Demo Application (Only For Kdc280)

    Phone. On the phone, open the Samsung Gear application and search for nearby Gear devices. Select your Gear from the list and confirm the passcode on both devices. ➢ From Galaxy Store, search Koamtac apps, which is “Koamtac Simple Web Demo” App and install it on Gear S3.
  • Page 12: Pair/Connect Kdc With Gear S3

    KDC270/280 Quick Guide 5.2 Pair/Connect KDC with Gear S3 ➢ Put KDC280C-BLE into SPP mode and start pairing (you can also see Chapter 2.2 above) SPP & Pairing ➢ Run KTSimpleWebDemo on your Gear S3. ➢ Tap “Connect” and the available devices will be listed on your Gear S3. Tap the KDC from the list of available devices to connect.
  • Page 13 KDC270/280 Quick Guide ➢ If the KDC becomes disconnected or if you disconnect the current KDC, you can reconnect it later by selecting Connect from the Gear S3. See Reference Manual for more detailed information Visit store.koamtac.com to purchase additional KDCs and accessories.
