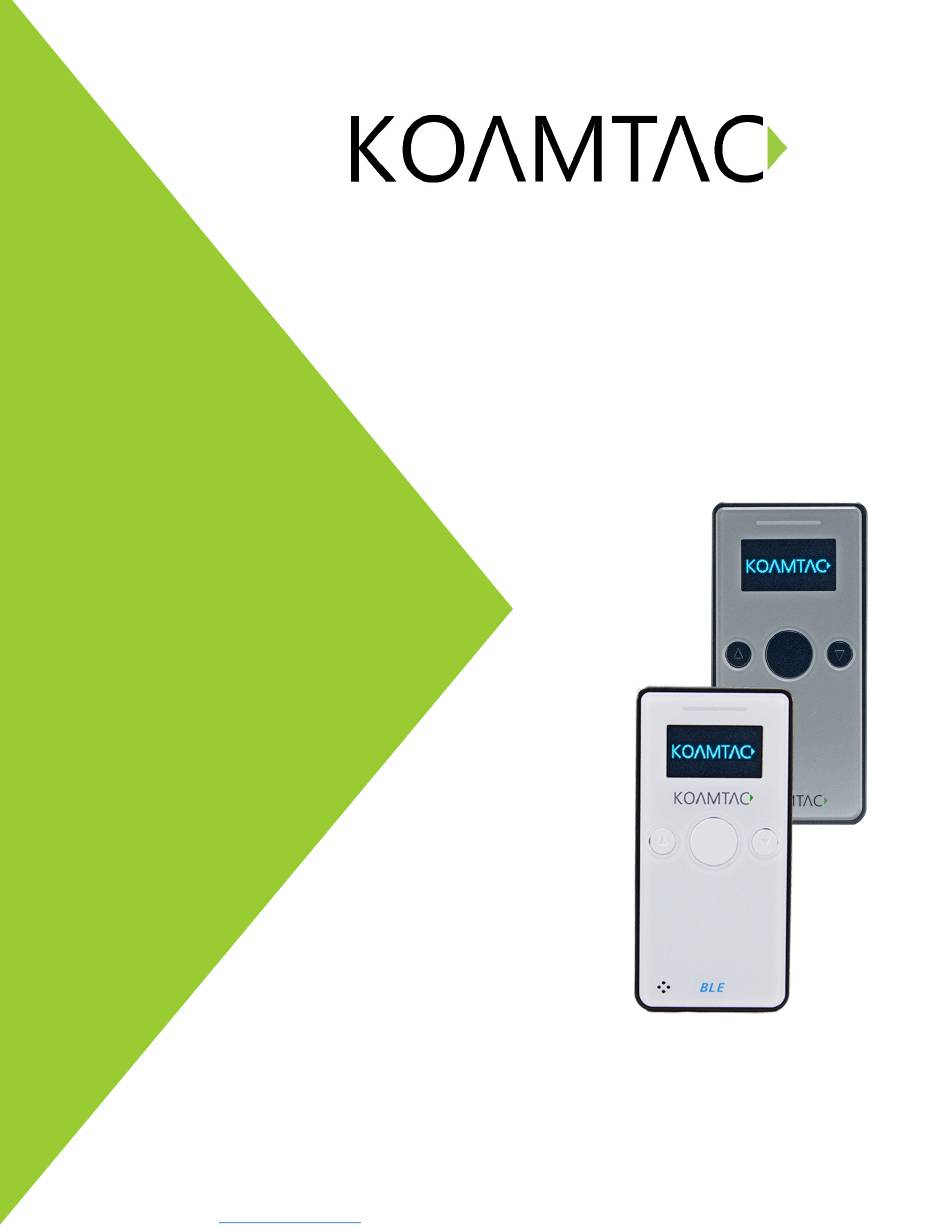

- Page 1 KDC270/280 KDC270/280 Quick Guide 116 Village Blvd, Suite 305, Princeton, NJ 08540 USA ©2020 KOAMTAC, Inc. T: + 1-609-256-4700 F: +1-609-228-4373 QG_KDC270_KDC280_20201014 info@koamtac.com www.koamtac.com...
-
Page 2: Table Of Contents
How to turn on and off ..........................2 Bluetooth Pairing ..............................3 Bluetooth Profiles Explained ........................3 Pairing a KDC270 to your smart device.....................4 Bluetooth Pairing a KDC280 to your smart device with special barcodes ..........5 Usage ................................7 Using Keyboard Wedge (HID Keyboard) ....................7 Using KTSync –... -
Page 3: Product Introduction
Quick Guide Product Introduction The KDC270 Bluetooth barcode scanner is a 1D Laser, CCD, or 2D Imager Bluetooth Barcode Data Collector. The KDC 280 is a 2D Imager Bluetooth Barcode Datta Collector that supports Bluetooth Low Energy (BLE). 1.1 KDC270/280 Diagram 1.2 How to turn on and off... -
Page 4: Bluetooth Pairing
KDC270/280 Quick Guide Bluetooth Pairing Connecting your KDC using Bluetooth is made easy with the below pairing barcodes. If you are unsure which profile is right for you, please visit www.koamtac.com for more information. 2.1 Bluetooth Profiles Explained P rof ile: Allow s one-w ay Bluetooth c omm unic ation w ith an Android or iOS host devic e. -
Page 5: Pairing A Kdc270 To Your Smart Device
5. From the list, selec t KDC 270 listed by serial num ber in brack ets that m atches the serial num ber f ound on the back side of the KDC270. 6. In HI D m ode, KDC 270 is now ready to use. -
Page 6: Bluetooth Pairing A Kdc280 To Your Smart Device With Special Barcodes
KDC270/280 Quick Guide 2.3 Bluetooth Pairing a KDC280 to your smart device with special barcodes Bluetooth Profile & Pairing #1. HID-BLE & Pairing (Android, iOS, Mac) #2. HID-Windows & Pairing (Windows) #3. SPP-BLE & Pairing (Android, iOS, Mac, Windows) a. Navigate to the Bluetooth setting on the host devic e and ensure that Bluetooth is both enabled and searc hing for devic es. - Page 7 KDC270/280 Quick Guide e. I n SPP Prof ile f or iOS, the KDC is NOT listed on your host devic e, so you should launc h KT Sync or your applic ation and select the KDC 28 0 listed by serial num ber in brack ets that m atc hes the serial num ber found on the back side of the KDC 28 0.
-
Page 8: Usage
KDC270/280 Quick Guide Usage 3.1 Using Keyboard Wedge (HID Keyboard) This option is only available using Bluetooth connection with HID profile. Once the KDC is paired with the host, open any application with a text field and tap on the text field. Scan any barcode and it will populate in the text field. -
Page 9: Using Ktsync Keyboard - Android
KDC270/280 Quick Guide 3.3 Using KTSync Keyboard – Android Once your KDC is connected to KTSync, you can use your KDC as a keyboard. a) While KTSync is running in the background, navigate to Settings > Language & Input > Virtual Keyboard >... -
Page 10: Using Ktsync Keyboard - Ios
KDC270/280 Quick Guide 3.4 Using KTSync Keyboard – iOS Once your KDC is connected to KTSync, you can use your KDC as a keyboard. a) Navigate to the iPhone/iPad/iPod Settings > General > Keyboard > Keyboards > Add New Keyboard... -
Page 11: Using Other Developed Applications With Sdk - Android/Ios
3.5 Using other Developed Applications with SDK – Android/iOS A Sof tw are Developm ent Kit (SDK) for Android and iOS is available to all KOAMTAC c ustom ers to ensure smooth developm ent of applic ations that work seam lessly w ith a KDC sc anner. -
Page 12: Product Specifications
Battery (Standard) 650 mAh Lithium-ion Power Charging Solution USB Connector Charging Time 2 Hours KDC270: V2.1+EDR, Class2, HID/SPP/MFi Bluetooth KDC280: Bluetooth Low Energy, HID/SPP Communication Flash Memory (Windows), Micro USB USB HID, USB Serial (Android with OTG cable / Windows) 1D Laser KDC270 Laser: >31,000... - Page 13 KDC270/280 Quick Guide Storage Temp. -4 ˚F to 140 ˚F (-20 ˚C to 60 ˚C) Humidity Spec 5% ~ 95% (non-condensing) Laser Safety IEC60825/CDRH Class II Regulatory LED Safety IEC62471:2006 Conformance R&TTE, FCC, KC, TELEC, VCCI, SRRC, RoHS Regulatory Compliant...
-
Page 14: How To Use Tizen Webapp Demo Application (Only For Kdc280)
Phone. On the phone, open the Samsung Gear application and search for nearby Gear devices. Select your Gear from the list and confirm the passcode on both devices. From Galaxy Store, search Koamtac apps, which is “Koamtac Simple Web Demo” App and install it on Gear S3. -
Page 15: Pair/Connect Kdc With Gear S3
KDC270/280 Quick Guide 5.2 Pair/Connect KDC with Gear S3 Put KDC280C-BLE into SPP mode and start pairing (you can also see Chapter 2.2 above) SPP & Pairing Run KTSimpleWebDemo on your Gear S3. Tap “Connect” and the available devices will be listed on your Gear S3. Tap the KDC from the list of available devices to connect. - Page 16 KDC270/280 Quick Guide If the KDC becomes disconnected or if you disconnect the current KDC, you can reconnect it later by selecting Connect from the Gear S3. See Reference Manual for more detailed information Visit store.koamtac.com to purchase additional products and accessories.
