Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product, to avoid
scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.

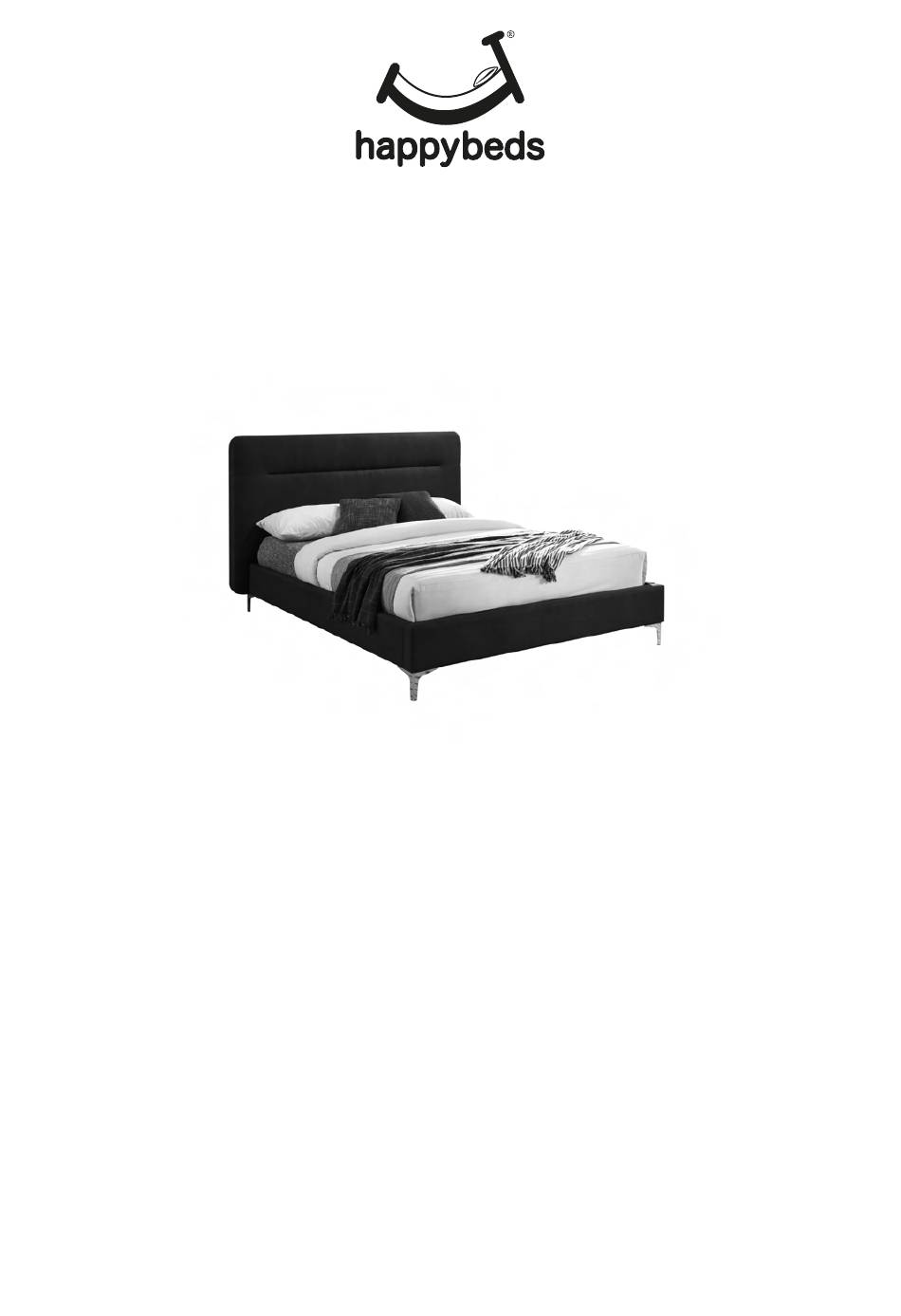

Assembly Instructions

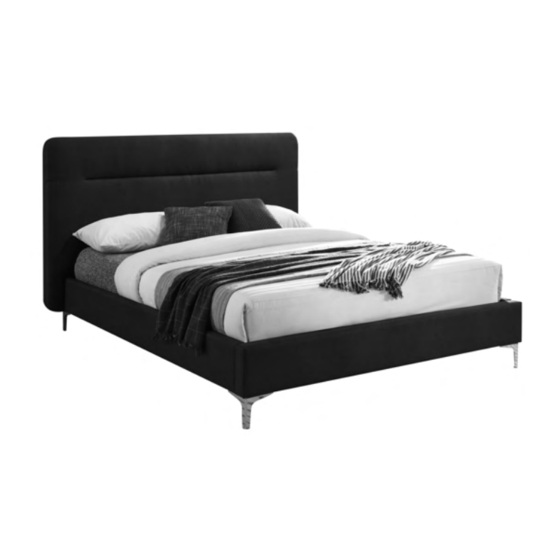

Finn - King
.
.
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds Finn - King
Summary of Contents for Happybeds Finn - King
- Page 1 Assembly Instructions Finn - King Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
- Page 3 1. Headboard (x1) 2.Footboard (x1) 3.Siderail (x2) 4.Legs (x4) 5.Slats (x28) 6.Centre Rail (x1) 7.Support Legs (x2) Page 3 of 7...
- Page 4 All fitting are stored within Box 2 A.MG x 40 mm JCBC (x2) B.M8 x 20 mm JCBC (x8) C.Allen Key M4 x 65 mm (xl) D.Allen Key MS x 70 mm (xl) E.M4 x 25 mm CSK (x14) F.Double Slat Cap (x14) G.Single Slat Cap (x28) H.Flat Washers (x12) I.Adjuster (x2) *You will need a screwdriver (not provided) Step 1...
- Page 5 Step 2 Attach 12x M4x25mm CSK (E) and 4x Legs (4) to the 1x headboard (1) and 1x footboard (2). Kindly position the leg (4) at the non woven area not the edges. Step 3 Attach 2x Side Rail (3) to 1x Footboard (2) and 1x Headboard (1) by pushing the bracket down to fit it.
- Page 6 Step 4 Attach the 2x Support Leg (7) to 1 x Centre Rail (6) using 2x M6x40mm JCBC (A) and 1 x M4 Allen Key (C). Then screw 2x Adjuster (I) to Support Leg (7). ATTENTION: Please keep the adjuster around 5 to 8 mm distant away from the floor.
- Page 7 Step 6 Slot the 28 x Slats (5) into the 14x middle slat caps (F) and then into 28 x End slat cap (G). Press firmly into the holes located on the 2 x side rails (3) and 1 x centre rail (6). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
-
Page 8: General Care And Maintenance
If this is not adhered to, it could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
