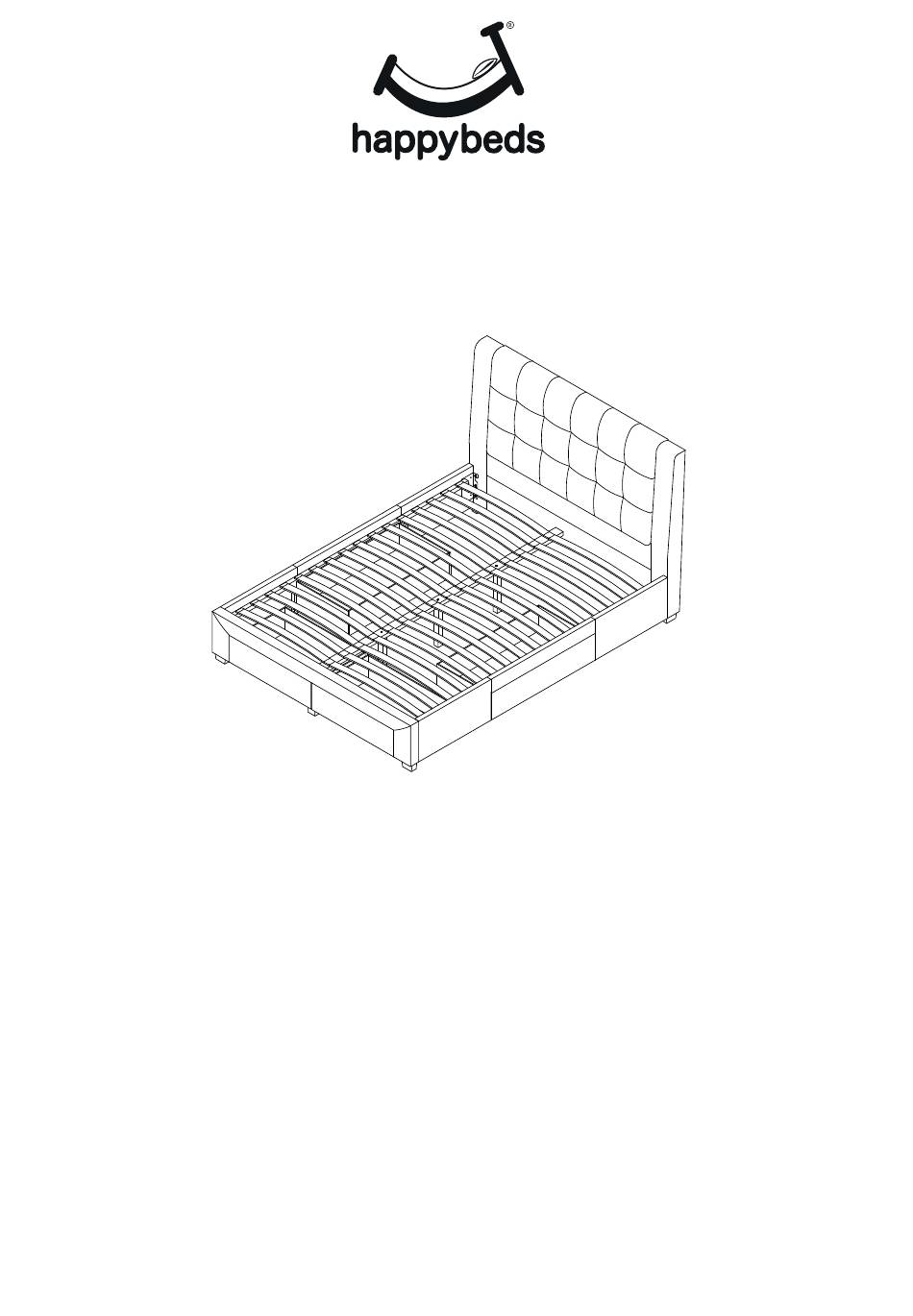

Assembly Instructions
Assembly Instructions
Fullerton Storage Bed - 135cm
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product,
to void scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
VERSION: 190803
FUL001
Health & Safety:
01
This product or some parts of this product will be heavy. Please use an assistant when lifting.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
Please keep these instructions for future reference.
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds Fullerton Storage Bed 135cm
Summary of Contents for Happybeds Fullerton Storage Bed 135cm
- Page 1 DO NOT use this product if any parts are missing, damaged or worn. DO NOT use this product unless all fixings are secured. Please keep small parts out of reach of children. Always use on a level, even surface. Please keep these instructions for future reference. www.happybeds.co.uk...
- Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
- Page 3 Hardware Already inserted into Head & Foot Ends Non-Slip Pads Screw M5 x 50mm Screw M5 x 70mm Allen Key (M5) Bolt M8 x 30mm - 8 X - 3 X - 4 X - 1 X +Spring Washer +Flat Washer - 12 X Bolt M8 x 30mm +Spring Washer...
- Page 5 STEP 1 STEP 2 Please note that the Bolt (1) x 12 are prefixed into parts A & B STEP 3...
- Page 6 STEP 4 STEP 5 ARROWS ON LABELS POINT TO EACH OTHER STEP 6...
- Page 7 STEP 7 STEP 8 PUSH PUSH PUSH...
- Page 8 STEP 9 Drawer Assembly . Important: Make sure when you fit the nuts that the hole is in the correct alignment. (Large) x2 Part T x 2 STEP 10 Positions For Castors. FOLLOW LINE ON BACK OF DRAWER FACE PANEL...
- Page 9 STEP 11 Drawer Assembly . Important: Make sure when you fit the nuts that the hole is in the correct alignment. (Small) x2 Part T x 2 STEP 12 Positions For Castors. FOLLOW LINE ON BACK OF DRAWER FACE PANEL STEP 13...
-
Page 10: General Care And Maintenance
floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
