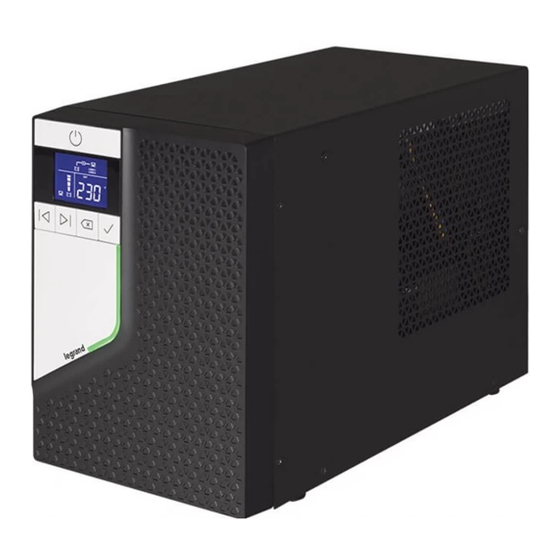

LEGRAND Keor SPE 750 Installation And User Manual

Keor spe tower

Hide thumbs Also See for Keor SPE 750:

Installation and user manual (148 pages)

Installation and user manual (164 pages)

Table Of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the Keor SPE 750 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND Keor SPE 750

Page 2: Table Of Contents
KEOR SPE TOWER Table of Contents 1. Introduction ......................3 2. Regulatory and safety requirements ..............5 3. Installation ......................7 4. Operation ......................8 5. Troubleshooting ....................19 6. Maintenance ...................... 21 7. Warehousing and Dismantling ................23 8. Technical specifications ..................24...
Page 3: Introduction
The guarantee terms may vary depending on the country where the UPS is sold. Check the validity and duration with LEGRAND's local sale representative. If there should be a fault in the product, contact the LEGRAND Technical Support Service which will provide all the instructions on what to do.
Page 4 Manufacturer, violates copyright conditions and may lead to prosecution. LEGRAND reserves the copyright of this publication and prohibits its reproduction wholly or in part without previous written authorization.
Page 5: Regulatory And Safety Requirements
The UPS works with dangerous voltages. Only skilled technicians qualified and authorized by LEGRAND must perform ordinary maintenance operations. No part of the UPS can be repaired by the user. Extraordinary maintenance operations must be carried out by LEGRAND Technical Support Service personnel.
Page 6 KEOR SPE TOWER • Do not place the UPS near equipment that generate strong electromagnetic fields and/or near equipment that are sensible to electromagnetic fields. • The battery of the UPS should be recharged every 2-3 months if unused. To do so, connect the power cable to a suitable grounded mains socket.
Page 7: Installation
KEOR SPE TOWER 3. Installation Positioning constraints The UPS must be placed on a support surface as shown in the following drawings. Keep at least 100 mm of free space around the UPS for air flow. BACK FRONT...
Page 8: Operation
KEOR SPE TOWER 4. Operation Overview 1.ON/OFF button 2. Scrolling left 3. Scrolling right 4. ESC 5. Enter 6. LED Front View 1. Communication Ports 2. SNMP Slot 3. AC Input Inlet and input fuse 4. Outlets Rear View of 750VA...
Page 9 KEOR SPE TOWER 1. Communication Ports 2. SNMP Slot 3. AC Input Inlet and input fuse 4. Outlets Rear View of 1000VA 1. Communication Ports 2. SNMP Slot 3. AC Input Inlet and input fuse 4. Outlets Rear View of 1500VA...
Page 10 KEOR SPE TOWER 1. Communication Ports 2. Input Fuse 3. SNMP Slot 4. AC Input Inlet 5. Outlets Rear View of 2000VA 1. Communication Ports 2. Input Fuse 3. SNMP Slot 4. AC Input Inlet 5. Outlets Rear View of 3000VA...
Page 11 KEOR SPE TOWER Start-up procedure 4.2.1 Normal mode 1. Ensure that the mains power supply to be used has a suitable voltage/frequency and an upstream protection rated at either 10A or 16 A (according to the UPS power). 2. Plug the UPS power cord on the UPS inlet on one side and on the mains power supply socket on the other side.
Page 12 KEOR SPE TOWER Multi-function buttons ON / OFF The button has three functions: Turn on • In standby mode, press and hold the button for 1 second, release it after you hear one beep and the UPS will run in line mode. •...
Page 13 KEOR SPE TOWER running in battery mode, the 7-segment display will show ‘noP’ for 7 seconds, then return to the previously viewed data. ENTER The button has three functions: Buzzer ON/OFF When the buzzer is active, press the button for 0.1 seconds to silence the current alarm.
Page 14 KEOR SPE TOWER 4.7.2 Icons ICON NAME DESCRIPTION Indicates the input source status. • ON: the AC input is within the acceptable input range • F l a s h i n g: t he AC inp ut is out of the acceptable input range, but it is AC power still enough to charge the battery...
Page 15 KEOR SPE TOWER condition Indicates the level of the battery charge. • graph illuminates according to the remaining battery Battery Level Bar capacity • Flashing: the first segment flashes when a low-battery situation occurs Load Level Bar 1%-20%: the first segment will illuminate 21%-40%: the first two segments will illuminate.
Page 16 KEOR SPE TOWER 4.7.3 7-Segment display Column A Column B DESCRIPTION Input voltage Input frequency Output voltage Output frequency Remaining back-up time with the current RUN TIME load, in minutes It means that the UPS is in the setup mode. Pease refer to Setup Entries paragraph for various details...
Page 17 KEOR SPE TOWER • Load Percentage • Environment Temperature • Total capacity of installed batteries (internal + external). Not visible in case the UPS is not expandable Setup Entries FUNCTION DESCRIPTION Output voltage (200/208/220/230/240). Default value: 230V. SET + OUT + V Available in Rack 1U/2U/3U model.
Page 18 - setting special functions like the control of the load banks; - performing automatic shutdown of all computers powered by the UPS (if connected to the TCP/IP network). It is possible to download some free of charge software from the website http://www.ups.legrand.com...
Page 19: Troubleshooting
LEGRAND Technical Support or to having Service to replace the batteries exceeded its average service life Shut down immediately the UPS. Unplug the UPS from the mains Strange noise or smell UPS fault socket and contact the LEGRAND Technical Support Service...
Page 20 KEOR SPE TOWER Fault error codes Fault Turn Clear ERROR Description (how Fault Comments CODE output Clear works) Inverter voltage is high Inverter voltage is Output voltage is short Relay welding Inverter soft start timeout Charger voltage is Warning high Comm.
Page 21: Maintenance
Batteries may only be replaced with the same number and type. Batteries must be brand new. If the battery brand is different from the one originally installed by Legrand, the estimated battery autonomy indicated on the display of the UPS may not be reliable 1)Switch off the UPS.
Page 22 Step 3 - Disconnect the red connector from the battery pack. Step 4 - Using a Phillips head screwdriver，remove the sliver screws (the KEOR SPE 750-1000 is two (2) screws, the KEOR SPE 1500-2000-3000 is four (4) screws) from the silver battery pack retaining plate.
Page 23: Warehousing And Dismantling
Repeat this procedure every two months if the storage ambient temperature is above +25°C (+77°F). INDICATION Batteries must never be stored if partially or totally discharged. LEGRAND is not liable for any damage or bad functioning caused to the UPS by wrong warehousing of the batteries. Dismantling DANGER Dismantling and disposal operations must be carried out only by a qualified electrician.
Page 24: Technical Specifications
KEOR SPE TOWER 8. Technical specifications GENERAL CHARACTERISTICS 3 110 60 3 110 61 3 110 62 3 110 63 3 110 64 Keor SPE 750 Keor SPE 1000 Keor SPE 1500 Keor SPE 2000 Keor SPE 3000 Nominal power 1000 1500...
Page 25 KEOR SPE TOWER OUTPUT ELECTRICAL CHARACTERISTICS 3 110 60 3 110 61 3 110 62 3 110 63 3 110 64 Keor SPE 750 Keor SPE 1000 Keor SPE 1500 Keor SPE 2000 Keor SPE 3000 Rated voltage 230 ~ 1ph Battery mode: ±10%...
Page 26 FEATURES 3 110 60 3 110 61 3 110 62 3 110 63 3 110 64 Keor SPE 750 Keor SPE 1000 Keor SPE 1500 Keor SPE 2000 Keor SPE 3000 Visual Interface 7-segments display with four pushbuttons and LEDs...
Page 27 KEOR SPE TOWER ENVIRONMENTAL CONDITIONS 3 110 60 3 110 61 3 110 62 3 110 63 3 110 64 Keor SPE 750 Keor SPE 1000 Keor SPE 1500 Keor SPE 2000 Keor SPE 3000 Operating 0 ÷ +40 temperature (+20 ÷...
Page 28 KEOR SPE TOWER...
