Alpha Professional Tools ECC-KIT Technical Notes

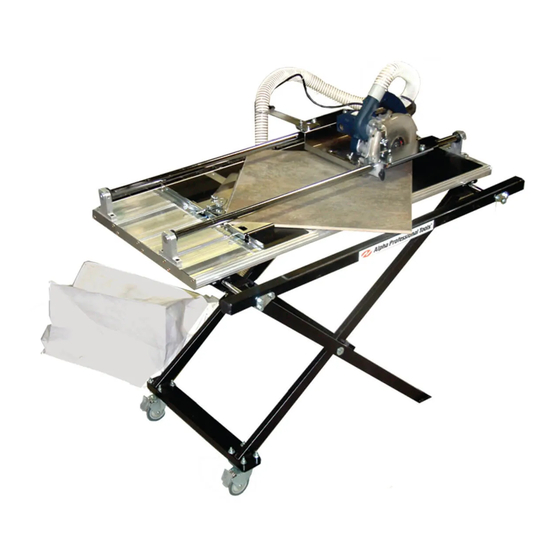

Dry Tile Cutting System
Once again, Alpha® has set a new standard by introducing a dry tile cutting system
for the tile installer which is virtually dust-free! Using this new Ecocutter system with
the included Alpha® Katana blade, you can cut most tiles clean and fast, including
porcelain, without water, thus eliminating messy clean up. The lightweight cutting
table and stand are included, allowing the installer to easily carry and store in a
truck. The table is designed to hold 1/2" thick tile and can cut a diagonal on 20"x 20"
tile or smaller.Designed with the tile contractor in mind, the Ecocutter is the ultimate
dry cutting system! Kit Includes: Ecocutter, Stand, Table, 5" Katana Blade and Basic
Instructional DVD
Part No. Description
ECC-KIT Dry Tile Cutting System
133544 Dust Bag
ECC-STAND Dry Tile Cutting System Stand
ECC-TABLE Dry Tile Cutting System Table

How to Use

Assemble your Dry Tile Cutting System (Table, Stand & Ecocutter) following the instruction manual.
Attach the Alpha® Katana 5" blade on to the Ecocutter making sure to pay attention to the blade direction.
Adjust cutting depth height so the blade only scores the rubber mat on the table.
Plug unit into power supply and reset the in-line circuit breaker.
Make sure all connections (dust bag, dust hose, dust gate and stabilizer) are all securely attached to make accurate
cuts and prevent dust from escaping from the system during cutting application
Press power switch and let dust bag inflate for 15 seconds.
Start cutting your tile (DRY)!
When getting close to end of cut, slow down to prevent blowout and large chips breaking off.
Run the Ecocutter 15 seconds after the cut is complete, this will allow the stone dust to clear the tool, fan and hose and
reach the bag.
Refer to the owner's manual for proper usage and mounting instructions.
Frequently Asked Questions (FAQs)
What materials can be cut using the Alpha® Dry Tile Cutting System?
The Alpha® Dry Tile Cutting System choice of blade is the Alpha® Katana. This dry cutting blade is specifically
designed to cut porcelain tiles, however; this blade can also cut granite, marble, engineered stone and glazed ceramic
tiles.
Document # 6030 - Rev.-November 2010
Technical Notes
www.alpha-tools.com
Sections:
- How to Use
- Frequently Asked
Questions (FAQs)
- Helpful Hints
- Reference
Page 1 of 4
