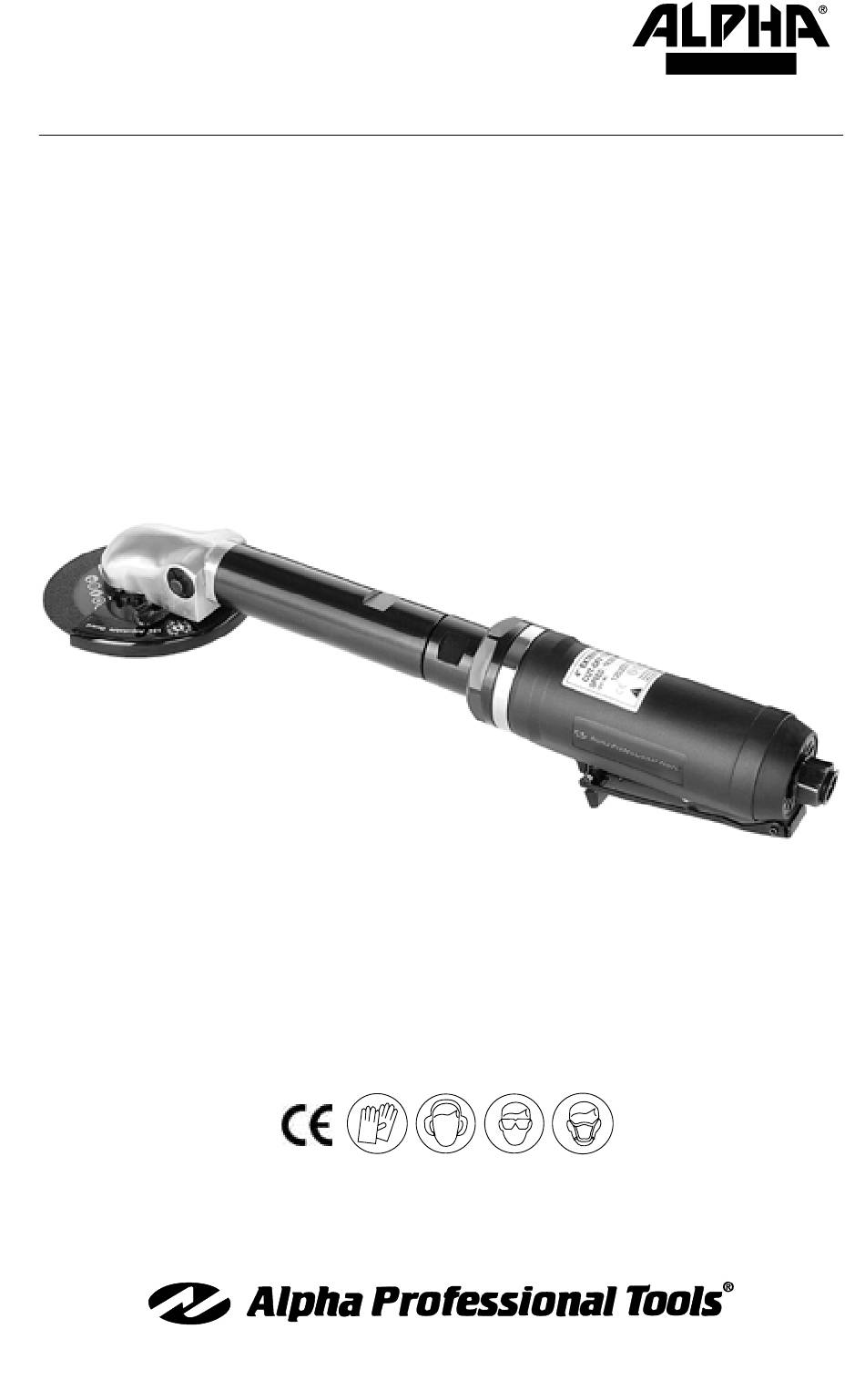

MANUAL
Alpha
Pneumatic
®
4" Extended
Cut-Off Tool
Part No: COTE-04
Version 2
Safety Warning: Always wear eye and respiratory protection as
well as proper personal safety equipment when using this product.
Comply with ANSI B7.1 and OSHA requirements.
103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114
www.alpha-tools.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alpha Professional Tools COTE-04
Summary of Contents for Alpha Professional Tools COTE-04
- Page 1 Alpha Pneumatic ® 4” Extended Cut-Off Tool Part No: COTE-04 Version 2 Safety Warning: Always wear eye and respiratory protection as well as proper personal safety equipment when using this product. Comply with ANSI B7.1 and OSHA requirements. 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114...
-
Page 3: Table Of Contents
COTE-04 Features ................4 COTE-04 Overview ................5 Removal/Installation of the Blade ............6 COTE-04 Schematic................8 COTE-04 Parts List ................9 Accessories and Factory Service ............11 Product Registration ................12 for repair information call: Headquarters, Oakland, NJ — (800) 648-7229 ext.505... -
Page 4: Introduction
INTrOduCTION Thank you for purchasing an Alpha Pneumatic Extended Cut-Off Tool. A wide range ® of accessories help you perform many different tasks. For your safety, please read this manual thoroughly before you start operating this polisher. abOuT ThE SymbOlS According to the hazard level, all safety notes in this manual are classified into “DANGER”, “WARNING”, and “CAUTION”. - Page 5 DON’T FORCE TOOL. It will do the job better and safer at the rate for which it was designed. WEAR PROPER APPAREL. Do not wear loose clothing or jewelry as it can get caught in moving parts. Rubber gloves and insulated non-skid footwear are recommended.
-
Page 6: Cote-04 Features
14. MAINTAIN TOOLS WITH CARE. Keep tools clean at all times for best and safest performance. 15. AVOID ACCIDENTAL STARTING. Do not carry a “connected” tool, or make adjustments, or change blades without making sure the tool is disconnected from the air supply. 16. -
Page 7: Cote-04 Overview
COTE-04 OvErvIEW Figure-1 SPeCIFICAtIONS: Free Speed ..............14,000 RPM Cutting Disc Dimensions ......4” (100mm) x 3/8” (10mm) Air Inlet ................. 1/4” NPT Hose Size ID ..............3/8” (10mm) Air Consumption ...........4 CFM (113 L/min) Length ..............14-3/4” (377mm) Weight ................3.7 lbs (1.7kg) Noise Level ................ -
Page 8: Removal/Installation Of The Blade
remOvAL/INStALLAtION OF tHe BLADe CAUTION! 1. Press and hold the spindle lock. (See Fig. 2) Figure-2 Insert the Hex Key Wrench inside the screw. (See Fig. 3) Figure-3... - Page 9 remOvAL/INStALLAtION OF tHe BLADe CAUTION! 3. While continuing to hold the spindle lock button, turn the Hex Key Wrench in a counter clockwise rotation to loosen and remove the screw and flange from the spindle. (See Fig. 4) Figure-4 reverse to Install New Blade...
-
Page 10: Cote-04 Schematic
COTE-04 SChEmaTIC ®... -
Page 11: Cote-04 Parts List
COTE-04 ParTS lIST ® DRAWING NO. PART NO. DESCRIPTION QUANTITY 3011-0001 Motor Housing 3011-0002 Spring Pin (3X24L) 3011-0003 Air Inlet 3011-0004 Throttle Lever 3011-0005 Valve Shaft 3011-0006 O-Ring (4.8x1.9) 3011-0007 Connecter 3011-0008 Spring 3011-0009 Valve Spring 3011-0010 Plug 3011-0011... - Page 12 COTE-04 ParTS lIST ® DRAWING NO. PART NO. DESCRIPTION QUANTITY 3011-0035 Button Seat 3011-0036 3011-0037 Screw (M4x12L) 3011-0038 Roller Shaft 3011-0039 Spring 3011-0040 Washer 3011-0041 Washer 3011-0042 Oil Felt 3011-0043 Spring Pin (Ø2x16L) 3011-0044 3011-0045 Decoration Ring 3011-0046 Ball Bearing (626ZZ) 3010-0017 Spring Pin (2.5x6)
-
Page 13: Accessories And Factory Service
® workmanship for a period of one year from the date of original retail purchase (proof of purchase required). If Alpha Professional Tools receives notice of such ® defects during the warranty period, our obligation assumed under this warranty is limited to the repair or replacement of parts, without charge. -
Page 14: Product Registration
PRODUCT REGISTRATION CARD Model No. COTE-04 Serial No. Company Name: ______________________________________________ Name: ______________________________________________________ Address: ____________________________________________________ City: _______________________State: ________Zip: ________________ Telephone: ___________________________________________________ Purchase Date: _______________________________________________ Dealer’s Name: _________________________________ Note: Serial & Model Number must be included for proper registration. (800) 648-7229 Register online at: www.alpha-tools.com/productregistration.aspx... - Page 16 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com Copyright © 2017 Alpha Professional Tools. All rights reserved. Made in Taiwan Revision: 07/2017...
