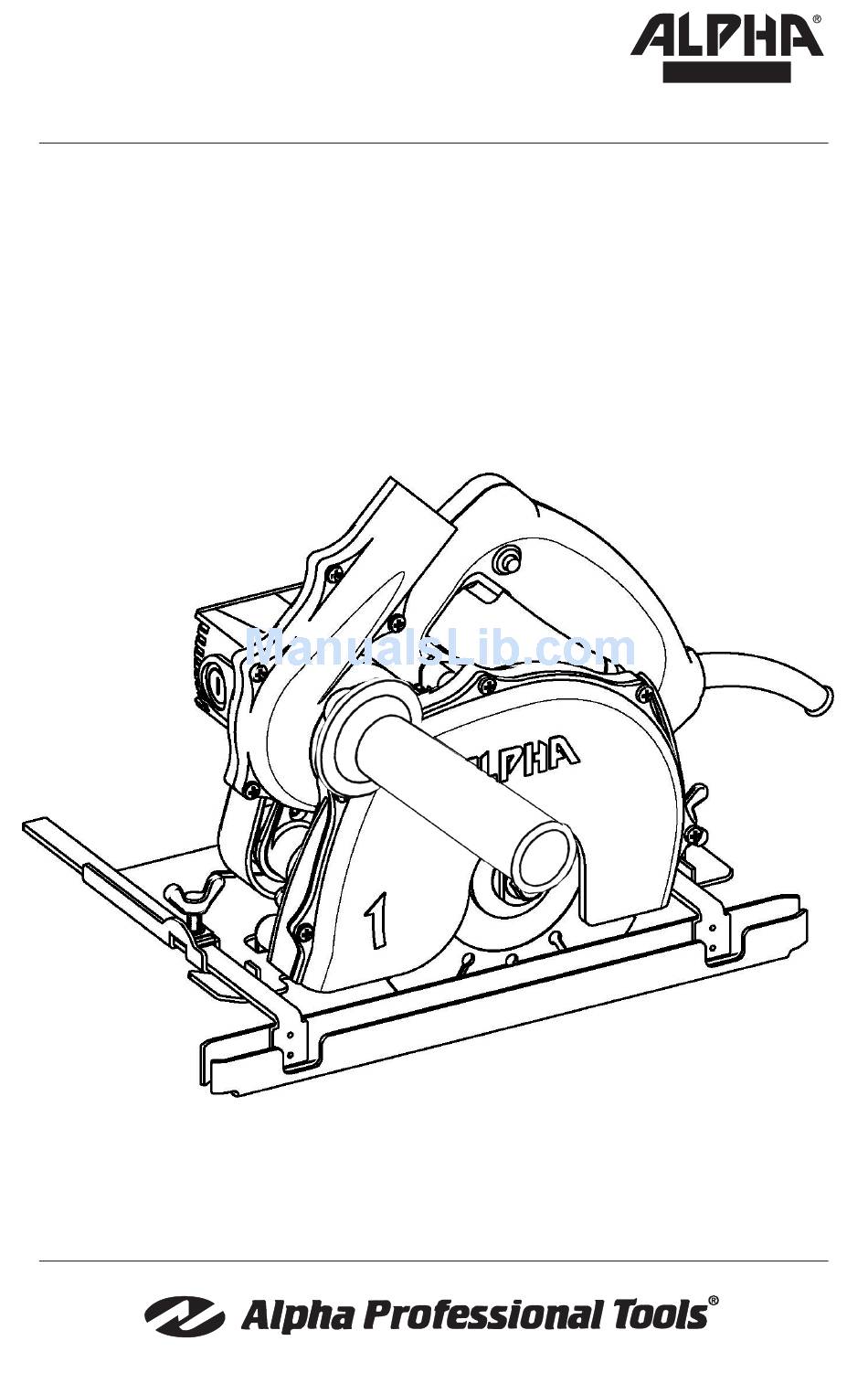

- Page 1 MANUAL Alpha Ecocutter ® Instruction Manual Part No: ECC-125/ECC-225 Version 5 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com...
-
Page 2: Table Of Contents
Inspecting and Cleaning The Belts And Pulleys ..........25 Inner Belt Installation ..................26 Outer Belt Removal ...................27 Outer Belt Installation ..................28 Ecocutter Schematic (ECC-125) ................29 Ecocutter Parts List (ECC-125) ................30 Services and Warranty Information ..............33 Loaner Program ....................33 Need More Information ..................33 Warranty ......................33 EC Declaration Of Conformity ................34... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Alpha Ecocutter Dry Tile Cutting System. Please read this ® instruction manual thoroughly to ensure safe and correct use of the Ecocutter Dry Tile Cut- ting System. Keep this manual in a place where operators can access it easily whenever necessary. - Page 4 Consider work area environment Do not expose power tools to rain. Do not use power tools in damp or wet locations without GFCI protection. Keep work areas well lit. Do not use the tool in presence of flammable liquids or gases. Guard against electric shock Prevent body contact with grounded surfaces.
- Page 5 15. Remove adjusting keys and wrenches Check to see that keys and adjusting wrenches are removed from the tool before turning it on. 16. Avoid unintentional starting Do not carry a plugged-in tool with finger on switch. Be sure the switch is off when plugging in. 17. Outdoor use extension cords When tool is used outdoors, use only extension cords intended for use outdoors and so marked.
-
Page 6: Ecocutter Overview
ECOCUTTER OVERVIEW Power Switch Lock Power Switch Side Cover Breaker TT Ruler Guide Side Handle Flange Assembly Figure-1 SPECIFICATIONS Rating ..................110/220 Volts Amperage ...................11.2/5.5 Power ....................1200W No-load Speed (min ) ............... 12,000 RPM Weight ..................9.5 lbs / 4.3 kg Arbor .................. -
Page 7: Accessories
ACCESSORIES Figure-2 COMPONENTS: Dust Hose (Part No. 133533) Dust Gate w / Anti-back Flow Flap (Part Nos. 133531 / 133530) Side Handle (Part No. 801086) Hexagon Ring Spanner (Part No. 133534) Wrench (Part No. -
Page 8: Ecocutter Operation
ECOCUTTER OPERATION MAIN CONNECTION Connect Ecocutter to a single phase AC current supply and to the main voltage specified on the cutter’s rating plate. SWITCHING ON AND OFF Intermittent use: Switching on: Press switch trigger Switching off: Release switch trigger Continuous use: Switching on: Press the switch trigger and then the locking button; release on/off switch Switching off: Press the switch trigger and then release Locking Button Switch Trigger... -
Page 9: Before Use
The Ecocutter is supplied with an in-line circuit breaker. In the event that the breaker is tripped, push the button to reset. Once you are able to reset the circuit breaker, run the tool in a no load condition allowing air to pass over the motor and cool it down. Reset Button In-line Circuit Breaker Figure-4... -
Page 10: About Double Insulation
4. Inspect the saw blade. – Check if you have a specified blade. – Never use cracked, chipped, or any damaged blades. – Follow the procedures specified in the instruction manual to properly attach applicable accessories. 5. Check the power outlet. – When the plug of the power supply cord is easily pulled out of the power outlet, the outlet should be replaced. -
Page 11: Adjusting The Cutting Depth
ADJUSTING THE CUTTING DEPTH Loosen the wing screw on the depth indicator and move the base plate up or down to the desired cutting depth. Re-tighten the wing screw to a hand tight condition as shown in Figure 5 and Figure 6. Figure-6 Wing Screw Figure-5... -
Page 12: Option A - Guide Below The Base Plate
When cutting, simply keep the ruler in contact with edge of stone or the straight edge while maintaining even cutting pressure to ensure the cuts will be straight. OPTION A - GUIDE BELOW THE BASE PLATE When using the edge of the stone as your guide, install the ruler guide down- ward so that the ruler guide would be below the base plate and the inner side of the ruler guide would follow the edge of the stone. -
Page 13: Ecocutter Dust Hose And Bag Installation
ECOCUTTER DUST HOSE AND BAG INSTALLATION Install back flow preventer assembly to the Ecocutter exhaust port with the dust gate in the upright position as shown in Figure 11. Dust Gate Figure-11 Slide the dust hose onto the dust gate assembly as shown in Figure 12. Figure-12 Dust Hose Check for a tight connection as shown in Figure 13. - Page 14 Slip dust bag over hose end as shown in Figure 14. Figure-14 Dust Bag Secure with hook and loop strap as shown in Figure 15. Figure-15 See Figure 16 for completed dust bag installation. Figure-16...
-
Page 15: Blade Inspection, Installation, And Removal
BLADE INSPECTION, INSTALLATION, AND REMOVAL DANGER! Be sure to unplug the power cord from the outlet before attaching or removing the saw blade from the tool. Accidental starting of the motor may cause bodily injury. WARNING! Be sure to securely tighten the flange assembly and all loose screws before testing the unit. Please allow the saw blade to do the work. Applying excessive force may damage the saw blade and cause premature failure of the bearings and gears. - Page 16 Set the rotation direction of the blade so that it matches the Ecocutter rotation arrow located on the guard as shown in Figure 19. Rotation Direction on Guard Figure-19 Rotation Direction on Blade 4. Slide the blade between the inner flange and guard as shown in Figure 20. Figure-20...
- Page 17 5. Install outer flange and flange bolt as shown in Figure 21. Figure-21 Tighten bolt with the supplied wrenches to a secure condition as shown in Figure 22. Figure-22...
-
Page 18: Ecocutter Maintenance
ECOCUTTER MAINTENANCE DAILY Before daily start-up inspect tool, power cord, circuit breaker assembly, and saw blade looking for chips and cracks. Inspect the dust bag for holes or if it is full and needs to be replaced. If damage has occurred, repair affected areas before use. Turn the unit on to ensure that the fan is running and the dust bag is inflating, a new bag will not inflate until the pores in the material start to fill with stone dust. -
Page 19: Replacing And Checking The Carbon Brushes
REPLACING AND CHECKING THE CARBON BRUSHES In order to keep your tool running correctly, you need to check your carbon brushes after every one hundred hours (100 hrs) of use. Carbon brushes wear out over time based on tool’s usage. If a carbon brush is worn out, it may cause the motor to malfunction or fail to run. The carbon brushes should be replaced when they are worn down to a quarter of an inch (1/4”) in size. - Page 20 Check the carbon brush for wear. Replace if worn down to a 1/4" or if spring is damaged. New Carbon Brush Figure-25 Old Carbon Brush worn down to a quarter of an inch (1/4”). Install new carbon brush with the proper alignment of the brush holder followed by the cap as shown in Figure 26.
- Page 21 Note: If you notice any resistance while tightening the carbon brush cap, it is an indication that the top plate on the carbon brush assembly is sticking inside the brush cap. Continuing to tighten will damage the carbon brush spring. (Go to step 6 to correct this problem) 5.
-
Page 22: Belt Removal And Replacement
Check to see if the two parts move freely by pushing the top plate of the carbon brush into the recess on the bottom of the carbon brush cap and rotate. Top Plate Carbon Brush and Cap Figure-29 If the two parts stick together, replace the carbon brush cap and repeat step 7. If the top plate of the carbon brush sticks in the new cap, you need to replace the carbon brush and repeat step 7. -
Page 23: Testing The Unit For Flow
TESTING THE UNIT FOR FLOW CAUTION! Belts cannot be tested until inner and outer flanges and flange bolt are installed to hold the pulley firmly in place, (otherwise, belt and pulley will fly off of the spindle.) A simple test can be done to see if the fan unit is working correctly. Disconnect the hose and back flow preventer from the tool and place the Ecocutter flat on a table or workbench. Turn the unit on and hold a piece of paper over the exhaust port, the paper should extend and stand up straight when unit is turned on. -
Page 24: Inner Belt Removal
INNER BELT REMOVAL DANGER! Be sure to unplug the power cord from the outlet before assembling or disassembling the tool. Accidental starting of the motor may cause bodily injury. Remove blade. (see section for blade installation and removal) 2. Set outer flange and flange bolt aside. 3. Loosen and remove the five side cover screws (M4x15) and set aside as shown in Figure 31 and Figure 32. -
Page 25: Inspecting And Cleaning The Belts And Pulleys
Remove belt by rotating with an outward pulling motion as shown in Figure 34. Figure-34 Inner Belt INSPECTING AND CLEANING THE BELTS AND PULLEYS With the belt removed you can now check and clean it using a mild detergent. The belt will need to be replaced if it is frayed or showing signs of wear. -
Page 26: Inner Belt Installation
INNER BELT INSTALLATION Install new belt by rotating and pushing outward onto the pulleys as shown in Figure 36. Figure-36 The belt pulley system is self-centering; rotate belt and pulleys together for a few revolutions by hand. CAUTION! Belts cannot be tested until inner and outer flanges and flange bolt are installed to hold the pulley firmly in place, (otherwise, belt and pulley will fly off of the spindle.) 3. -
Page 27: Outer Belt Removal
OUTER BELT REMOVAL DANGER! Be sure to unplug the power cord from the outlet before assembling or disassembling the tool. Accidental starting of the motor may cause bodily injury. Locate outer cover (left front side of the tool) as shown in Figure 38. Loosen the bolt knob and remove outer cover to expose the outer belt as shown in Figure 39. -
Page 28: Outer Belt Installation
OUTER BELT INSTALLATION Before new belt installation; clean the two pulleys and surrounding areas. Belt pulleys must be clean from dirt and grease before new belt installation (to prevent slippage). Install the new belt by rotating and pushing outward onto the pulleys as shown in Figure 42. -
Page 29: Ecocutter Schematic (Ecc-125)
ALPHA ECOCUTTER SCHEMATIC (ECC-125) ® ALPHA ECOCUTTER SCHEMATIC (ECC-125) ® Accessories 71 72... -
Page 30: Ecocutter Parts List (Ecc-125)
ALPHA ECOCUTTER PARTS LIST (ECC-125) ® DRAWING NO. PART NO. DESCRIPTION QUANTITY 133080 Screw M5×40 130031 Self-tapping Screw 3.9 X19 133033 Carbon Brush (2 pc set) 133032 Brush Cap 130618 Block Terminal 133040 Wire Terminal 133086 Cable Clamp 133042 Insulation Pipe... - Page 31 ALPHA ECOCUTTER PARTS LIST (ECC-125) ® DRAWING NO. PART NO. DESCRIPTION QUANTITY 133530 Anti-Back-Flow Flap 133047 Cable Sleeve 133452/133547 Rated Plate 110V/220V 133475/133546 Breaker Assembly (w/cord)110V/220V 133474 Cord (w/o breaker)110V 133533 Dust Hose 133532 Dust Bag Holder 133544 Dust Bag w/Strap 17”x13 1-/2” x12” 133503...
- Page 32 Base Plate Assembly 133072 Spring Washer M6 133535 Wrench (for ECC-125) 133534 Hexagon Ring Spanner 133369 Felt Strip Set 133615 Felt Rings D26.6xD12.5xT2 133616 Dust Shield D43xD23xT0.35 133696 Inner Cover Gasket (for ECC-125) (not shown) 133536 BMC (Blow Mold Case) for ECC-125...
-
Page 33: Services And Warranty Information
® workmanship for a period of 180 days from the date of original retail purchase (proof of purchase required). If Alpha Professional Tools receives notice of such defects ® during the warranty period, our obligation assumed under this warranty is limited to the repair or replacement of parts, without charge. -
Page 34: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Name of Manufacturer: Alpha Professional Tools ® Address of Manufacturer: 103 Bauer Drive Oakland, NJ 07436 Herewith declares that: ELECTRIC HAND TOOL: “Ecocutter” Make: Alpha Professional Tools ® Type: ECC-125/ECC-225 -Does comply with the provisions of the Low Voltage Directive 73/23EEC amended by 93/68 EEC and Machinery Directive 98/37/EC. -
Page 35: Product Registration Card
Note: Serial & Model Number must be included for proper registration. (800) 648-7229 Register online at: www.alpha-tools.com/productregistration.aspx Mail or Fax to: Alpha Professional Tools ® 103 Bauer Drive, Oakland, NJ 07436 Fax: 800-286-0114 Photocopy of product registration form will be accepted. - Page 36 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com Copyright © 2010 Alpha Professional Tools. All rights reserved. 2/28/13...
