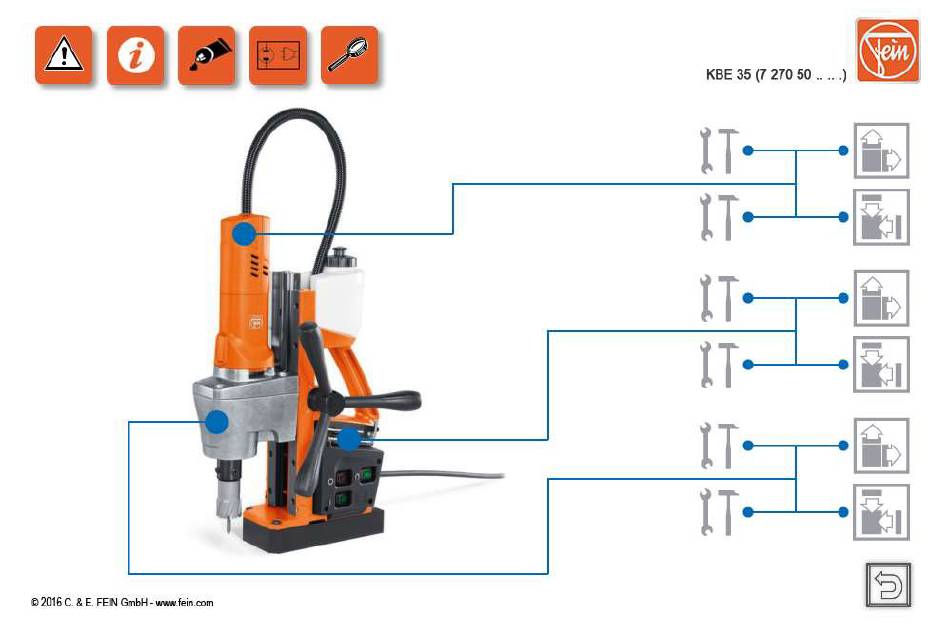

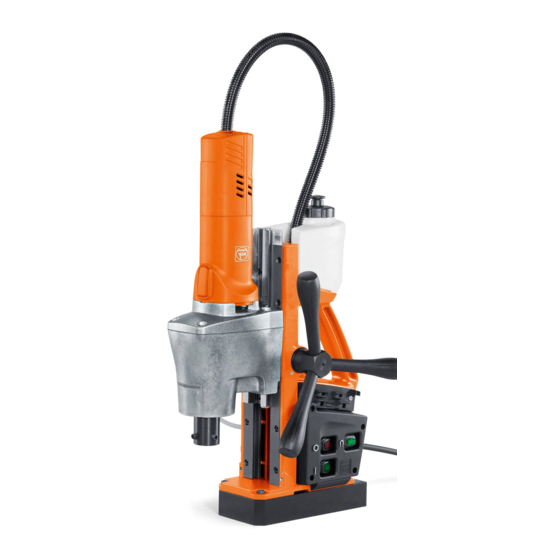

Fein KBE 35 Manual

Hide thumbs Also See for KBE 35:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the KBE 35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fein KBE 35

Summary of Contents for Fein KBE 35

  • Page 2: Technical Data

    All the technical data can be found in the operating instructions for the model. Tests Up-to-date test data and test instructions after repair can be found on the FEIN Extranet (Customer Service → Repair Guides). Lubricants / Auxiliary substances The lubricants or auxiliary substances and their container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →...

  • Page 3: Notes And Requirements

    Outside Germany, the regulations applicable in the relevant country must be observed. C-SC_CSSM Version 1.0 2017-05-02 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 1 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 4 Grease 0 401 18 0300 9 120 g gearbox C-SC_CSSM Version 1.0 2017-05-02 All rights reserved by FEIN, especially in case of industrial rights registration. Page 1 of 1 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 5 KBE 35 Troubleshooting Not yet available. C-SC_CSSM Version 1.0 2017-05-02 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 1 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 6 1. Remove the hose (1) from the hose socket. 2. Remove the container (2). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 7 6. Remove the upper part of the cover (6). 7. Remove the two strands (7). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 8 4. Slide the drill motor (3) out of the guide. C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 9 4. Remove the carbon brush holder (4). 5. Remove the cable (5). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 4 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 10 2. Remove the motor (2). - Socket head wrench, 5 mm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 5 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 11 85 mm outer diameter - Punch, 7 mm diameter C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 6 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 12 5. Remove the sealing ring (5). - Inner puller - Assembly aid C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 7 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 13 - Slotted screwdriver 3. Remove the stator (3). - Plastic hammer C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 8 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 14 - Drawing-off socket cap - Chuck cone, 26 mm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 9 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 15 - Drawing-off socket cap - Chuck cone, 19 mm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 10 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 16 4. Remove the gear wheels (4). 5. Remove the feather key (5). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 3 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 17 4. Press out the grooved ball bearing (4). 10 mm inner diameter 34 mm outer diameter C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 3 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 18 - Drawing-off socket cap - Clamping sleeve, 22 mm diameter C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 3 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 19 6. Unscrew the screw (6). 7. Remove the cable clamping piece (7). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 8 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 20 8. Unscrew the two screws (9) and remove the electronics. C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 8 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 21 - Socket head wrench, 5 mm - PH2 cross-head screwdriver C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 8 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 22 3. Remove the circlip (3). 4. Pull out the connecting cable (4). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 4 of 8 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 23 4. Unscrew the screw (2). 5. Unscrew the flat headed screw (3). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 5 of 8 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 24 - Inner bearing puller, 18-22 mm - Slide hammer C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 6 of 8 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 25 - Socket head wrench, 5 mm 3. Unscrew the three handles (3). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 7 of 8 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 26 2.5 mm; 3 mm 5. Remove the pressure piece (5). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 8 of 8 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 27 ±0.15 Nm 8. Screw in the screw (6) [1.1 Nm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 28 4. Position the disc (4). 5. Coat the shaft with grease. C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 29 26 mm inner diameter 30 mm outer diameter - Circlip pliers C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 30 7. Screw in the screw (4) with the disc [3.0 Nm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 4 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 31 2. Insert the sealing ring (2). 3. Fit the protective hose (3). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 5 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 32 - Torx T20 5. Screw in the screw (4) [1.5 Nm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 6 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 33 3. Connect the cable (3). 4. Connect the cable harness (4). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 7 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 34 ±0.1 Nm 7. Screw in the screw (7) [1.8 Nm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 8 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 35 5. Screw in the screw (4) [1.5 Nm 6. Fit the cover (5). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 9 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 36 9. Screw in the two screws “4x48” (9) [2.0 Nm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 10 of 10 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 37 35 mm outer diameter 105 mm length - Circlip pliers C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 3 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 38 - Sleeve 8 mm inner diameter 22 mm outer diameter C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 3 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 39 4. Fit the two straight pins (4). 5. Position the seal (5). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 3 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 40 - Sleeve 7 mm inner diameter 26 mm outer diameter C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 41 Fitting the armature 1. Position the bearing bush (1). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 42 - 4x round material, diameter 20 mm; length 60 mm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 43 - Socket wrench - Socket wrench insert, 7 mm – ¼” C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 4 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 44  Use new sealing rings for each new fitting. C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 5 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 45 ±0.3 Nm 3. Screw in the four screws (3) [8.0 C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 6 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 46 5. Place the spring (5) on the carbon brush. C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 7 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 47 4. Screw in the flat headed screw (4) [1.2 Nm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 8 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 48 2. Connect the cable on the stator (2). - Circlip pliers 3. Route the cable (3). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 9 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 49 6. Screw in the two screws (6) [1.6 Nm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 10 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 50  At the places where the drill unit moves too fast or too slowly, screw the stud bolts in or out a little further. 2.5 mm C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 11 of 12 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 51 2. Place the hose on the hose socket (2). C-SC_CSSM Version 1.0 2016-05-20 All rights reserved by FEIN, especially in case of property rights applications. Page 12 of 12 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 52: Connection Diagram

    KBE 35 Connection diagram C-SC_CSSM Version 1.0 2017-05-02 Alle Rechte bei FEIN, insbesondere für den Fall der Schutzrechtanmeldung. Seite 1 von 1 Jede Verfügungsbefugnis wie Kopieren und Weitergabe liegt bei FEIN...
