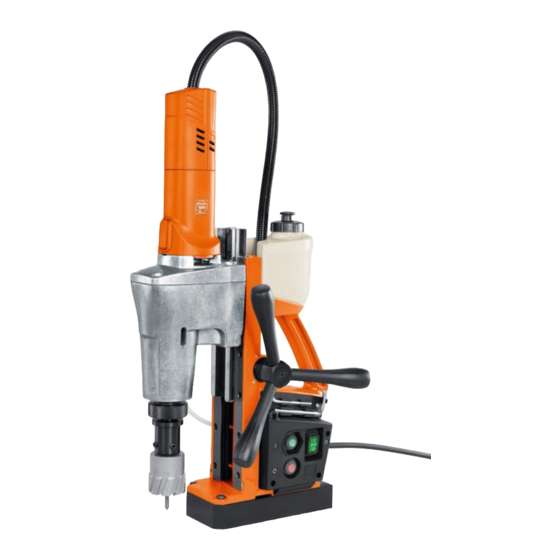

Kernbohren Metall
Repair instructions
Applies to:
KBE 50-2M (A), KBE 50-2M (B), KBE 50-2M (C), KBE 65-2M, KBE 65-2M (A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBE 50-2M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fein KBE 50-2M

Summary of Contents for Fein KBE 50-2M

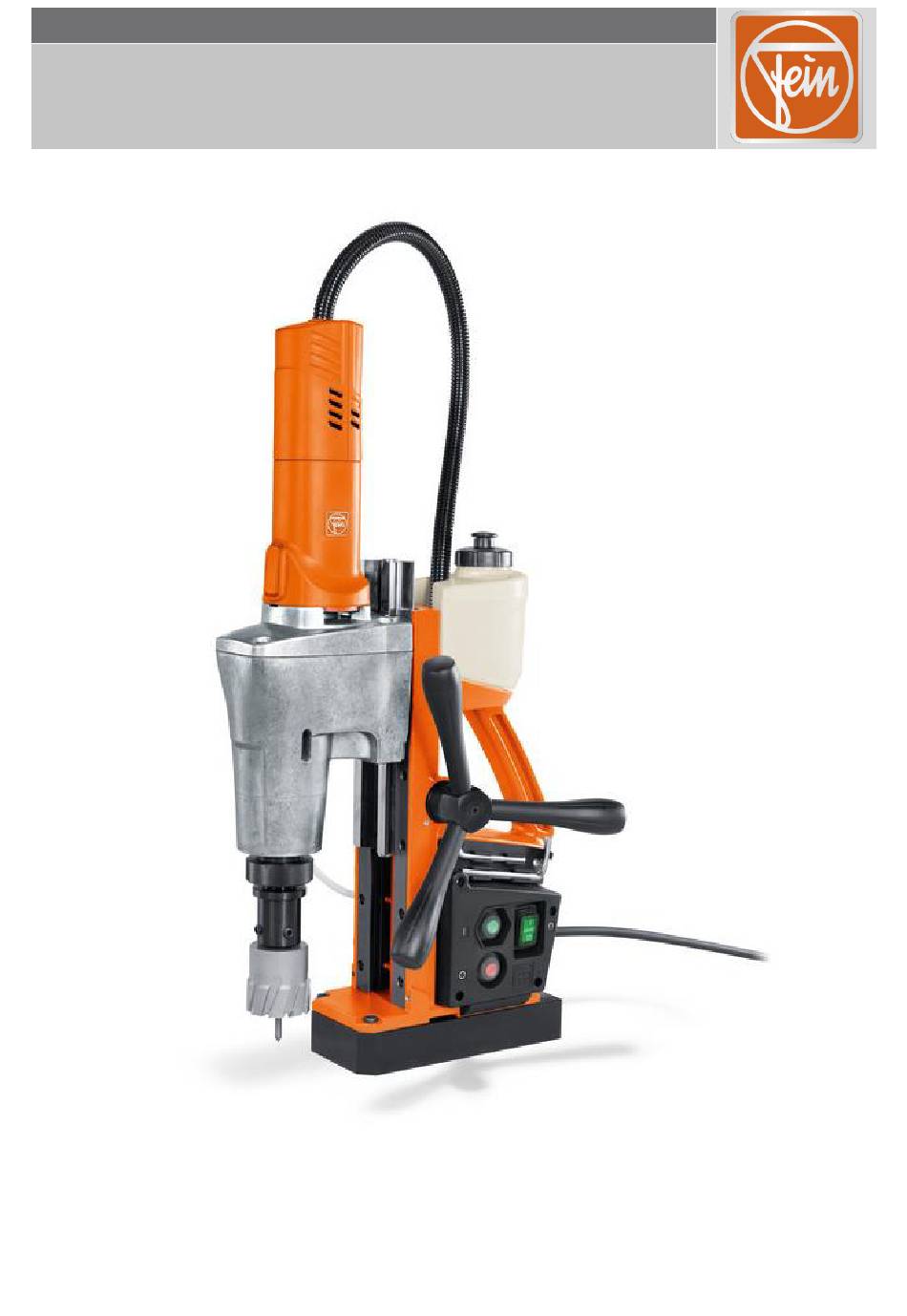

  • Page 1 Kernbohren Metall Repair instructions Applies to: KBE 50-2M (A), KBE 50-2M (B), KBE 50-2M (C), KBE 65-2M, KBE 65-2M (A)

  • Page 2: Table Of Contents

    Removing the control panel ....................37 8.5.2 Disassembling the control panel ..................38 C-SC_CSSM Version 1.0 01.04.2019 Page 2 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 3 Assembling the motor housing ..................75 9.4.2 Assembling the armature....................76 C-SC_CSSM Version 1.0 01.04.2019 Page 3 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 4 Positioning the container ......................88 10 Inspection following repairs ......................89 C-SC_CSSM Version 1.0 01.04.2019 Page 4 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 5: Models Described

    KBE 65-2 M (A) 7 270 83 ..C-SC_CSSM Version 1.0 01.04.2019 Page 5 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 6: Technical Data

    Up-to-date test data for all devices can be found in the FEIN electronic information system. Special tools, lubricants and auxiliary substances The special tools catalogue and the lubricants and container sizes available from FEIN can be found in the FEIN electronic information system.

  • Page 7: Symbols Used

    Part of the navigation interface. C-SC_CSSM Version 1.0 01.04.2019 Page 7 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 8: Notes And Requirements

    C. & E. Fein GmbH assumes no responsibility for the completeness, relevance, quality or correctness of the information provided. Liability claims against C. & E. Fein GmbH that relate to material or immaterial damage caused by the use or failure to use the information provided or by the use of incorrect or incomplete information are excluded.

  • Page 9: Safety Instructions

    Measure that must be taken in order to avoid this danger. C-SC_CSSM Version 1.0 01.04.2019 Page 9 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 10 NFORMATION C-SC_CSSM Version 1.0 01.04.2019 Page 10 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 11: Tools, Lubricants And Auxiliary Substances Required

    42 mm outer diameter Torque wrench with hexagon socket 2.5 mm fixture C-SC_CSSM Version 1.0 01.04.2019 Page 11 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 12: Special Tools

    04013203000 130 g Gearbox Grease 04012803000 Guide, gear rack C-SC_CSSM Version 1.0 01.04.2019 Page 12 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 13: Test And Diagnostics Options

    Test and diagnostics options Test and diagnostics options Currently unavailable. C-SC_CSSM Version 1.0 01.04.2019 Page 13 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 14: Disassembly

    Remove the container (1). Remove the hose (2) from the hose socket. C-SC_CSSM Version 1.0 01.04.2019 Page 14 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 15: Removing The Motor Housing

    Remove the cover (6). Remove the two strands (7). C-SC_CSSM Version 1.0 01.04.2019 Page 15 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 16: Removing The Drill Motor

    Slide the drill motor (3) out of the guide. C-SC_CSSM Version 1.0 01.04.2019 Page 16 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 17: Removing The Carbon Brushes

    Repeat steps 1 to 5 on the opposite side of the machine. C-SC_CSSM Version 1.0 01.04.2019 Page 17 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 18: Removing The Motor Housing

    Unscrew the four screws (1). Remove the motor (2). C-SC_CSSM Version 1.0 01.04.2019 Page 18 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 19: Removing The Intermediate Gear Box

    Unscrew the four screws (1). Remove the intermediate gear box (2). C-SC_CSSM Version 1.0 01.04.2019 Page 19 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 20: Disassembling The Intermediate Gear Box

    Press out the armature (1). Remove the three deep groove ball bearings (2). C-SC_CSSM Version 1.0 01.04.2019 Page 20 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 21: Disassembling The Armature

    Chuck cone, 26 mm, 19 mm Remove the deep groove ball bearing (1). C-SC_CSSM Version 1.0 01.04.2019 Page 21 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 22 Remove the bearing bush (1). Remove the deep groove ball bearing (2). C-SC_CSSM Version 1.0 01.04.2019 Page 22 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 23: Removing The Motor Housing

    Remove the air guide ring (1). Remove the cover (2). Remove the stator (3). C-SC_CSSM Version 1.0 01.04.2019 Page 23 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 24: Disassembling The Gearbox Housing

    Remove the two straight pins (3). Remove the two gearwheels (4). C-SC_CSSM Version 1.0 01.04.2019 Page 24 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 25 Remove the rotary knob (2). Remove the sealing ring (3). C-SC_CSSM Version 1.0 01.04.2019 Page 25 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 26 8.3.1 Removing the gearbox parts Remove the circlip (1). Remove the gearwheel (2). C-SC_CSSM Version 1.0 01.04.2019 Page 26 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 27: Removing The Shaft

    Remove the circlip (1). Remove the feather key (2). C-SC_CSSM Version 1.0 01.04.2019 Page 27 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 28 8.3.2 Removing the shaft Press out the shaft (1). C-SC_CSSM Version 1.0 01.04.2019 Page 28 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 29: Disassembling The Shaft

    Press the deep groove ball bearing (2) off the shaft. C-SC_CSSM Version 1.0 01.04.2019 Page 29 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 30: Disassembling The Gearbox Parts

    Punch, 7 mm Remove the two deep groove ball bearings (1). C-SC_CSSM Version 1.0 01.04.2019 Page 30 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 31 Remove the three sealing rings (2). Remove the circlip (3). C-SC_CSSM Version 1.0 01.04.2019 Page 31 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 32 Remove the feather key (2). Press the gearwheel (3) off the shaft. C-SC_CSSM Version 1.0 01.04.2019 Page 32 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 33: Disassembling The Drill Chuck

    Unscrew the nut (1) [left-hand thread]. Turn the shaft into position (2). C-SC_CSSM Version 1.0 01.04.2019 Page 33 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 34 8.4.1 Disassembling the mounting shaft Remove the shaft (1). C-SC_CSSM Version 1.0 01.04.2019 Page 34 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 35: Disassembling The Shaft

    Remove the disc (5). Remove the spiral spring with sleeve (6). C-SC_CSSM Version 1.0 01.04.2019 Page 35 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 36 8.4.2 Disassembling the shaft Remove the spiral spring (1). C-SC_CSSM Version 1.0 01.04.2019 Page 36 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 37: Disassembling The Drill Jig

    Press and hold the lock (5) on the plug. Pull off the plug. C-SC_CSSM Version 1.0 01.04.2019 Page 37 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 38: Disassembling The Control Panel

    Remove the two buttons (1). Remove the switch (2). C-SC_CSSM Version 1.0 01.04.2019 Page 38 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 39: Removing The Electronics

    Disconnect the cable (4). Remove the cover (5) with the electronics. C-SC_CSSM Version 1.0 01.04.2019 Page 39 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 40: Disassembling The Electronics

    Unscrew the two screws (2). Remove the electronics (3). C-SC_CSSM Version 1.0 01.04.2019 Page 40 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 41: Disassembling The Mains Cable

    Unscrew the screw (2). Remove the cable clamp (3). C-SC_CSSM Version 1.0 01.04.2019 Page 41 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 42: Removing The Magnetic Base

    Remove the magnetic base (3). Photo shows similar product C-SC_CSSM Version 1.0 01.04.2019 Page 42 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 43: Disassembling The Magnetic Base

    PH2 cross-head screwdriver Unscrew the screw (1). Remove the cable (2). C-SC_CSSM Version 1.0 01.04.2019 Page 43 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 44: Removing The Protective Hose

    Photo shows similar product Remove the sealing ring (2). C-SC_CSSM Version 1.0 01.04.2019 Page 44 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 45: Disassembling The Protective Hose

    Remove the connecting cable (2). Photo shows similar product C-SC_CSSM Version 1.0 01.04.2019 Page 45 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 46: Removing The Guide

    Unscrew the screw (2). Unscrew the flat-head screw (3). C-SC_CSSM Version 1.0 01.04.2019 Page 46 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 47 Remove the leaf spring (2). Unscrew the six set screws (3). C-SC_CSSM Version 1.0 01.04.2019 Page 47 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 48 Remove the two guide rails. Remove the pressure piece (2). C-SC_CSSM Version 1.0 01.04.2019 Page 48 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 49: Removing The Spider

    Repeat step 3 on the opposite side of the machine. C-SC_CSSM Version 1.0 01.04.2019 Page 49 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 50: Disassembling The Spider

    Remove the scale (3). Unscrew the three handles (4). C-SC_CSSM Version 1.0 01.04.2019 Page 50 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 51: Assembly

    Position the disc (4). Coat the shaft with grease. C-SC_CSSM Version 1.0 01.04.2019 Page 51 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 52: Positioning The Spider

    Repeat step 1 on the opposite side of the machine. Position the spider (2). Position the circlip (3). C-SC_CSSM Version 1.0 01.04.2019 Page 52 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 53: Positioning The Guide

    Unscrew the twelve screws (2). Remove the two guide rails. C-SC_CSSM Version 1.0 01.04.2019 Page 53 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 54 Screw in the screw (3) [1.1 Nm ±0.15 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 54 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 55 Screw in the screw (4) [3.0 Nm ±0.3 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 55 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 56: Assembling The Protective Hose

    Position the connecting cable (1). Photo shows similar product Position the circlip (2). C-SC_CSSM Version 1.0 01.04.2019 Page 56 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 57: Positioning The Protective Hose

    Position the protective hose (2). Photo shows similar product C-SC_CSSM Version 1.0 01.04.2019 Page 57 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 58: Assembling The Magnetic Base

    Screw in the screw (2) [1.5 Nm ±0.2 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 58 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 59: Positioning The Magnetic Base

    Screw in the screw (3) [1.5 Nm ±0.2 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 59 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 60: Assembling The Electronics

    Connect the two cables (3) as shown in the connection diagram. C-SC_CSSM Version 1.0 01.04.2019 Page 60 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 61: Positioning The Electronics

    Screw in the screw (8) [1.8 Nm ±0.1 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 61 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 62 Assembly 9.1.9 Positioning the electronics Position the cover (1). C-SC_CSSM Version 1.0 01.04.2019 Page 62 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 63: Assembling The Control Panel

    Position the two buttons (1). Position the switch (2). C-SC_CSSM Version 1.0 01.04.2019 Page 63 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 64: Positioning The Control Panel

    Screw in the two screws [4x48] (7) [2.0±0.3 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 64 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 65: Assembling The Drill Chuck

    Press in the circlip (5). NFORMATION The circlip (5) clicks audibly into place. C-SC_CSSM Version 1.0 01.04.2019 Page 65 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 66 Position the nut (2) on the shaft. Position the circlip (3). C-SC_CSSM Version 1.0 01.04.2019 Page 66 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 67: Assembling The Mounting Shaft

    Position the shaft (1). Screw in the nut (2) [left-hand thread]. C-SC_CSSM Version 1.0 01.04.2019 Page 67 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 68: Assembling The Gearbox Housing

    Position the feather key (1). Position the gearwheel (2). C-SC_CSSM Version 1.0 01.04.2019 Page 68 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 69 Coat the three sealing rings (5) with oil. Position the three sealing rings (5). C-SC_CSSM Version 1.0 01.04.2019 Page 69 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 70 Press in the two deep groove ball bearings (1). C-SC_CSSM Version 1.0 01.04.2019 Page 70 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 71: Assembling The Shaft

    Press on the deep groove ball bearing (1). Position the circlip (2). C-SC_CSSM Version 1.0 01.04.2019 Page 71 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 72: Positioning The Shaft

    Position the circlip (2). Position the feather key (3). C-SC_CSSM Version 1.0 01.04.2019 Page 72 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 73: Positioning The Gearbox Parts

    Coat the sealing ring (3) with oil. Position the sealing ring (3). C-SC_CSSM Version 1.0 01.04.2019 Page 73 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 74 Position the seal (5). Fill the gearbox with 130 g of grease. C-SC_CSSM Version 1.0 01.04.2019 Page 74 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 75: Assembling The Motor Housing

    Position the cover (2). Position the air guide ring (3). C-SC_CSSM Version 1.0 01.04.2019 Page 75 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 76: Assembling The Armature

    Press on the deep groove ball bearing (1). Position the plate (2). C-SC_CSSM Version 1.0 01.04.2019 Page 76 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 77 Press on the deep groove ball bearing (1). Press on the sealing ring (2). C-SC_CSSM Version 1.0 01.04.2019 Page 77 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 78 Position the sealing ring (1). Position the bearing bush (2). C-SC_CSSM Version 1.0 01.04.2019 Page 78 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 79: Assembling The Intermediate Gear Box

    Note the position of the plate (3). Press in the armature (2). C-SC_CSSM Version 1.0 01.04.2019 Page 79 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 80: Positioning The Intermediate Gear Box

    Screw in the four screws with sealing rings (2). [1.8±0.1 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 80 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 81: Positioning The Motor Housing

    Screw in the four screws (2) [8.0 Nm ±0.3 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 81 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 82: Positioning The Carbon Brushes

    Repeat steps 1 to 5 on the opposite side of the machine. C-SC_CSSM Version 1.0 01.04.2019 Page 82 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 83: Positioning The Drill Motor

    Do not place hands under the drill motor (2). Slide the drill motor (2) into the guide. C-SC_CSSM Version 1.0 01.04.2019 Page 83 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 84 Screw in the flat-head screw (2) [1.2 Nm ±0.15 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 84 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 85: Positioning The Connecting Cable

    Screw in the screw (6) [1.6 Nm ±0.25 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 85 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 86 Screw in the two screws (2) [1.6 Nm ±0.25 Nm]. C-SC_CSSM Version 1.0 01.04.2019 Page 86 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 87: Setting The Guide

    Photo shows similar product C-SC_CSSM Version 1.0 01.04.2019 Page 87 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 88: Positioning The Container

    Position the container (1). Place the hose on the hose socket (2). C-SC_CSSM Version 1.0 01.04.2019 Page 88 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 89: Inspection Following Repairs

    Check magnetic holding force If restart lock present: Check restart lock C-SC_CSSM Version 1.0 01.04.2019 Page 89 of 89 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
