SCHEME 16/17

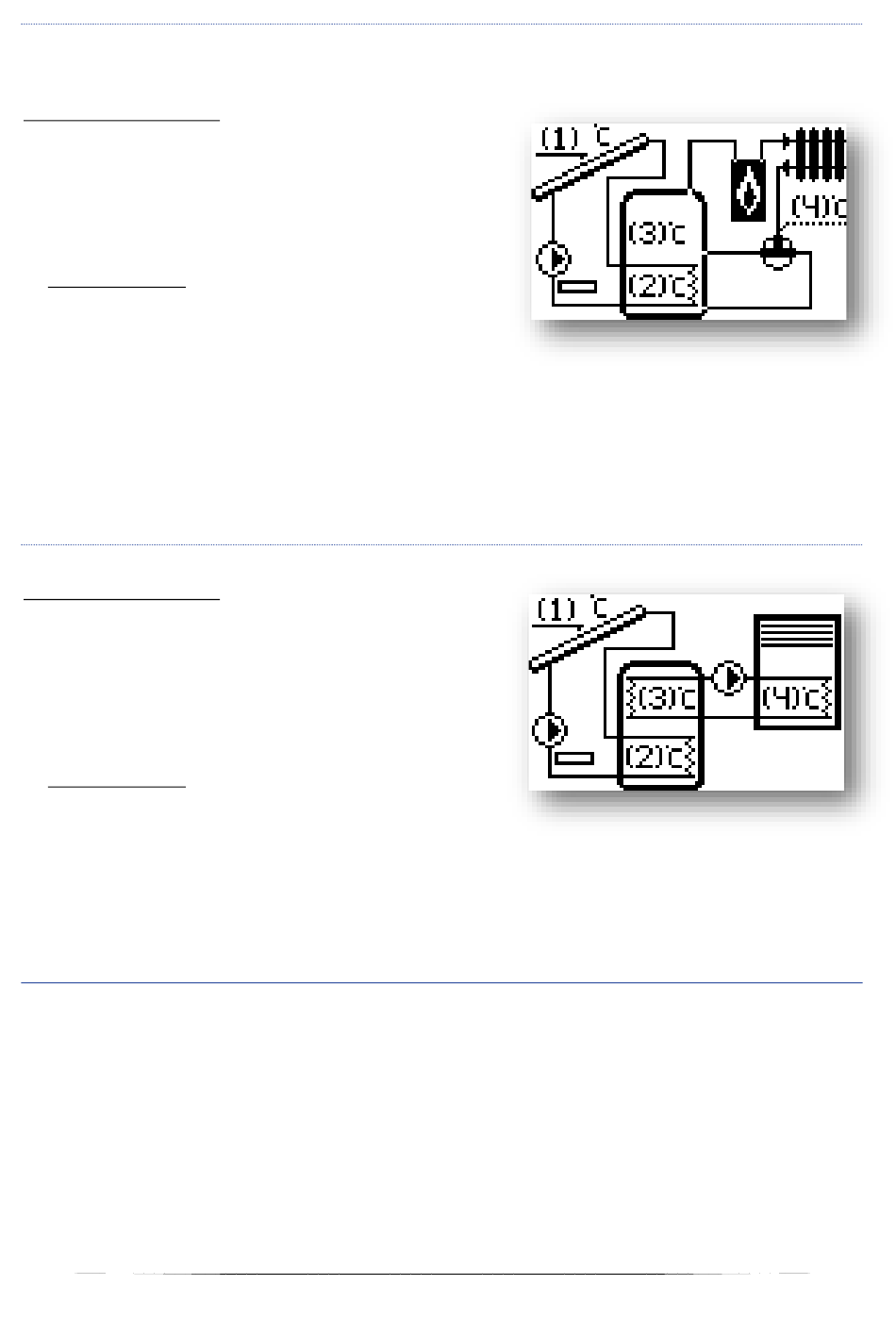

Installation 16/17 supports:
➔
collector pump
➔
switching valve
➔
solar accumulation tank
➔
one direction of collector positioning
➔
additional peripherals.
Installation sensors:
➔
collector sensor
➔
two sensors of accumulation tank
➔
valve sensor
This system enables the user to control CH return valve to the accumulation tank. The valve switches from upper tank
circulation to lower tank circulation
Additional parameters to be configured:
•
valve delta
SCHEME 17/17
Installation 17/17 supports:
➔
collector pump,
➔
tank -receiver pump
➔
solar accumulation tank
➔
heat receiver
➔
one direction of collector positioning
➔
additional peripherals.
Installation sensors:
➔
collector sensor
➔
two sensors of accumulation tank
➔
heat receiver sensor
Additional parameters to be configured ( additional submenu in service menu):
•
Heat receiver: maximum receiver temperature, receiver activation temperature, heat receiver hysteresis.
3.2.

ACCMULATION TANK

This menu enables the user to adjust all the parameters related to the tank (heat accumulator
•
Pre-set temperature – this function is used to adjust the pre-set tank temperature. After reaching this
temperature the collector pump is deactivated.
•
Maximum temperature of tank 1 - using this option, the user may declare the maximum acceptable safe
temperature value which the tank can reach in case of collector overheat.
If the collector reaches its alarm temperature (overheat), the pump is activated automatically in order to cool
down the heated collector, regardless of the pre-set temperature. The pump operates until the tank maximum
.
18
).
